The Lowara Smart Pump (eSM) range is an integrated intelligent pumping system with an electronically driven, permanent magnet motor. The e-SM Series is flexible, precise and more compact than ever.

Designed to plug and play, this series is all about the right combination of motor, variable speed drive and pump. It is easy to install and commission in both new and retrofit applications.

The e-SM Series Smart Pumps can connect with up to three pumps at once with no need for an external control panel. It features state-of-the-art technology to optimise performance, communicate with other building systems, reduce energy usage and dramatically decrease operational costs.

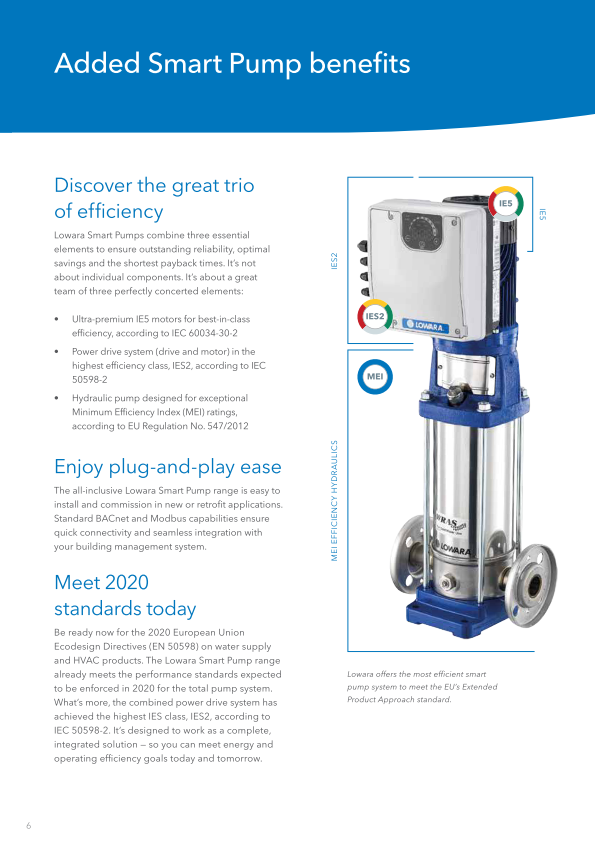

The Smart Pump Range has an IE5 "Ultra Premium Efficiency" Motor and an IES2 "Best in Class" Pump and Drive combined rating. This combination can lead to up to a 50% savings in operating cost when compared to a similar standard non VSD pump.

The Smart Pump Range is an evolving pump range.

Specifications:

• Voltage: 240V to 415V
• Power: up to 2.2 kW
• Multipump capability: up to 3 units
• Power supply: single phase and three phase 50 Hz
• Comms: BACnet and Modbus standard in single pumps
• IES2 package with IE5 motors
• Enclosure rate: IP55
• Ambient temperature: -20°C / +50°C full power
• EMC: C1-category compliant with EN 61800-3 for residential environment
• Harmonics: compliant with IEC/EN 61000-3-2

Applications

• Water Supply Systems
• Water Treatment Plants
• Irrigation Systems
• Booster Systems

Materials

• 304 Stainless Steel Casing
• 304 Stainless Steel Impellers
• 304 Stainless Steel Diffusers
• Sic/Sic Mechanical Seal

Market Sectors:

• Residential
• Light Industrial
• Commerical
• Irrigation

Product Features

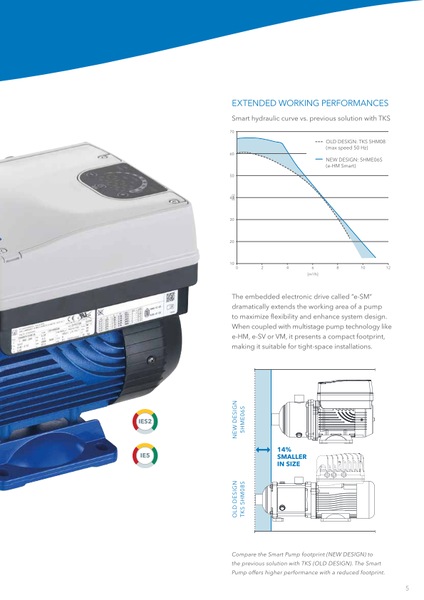

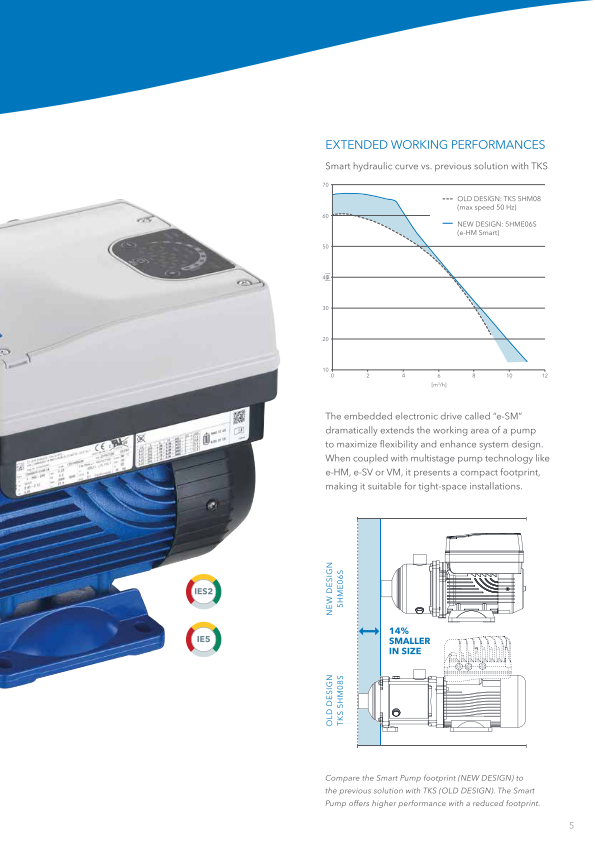

• 14% smaller in size
• Harmonic Filters built in
• Electromagnetic Filters built in
• Intuitive interface and integrated control panel
• Low operating costs
• Easy to Install

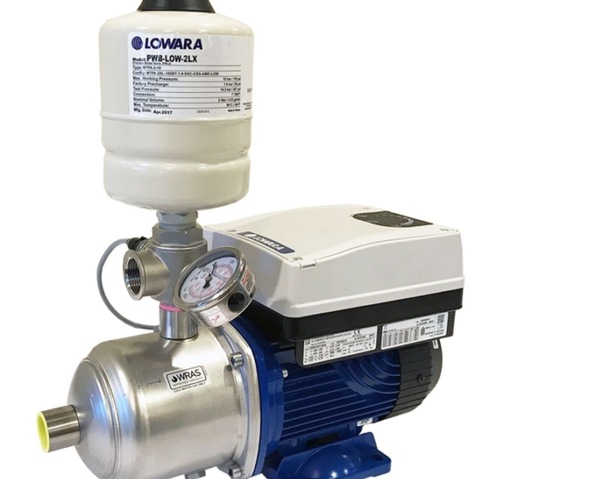

The product image shown is for illustration purpose only
