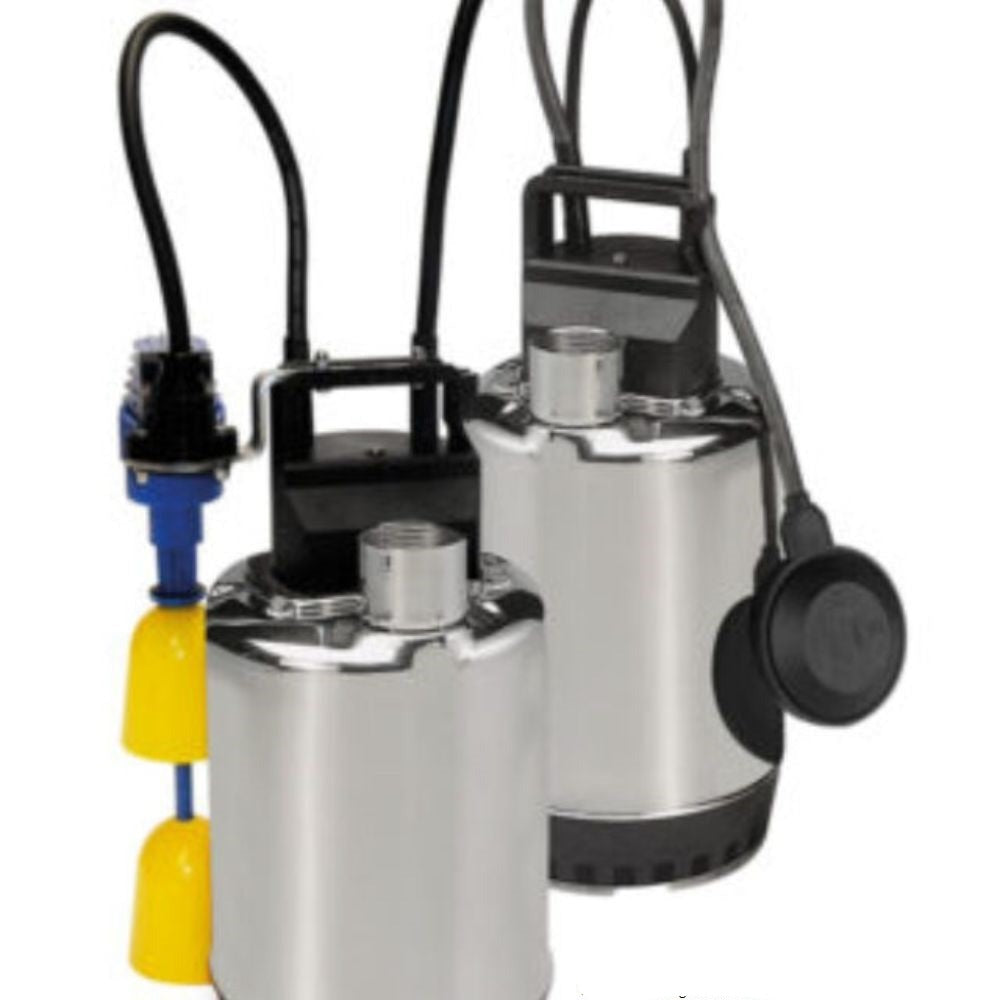

The Lowara DOC Series submersible pumps are corrosion-resistant and compact, they are available in three versions with channel or Vortex impellers. Supplied with or without float switch. Built-in capacitor. The motor is cooled by the pumped liquid and thermal overload protection to protect the pump in case of overheating.

Residential drainage pumps that are equipped with a magnetic float switch which allows the installation in the narrowest spaces preventing clogging issues, offering better reliability than previous generation models.

The DOC GW will entirely replace the current DOC GT ranges.

Specifications:

• Delivery: up to 14m³/h
• Head: up to 11m
• Power supply: three-phase and single-phase 50 and 60 Hz
• Power: 0.25 kW to 0.55 kW
• Maximum immersion depth: 5m
• Temperature of pumped liquid: 0°C to 40°C
• Liquids with suspended solids: up to 20mm
• Insulation class: B
• Protection: IP68
• Length of cable: 10m

   Applications

• Emptying of residential sump pits, rain water tanks
• Emptying of tanks or reservoirs
• Emergency draining of flooded areas or rooms
• Treated effluent transfer (VX Model only)

Materials

• Pump body: Noryl
• Suction screen: Noryl
• Handle: Noryl
• Upper support: Noryl
• Impeller: Noryl
• Outer sleeve: Stainless steel
• Motor casing: Stainless steel
• Lower cover: Stainless steel
• Screws and tie-rods: Stainless steel
• Shaft extension: Stainless steel
• Elastomers: NBR

Market Sectors:

• Residential
• Light Commercial
• Packaged Water Treatment

The product image shown is for illustration purpose only
