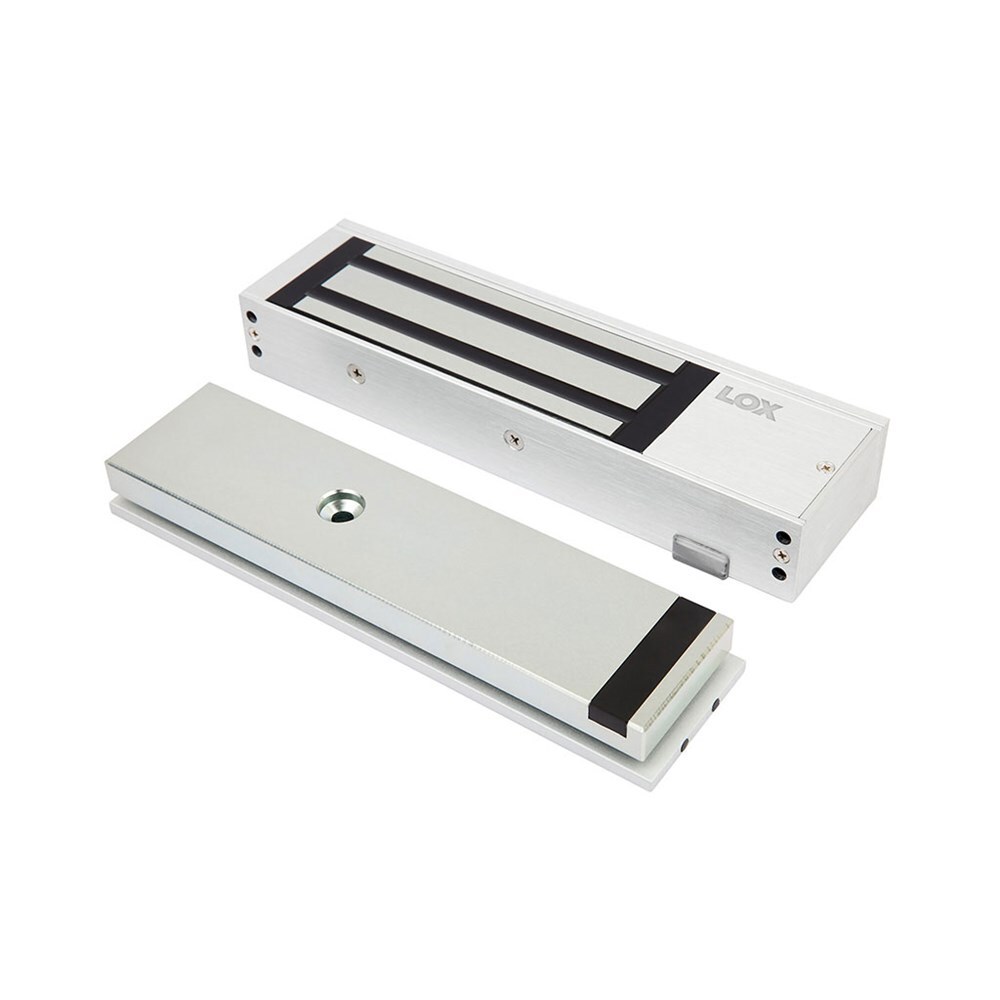

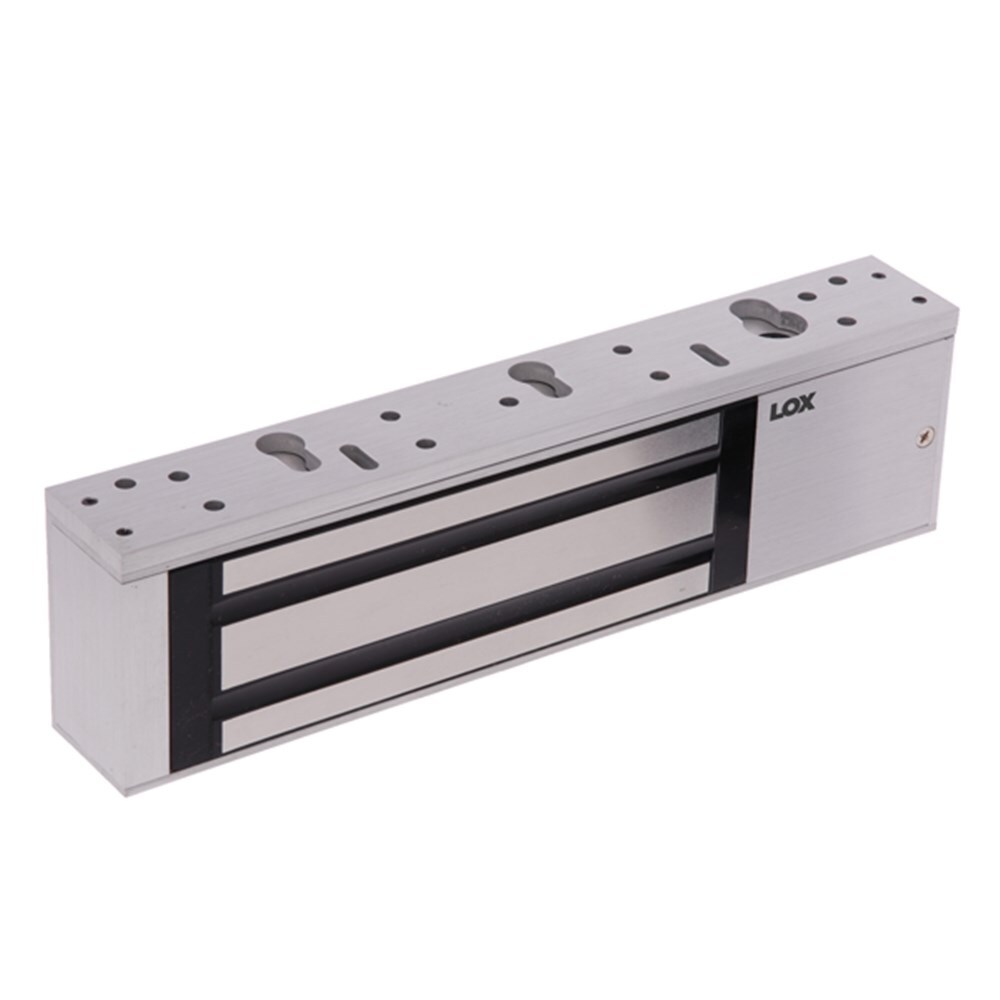

LOX Electro Magnetic Lock 580kg Single Door Monitored with Anti-Tamper Plate
EM5700M

Electro Magnetic Lock is commonly used in access control systems for secure entry and exit points.

Electro Magnetic Lock Function - uses electromagnetic force to securely hold a door closed, ensuring controlled access and enhanced security.

Features:

• A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
• A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
• Highly visible red/green LED Status Light
• Anti-Tamper-Fixing-Plate (with monitored version) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
• Monitored, door status sensor, lock status sensor
• MOV surge protection
• 4 hour fire rating
• Long distance light panel.
• Guaranteed no residual magnetism.
• Monitored versions supplied with anti tamper plate.

Specifications:

• Dual Voltage: 12V DC @ 500mA, 24V DC @ 260mA.
• Holding Force: Up to 580kgs.
• Material:
  • Satin anodised aluminium housing
  • Zinc plated electromagnetic body
• Magnet Size:
  • Length: 268mm
  • Heigth: 73mm
  • Depth: 40mm
• Armature Plates:
  • Length: 190mm
  • Heigth: 61mm
  • Depth: 16mm
