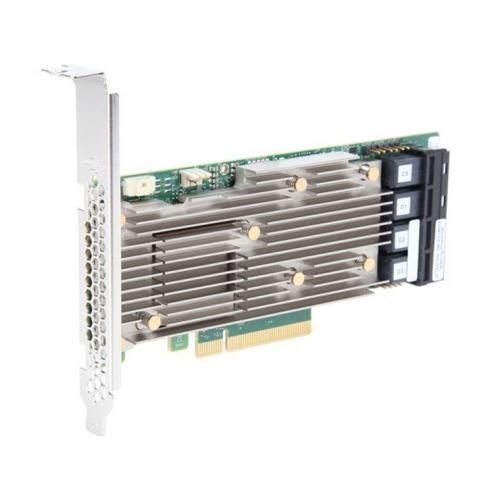

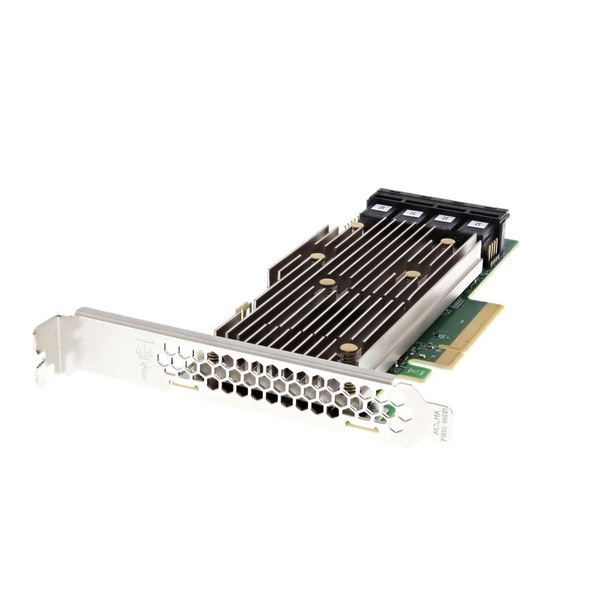

LSI Broadcom 9460-16i MegaRAID Tri-Mode Storage Adapter, 4GB Cache, 16 Internal Ports, PCIe

MegaRAID 9460-16i
Enable maximum data center flexibility with Tri-Mode connectivity and NVMe performance benefits
Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection, flexibility and performance today’s applications and end users demand. The MegaRAID 9460-16i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of high-end server storage applications.
Broadcom’s Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.
- Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller
- Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Support critical, high-bandwidth applications with PCIe® 3.1 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with CacheVault® flash cache protection

Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Cache Protection
CacheVault CVPM05
Physical Dimensions
Low profile 6.127” x 2.712”
Host Bus Type
x8 lane PCI Express® 3.1
Cache Memory
4GB 2133 MHz DDR4 SDRAM
Internal Ports
16
Devices Supported
SAS/SATA: 240, NVMe: 24
Internal Connectors
4 Mini-SAS HD x4 SFF-8643
Operating Temperature
0°C to 55°C
Operating Voltage (V)
+12V +/-8%, 3.3V +/-9%
OS
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
I/O Processor / SAS Controller
SAS3516 dual-core RAID-on-Chip (ROC)

GTIN: 830343003600

Reference ID: 5614947
