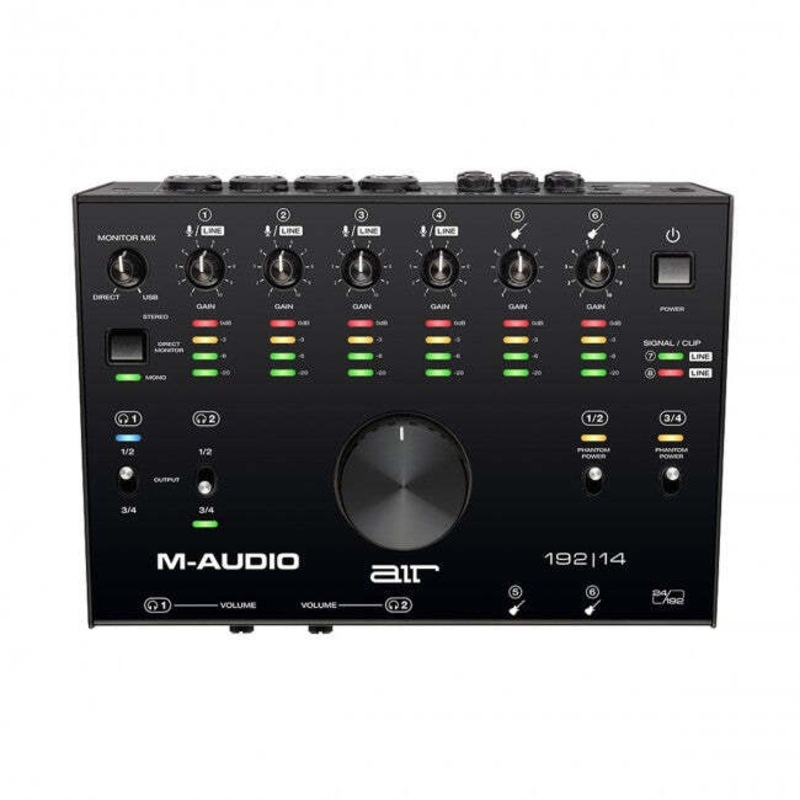

Conquer any recording session with professional studio quality and features!The M-Audio AIR 192|14 is an 8-in 4-out feature-packed USB audio/MIDI interface that provides all of the connections and software you need to easily create professional 24-bit/192kHz studio-quality recordings. The AIR 192|14 features (4) XLR+¼ TRS combo inputs, (2) ¼ line inputs and (2) ¼ instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of your guitar or bass when plugged directly into the interface. There is also MIDI input and output connections so you can connect any external midi gear that you may have such as external sequencers, drum machines and controllers.
When recording, you want to focus on capturing that perfect moment, and getting the best performance out of your artist and talent. You dont want to be bogged down by clicks, pops or latency. The AIR 192|14 not only features a high-speed USB connection for providing the lowest round trip latency (2.59ms*) between your machine and your hardware, but it also features monitor mix control for listening directly to the source inputs, providing you with zero-latency technology.
The AIR 192|14 features 8 inputs for simultaneously recording up to 8 channels at once to meet all your studios recording needs. The (4) dedicated XLR/TRS Mic/Line combo inputs with Crystal Preamps and phantom power are perfect for recording a vocals, micing up an acoustic guitar, vintage guitar or bass amp or the core elements of a drum kit. The (2) ¼ dedicated Instrument inputs use specially designed to provide the cleanest signal from your guitar, bass or keyboard, while the (2) ¼ dedicated Line inputs provide a pure uncolored signal for connecting a tube preamp, keyboard, synth or mixer, and MIDI input and output for connecting any of your boutique synth gear.
Software Included
Ableton Live Lite
Creative FX Collection
Xpand!2
Mini Grand
Touch Loops
Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects
MPC Beats
3 Virtual Instruments - TubeSynth, Electric, Bassline
80 FX Plugins - AIR Channel Strip, Half Time
2GB of factory content with bonus F9 instruments library
Specifications
Mic Inputs 1-4 (balanced XLR)
FREQUENCY RESPONSE
20 Hz 20 kHz (+/-0.2 dB)
DYNAMIC RANGE
113 dB (A-weighted)
THD+N
0.003%
PREAMP EIN
-137 dBu (40 ? source, A-weighted) -129 dBu (150 ? source, unweighted)
MAX INPUT LEVEL
+14 dBu
GAIN RANGE
62 dB
Line Inputs 1-4 (balanced 1/4" [6.35 mm] TRS)
FREQUENCY RESPONSE
20 Hz 20 kHz (+/-0.1 dB)
DYNAMIC RANGE
113 dB (A-weighted)
THD+N
0.001% (1 kHz, +4 dBu, -1 dBFS)
MAX INPUT LEVEL
+30 dBu
GAIN RANGE
61 dB
Inst Inputs 5-6 (unbalanced 1/4" [6.35 mm] TS)
FREQUENCY RESPONSE
20 Hz 20 kHz (+/-0.1 dB)
DYNAMIC RANGE
110 dB (A-weighted)
THD+N
0.001% (1 kHz, +4 dBu, -1 dBFS)
MAX INPUT LEVEL
+16 dBu
INPUT IMPEDANCE
~1 M?
GAIN RANGE
59 dB
Fixed Line Inputs 78 (balanced 1/4" TRS)
DYNAMIC RANGE
113 dB (A-weighted)
THD+N
0.001% (1 kHz, +4 dBu, -1 dBFS)
FREQUENCY RESPONSE
20 Hz 20 kHz (+/-0.1 dB)
MAX INPUT LEVEL
+17 dBu
Line Outputs 12 (balanced 1/4" TRS)
DYNAMIC RANGE
112 dB (A-weighted)
THD+N
0.002% (1 kHz, -1 dBFS)
FREQUENCY RESPONSE
20 Hz 20 kHz (+/-0.2 dB)
MAXIMUM OUTPUT LEVEL
+17 dBu
Fixed Line Outputs 34 (balanced 1/4" TRS)
DYNAMIC RANGE
113 dB (A-weighted)
THD+N
0.002% (1 kHz, -1 dBFS)
FREQUENCY RESPONSE
20 Hz 20 kHz (+/-0.2 dB)
MAXIMUM OUTPUT LEVEL
+17 dBu
Headphone Outputs (stereo 1/4")
DYNAMIC RANGE
111 dB (A-weighted, 32 ? load)
THD+N
0.002% (1 kHz, -1 dBFS, 10 mW/channel into 32 ? load)
FREQUENCY RESPONSE
20 Hz 20 kHz (+/-0.2 dB)
MAXIMUM POWER DELIVERED
160mW (<1% THD, 32 ? load)
MAXIMUM OUTPUT LEVEL
+15 dBu (unloaded)
IMPEDANCE RANGE
32 ? 600 ?
General
OTHER CONNECTORS
(1) 1/8 (3.5 mm) MIDI input(1) 1/8 (3.5 mm) MIDI output(1) USB Type-C port(1) Power adapter input
DIMENSIONS (WIDTH X DEPTH X HEIGHT)
10.2" x 7.3" x 3.6" (25.9 x 18.6 x 9.1 cm)
WEIGHT
3.9 lbs. 1.8 kg
