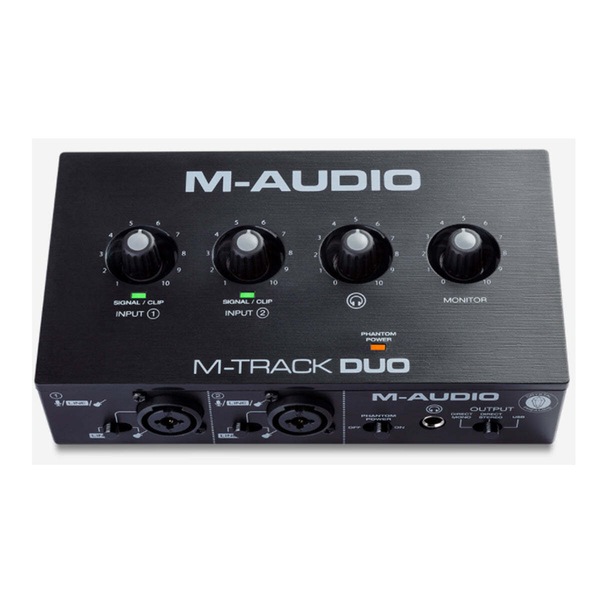

M-Track Duo
48-KHz, 2-channel USB Audio Interface with 2 Combo Inputs with Crystal Preamps, and Phantom Power
The M-Track Duo is the best, most portable recording interface in its class. It delivers 24-bit/48 kHz audio resolution in a compact and easy to use format that is ideal for creating music on any Mac, PC or iOS device. This versatile interface works great for recording any type of sound source and features two Combo Crystal Preamps with phantom power, making it compatible with any microphone. Plus, there is a dedicated switch to choose either a line level or instrument level input, perfect for connecting digital pianos, drum machines or any other stereo ¼” inch line level device, as well as the best possible signal for DI guitar or bass. M-track Duo is completely powered by USB, which makes it portable and perfect for anyone on-the-go. Throw it into your bag, grab a laptop, and create your next podcast, song, or mix, anywhere you want!
Direct Monitoring & Headphone Connection
M-Track Duo offers zero-latency monitoring of the mic, line or instrument input signal through both the main stereo 1/4/’ outputs and stereo1/4” headphone output. The USB/Direct switch adjusts the balance between the direct inputs and the playback from your computer software. This makes it easy to record new parts or add parts to an existing composition.
Start Recording Immediately
The M-Track Duo comes with a complete software package that has everything to get you started right out of the box. Included are 2 great Pro Tools | First M-Audio Edition and MPC Beats. These DAWs make it easy and fun to create professional sounding podcasts, music, or pro sounding beat productions on any Mac or PC.
Software Included
MPC Beats
• 3 Virtual Instruments - TubeSynth, Electric, Bassline
• 80 FX Plugins - AIR Channel Strip, Half Time
• 2GB of factory content with bonus F9 instruments library
Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects
Specifications
Mic Input (balanced XLR)
Frequency Response
20 Hz – 20 kHz (+0.1 dB)
Signal-to-Noise Ratio
109 dB (A-weighted)
THD+N
0.003% (min. gain, 0 dBu out, A-weighted)
Preamp EIN
-128 dBu (max. gain, 40 ? source, A-weighted)
Gain Range
Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB
Line Input (balanced 1/4" [6.35 mm] TRS)
Frequency Response
20 Hz – 20 kHz (+0.1 dB)
Sensitivity
-43 dBu
THD
0.002% (min. gain, 0 dBu out, A-weighted)
Gain Range
Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB
Instrument Input (unbalanced 1/4" [6.35 mm] TS)
Frequency Response
20 Hz – 20 kHz (+0.1 dB)
THD+N
0.005% (min. gain, 0 dBu out, A-weighted)
Input Impedance
1 M?
Gain Range
Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB
Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)
Frequency Response
20 Hz – 20 kHz (+0.1 dB)
Signal-to-Noise Ratio
109 dB (A-weighted)
THD
0.002% (0 dBu out, A-weighted)
Max Output Level
+4 dBu
Headphone Output (1/4” [6.35 mm] TRS)
Power
60 mW/Ch, 32 ?
Frequency Response
20 Hz – 20 kHz (+0.5 dB)
THD+N
0.02% (A-weighted)
Signal-to-Noise Ratio
100 dB (A-weighted)
WhatÂ’s In The Box
M-Track Duo
USB-B–to–USB-A Cable
Software Download Cards
User Guide
Safety & Warranty Manual
