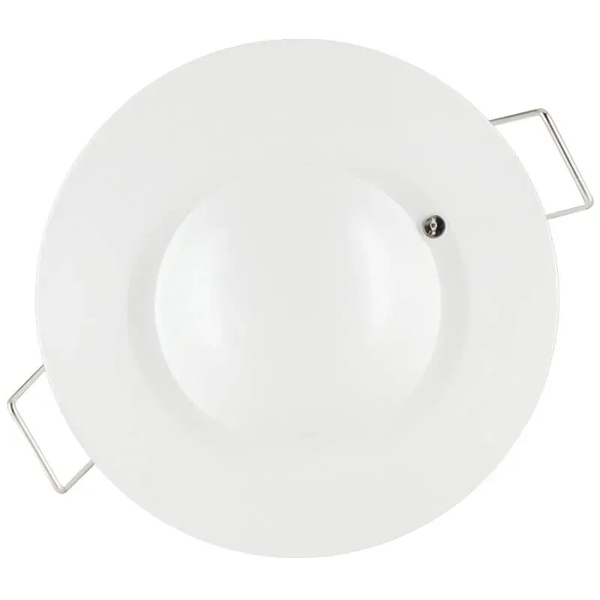

The Major Tech MS363 is a 360° microwave ceiling sensor designed for smart motion detection in indoor automation applications. It uses 5.8GHz radar technology to detect subtle movement and body heat, even through glass, plaster, or doors - offering better coverage and reliability than standard PIR sensors.

Perfect for homes, schools, and offices, the MS363 includes adjustable detection distance, time delay, and lux settings for custom operation. It supports up to 300W LED/CFL and is rated IP20 for dry, indoor use.

MS363 Features

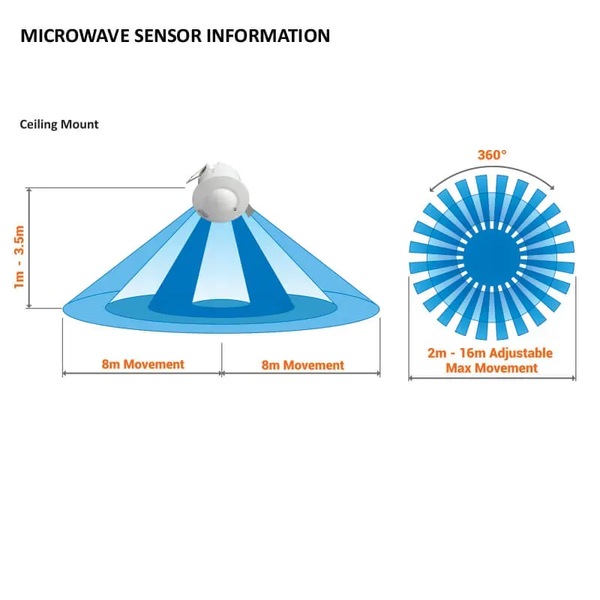

• 360° Ceiling Coverage: Wide-range detection up to 16 metres
• Microwave Radar Detection: Senses motion through non-metallic barriers
• Adjustable Time Delay: Set from 10 seconds to 12 minutes
• Lux Control: Ambient light threshold from 3 to 2000 LUX
• Low Power Standby: Energy-efficient with <0.9W consumption
• Load Rating: 1200W incandescent or 300W LED/CFL

MS363 FAQ

Q: Can this be mounted on any indoor ceiling?
A: Yes, it’s designed for indoor use with a 1.5m-3.5m install height.

Q: Does it detect through doors or walls?
A: Yes, it uses microwave radar to detect motion through thin, non-metallic materials.

Q: What lighting types does it support?
A: It can control LED/CFL up to 300W and incandescent loads up to 1200W.
