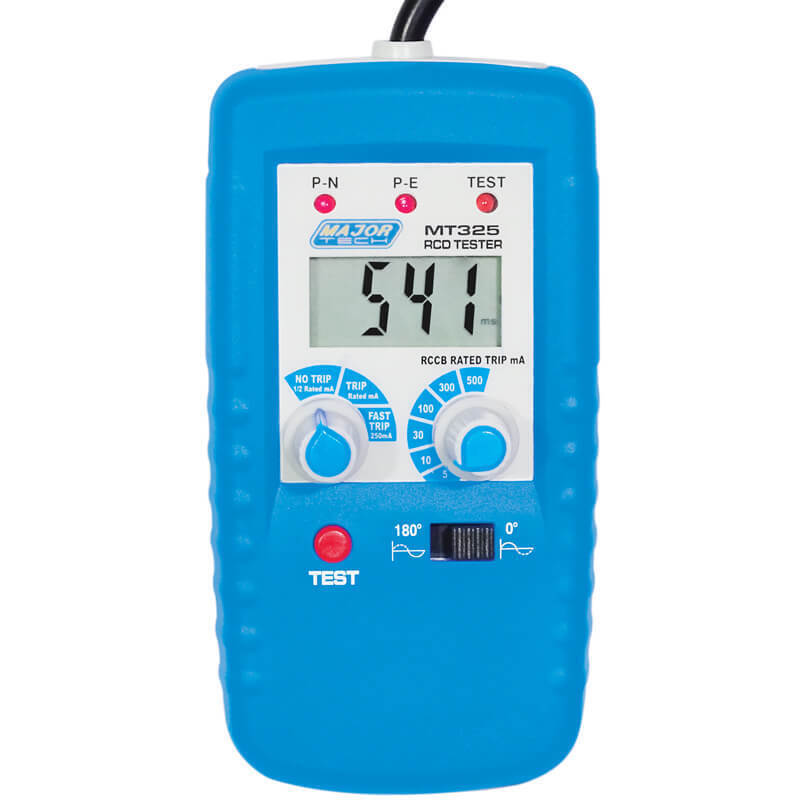

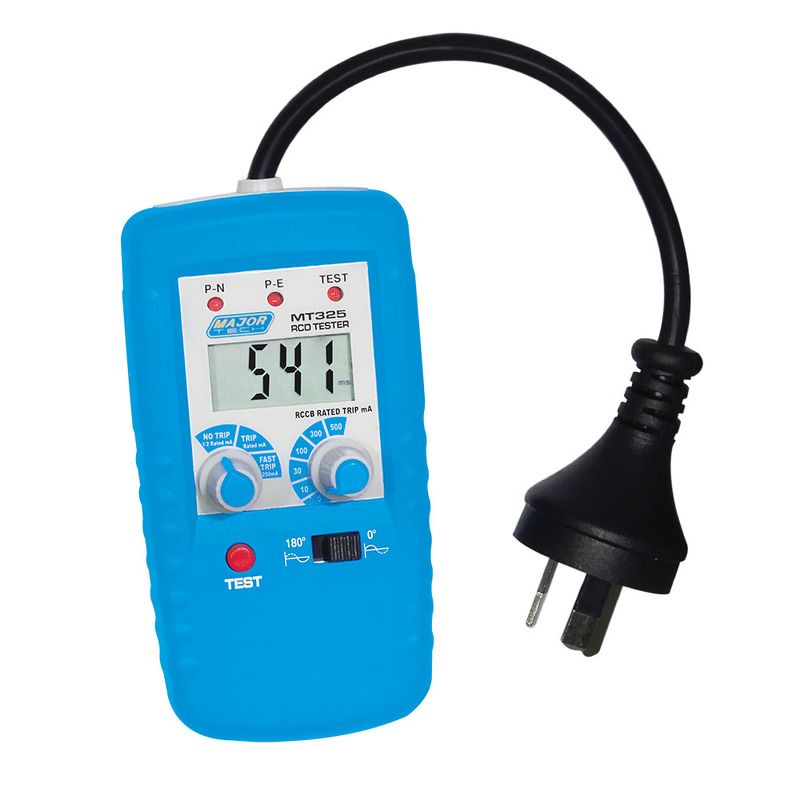

Major Tech MT325 | Socket RCD Tester

Description:

The compact MT325 is lightweight and easy to use and operates on 230V AC circuits while offering high accuracy measurement and good performance. Features include pre-programmed tripping current ranges for speed of use, with direct readout of disconnection time with a resolution of 1ms, neon indication of correct wiring status. Consistent results are obtained with the 0° and 180° phase angle select switch, thus eliminating the need for repeat tests.

Features:

  • CAT IV 300V and CAT III 600V
  • Double injection housing
  • Correct wiring indication
  • 2000ms Direct readout of disconnection time
  • Fully programmed test current settings
  • Accurate readout of tripping time with a resolution of 1ms
  • Two LED lamps give quick check for correct wiring
  • Compact, lightweight and simple to use
  • 0° or 180° Phase angle selection
  • Current setting from 5mA to 500mA
  • Operating voltage 230V AC
  • Data Hold function to freeze the digital trip time on the LCD

Specifications:

Specifications
Function Range Accuracy
Voltage Measurement 220VAC to 240VAC ± (3%)
Frequency Response 50/60Hz
Test Current 5, 10, 30,100,300,500mA
Measuring Range 2000ms ± (5%)
Phase Angle Selection 0° or 180°
Socket Polarity Yes
Enclosure Double Injection moulding
Display LCD
Weight 185g
Dimensions 128 x 68 x 30mm
Safety Specs IEC61010-1 CAT III 600V
