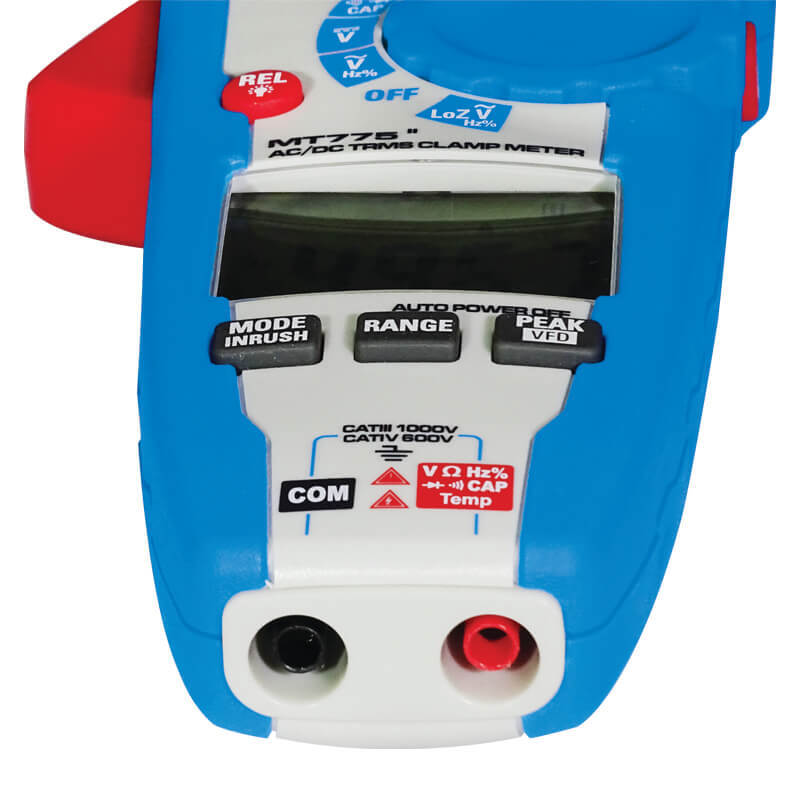

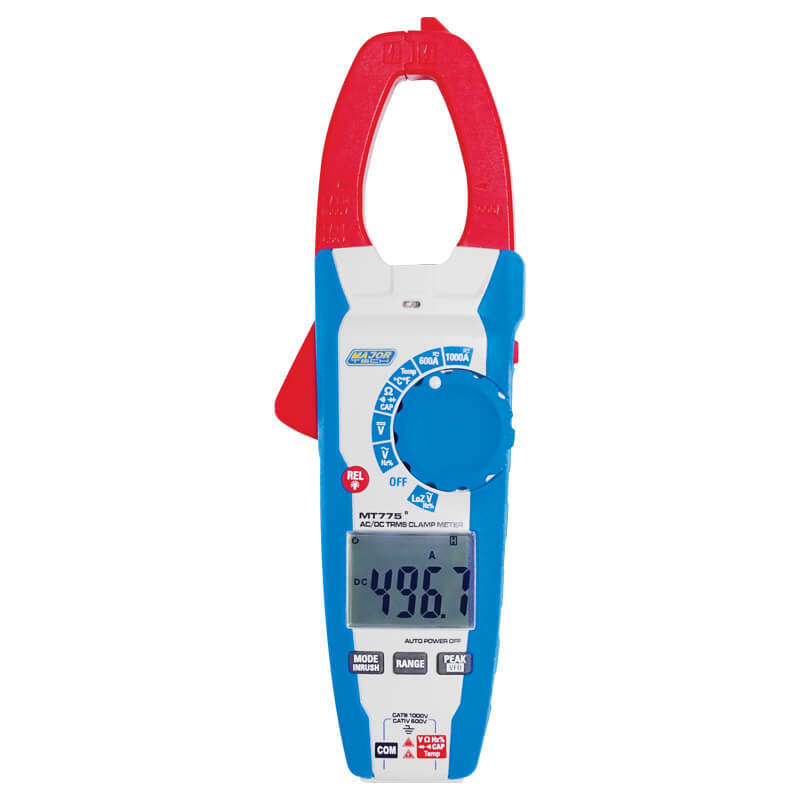

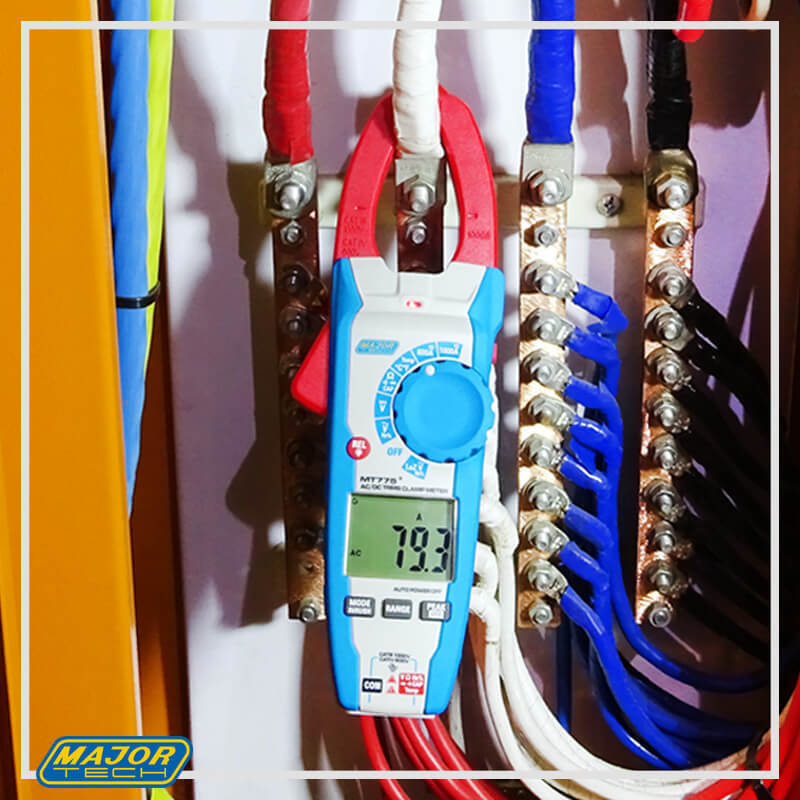

Major Tech MT775 | 1000A AC/DC True RMS Clamp Meter

Description:

The MT775 is a CAT IV 600V, 6000 count True RMS 1000A AC/DC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives, while the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. Added features include Relative mode for DCA and Capacitance Zero and offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.

Features:

  • CAT IV 600V and CAT III 1000V

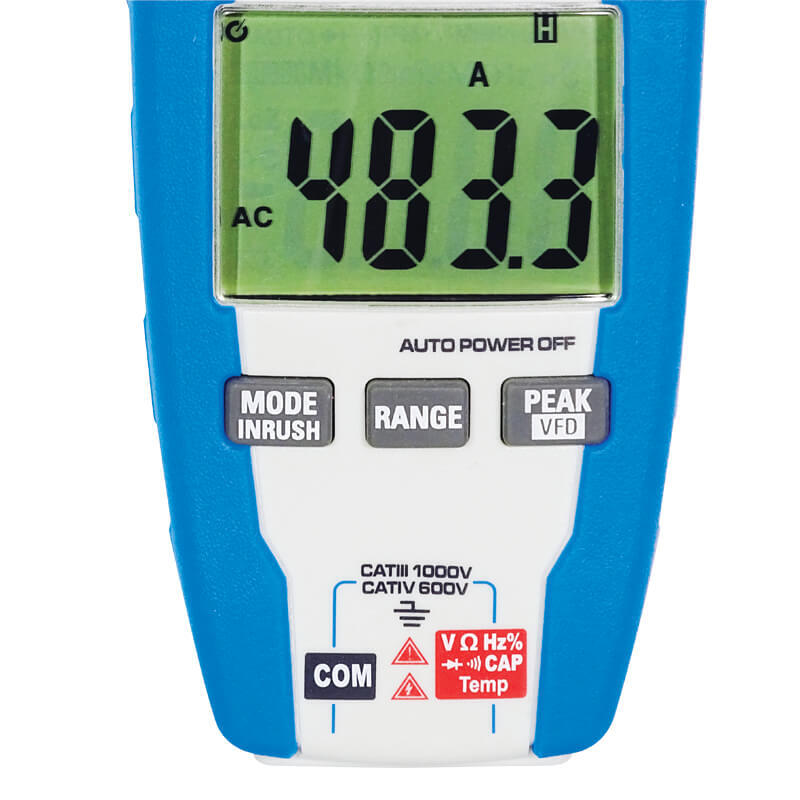

  • 6000 count backlit LCD display
  • Ø33mm Cable Clamp size
  • Measurement of DC voltage and AC voltage up to 1000V
  • Capacitance to 100mF

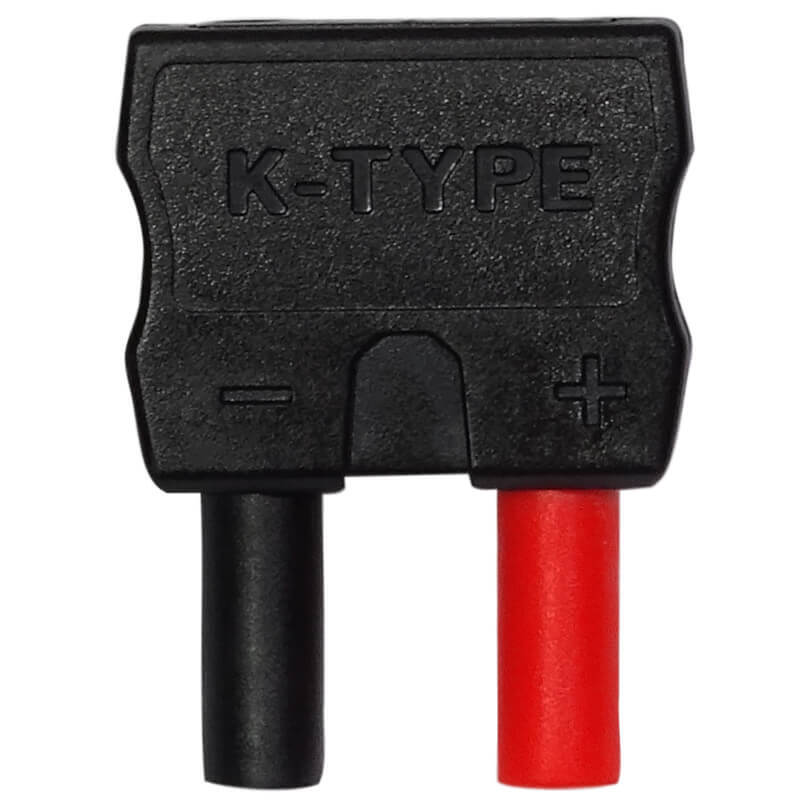

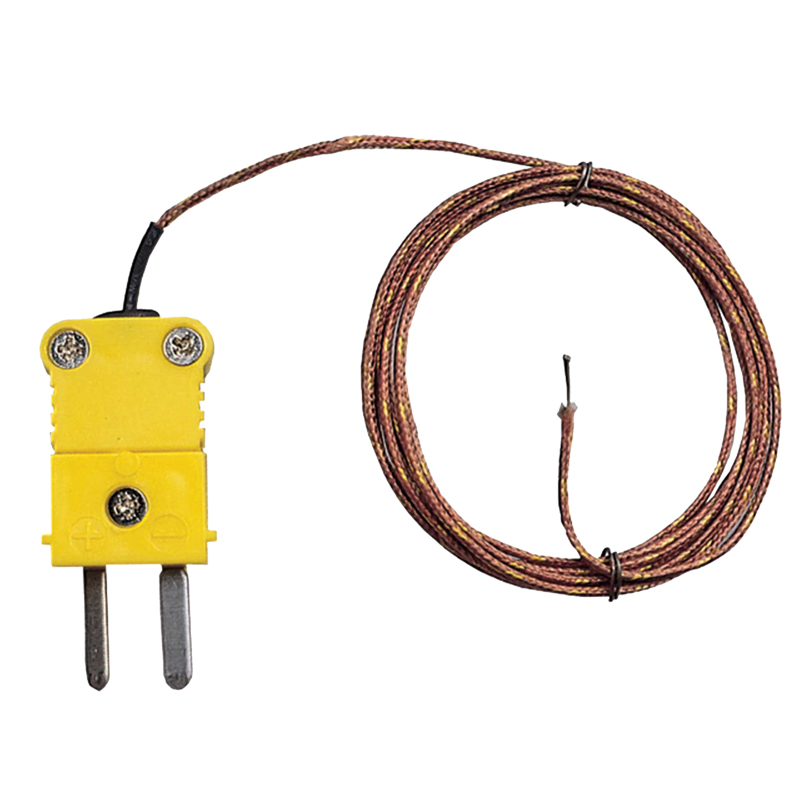

  • Temperature measurement from -20⁰C to 1000⁰C
  • INRUSH Current Measurements
  • VFD – Variable Frequency Drive voltage value
  • LoZ – Low impedance mode prevents false readings due to “Ghost” voltage
  • NCV – Non-Contact Voltage Detector
  • Built-In Flashlight
  • Continuity buzzer and Diode Test
  • Peak Mode and Data Hold function
  • Auto Power Off

Specifications:

Specifications
Function Range Resolution Accuracy
DC Current 600.00A – 1000.0A 10mA ±(2.5% + 5 Digits)
AC Current 600.00A – 1000.0A 10mA ±(2.5% + 8 Digits)
DC Voltage 6.000V – 1000V 1mV ±(1.5% + 2 Digits)
AC Voltage 6.000V – 1000V 1mV ±(1.5% + 5 Digits)
Resistance 600.0Ω – 60.00MΩ 0.1Ω ±(1.5% + 2 Digits)
Frequency 9.999Hz – 99.99kHz 0.01Hz ±(1.2% + 5 Digits)
Capacitance 60.00nF – 100.0mF 0.01nF ±(3.0% + 5 Digits)
Temperature -20 to 1000°C 0.1°C ±(5.0% + 3°C Digits)
Duty Cycle 10.0% to 90.0% 0.001 ±(1.2% + 10 Digits)
True RMS Measurements ACV, ACA
AC Bandwidth 50 – 400Hz
Digital Display 6000
Non-Contact Voltage (NCV) Yes
Overrange Indication Yes
Continuity Yes
Diode Test Yes
Jaw Size 33mm
Input Impedance >10MΩ DCV & >10MΩ VAC
Low Frequency Input Yes
Min Max Yes
Peak Hold Yes
Data Hold Yes
Back Light Yes
Enclosure Double injection moulding
Low Battery Indication Yes

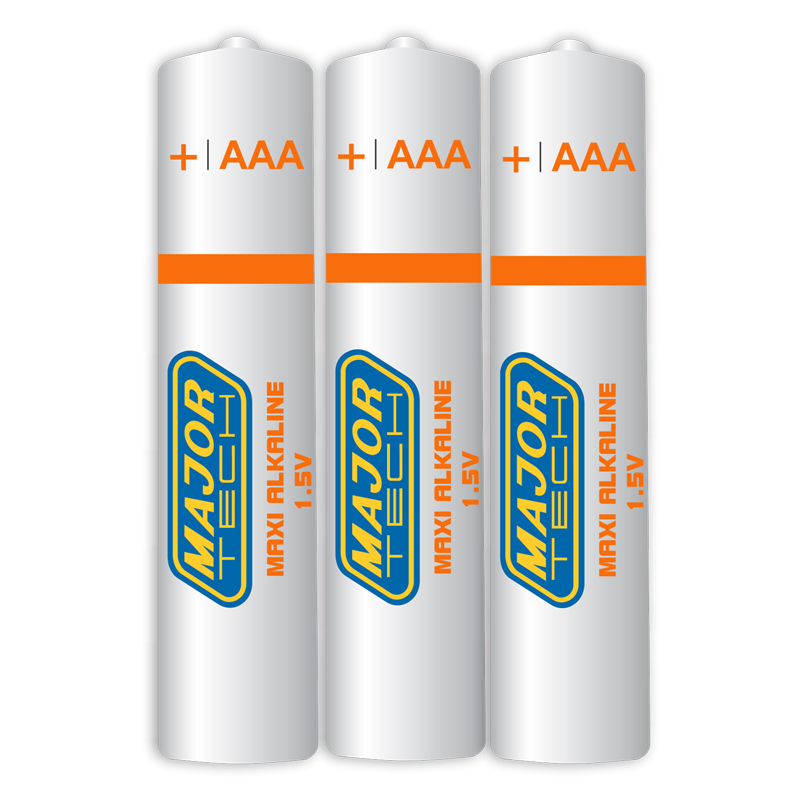

Batteries 3 x AAA
Weight 350g
Dimensions 250 x 78 x 40mm
Safety Specs IEC61010-1 CAT IV 600V



Warranty starts from Invoice Date

Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct

All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

How to Lodge a Warranty Claim

To initiate a warranty claim:

  1. Return to Sparky Direct
    Ship the meter back to Sparky Direct along with:

    • A copy of your proof of purchase
    • A brief description of the issue
    • Your contact details

    Please ensure the unit is securely packaged to prevent damage in transit.

  2. Forwarded for Assessment
    Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

Assessment Process

Major Tech’s service lab will assess the returned unit to determine:

  • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
  • If the issue is the result of user error or no fault is found.
Outcomes
  • If approved under warranty: The product will be repaired or replaced at no cost to you.
  • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.
Important Notes

As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

Please allow up to 7-14 working days for the return of your product.
