Description:

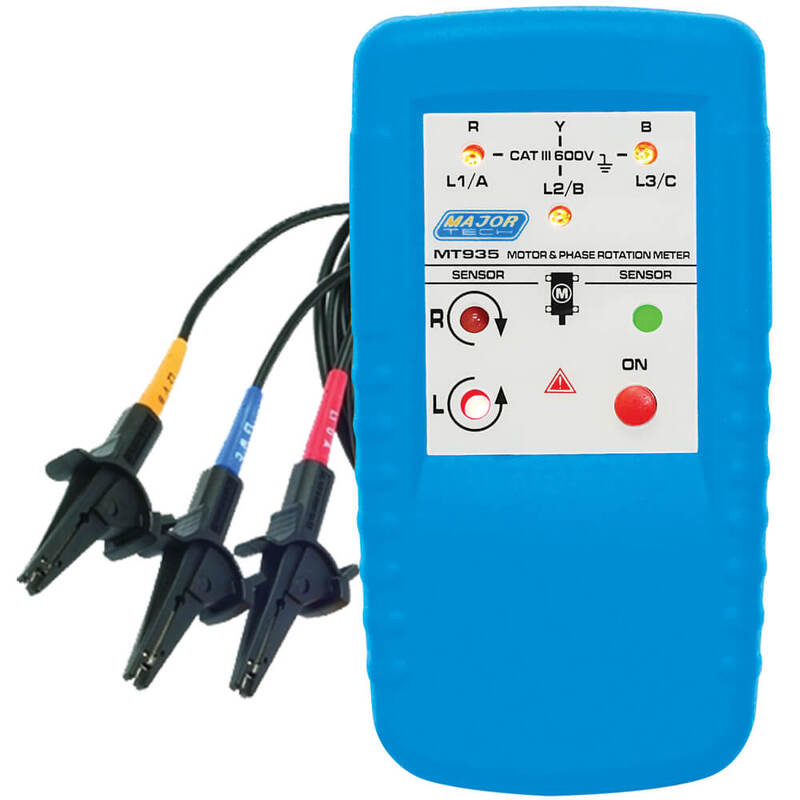

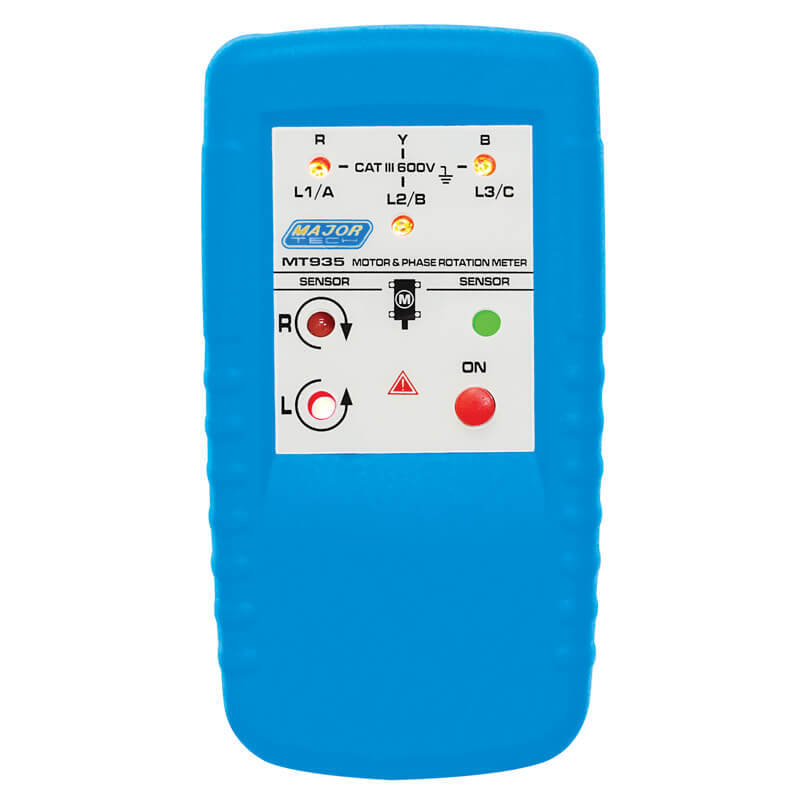

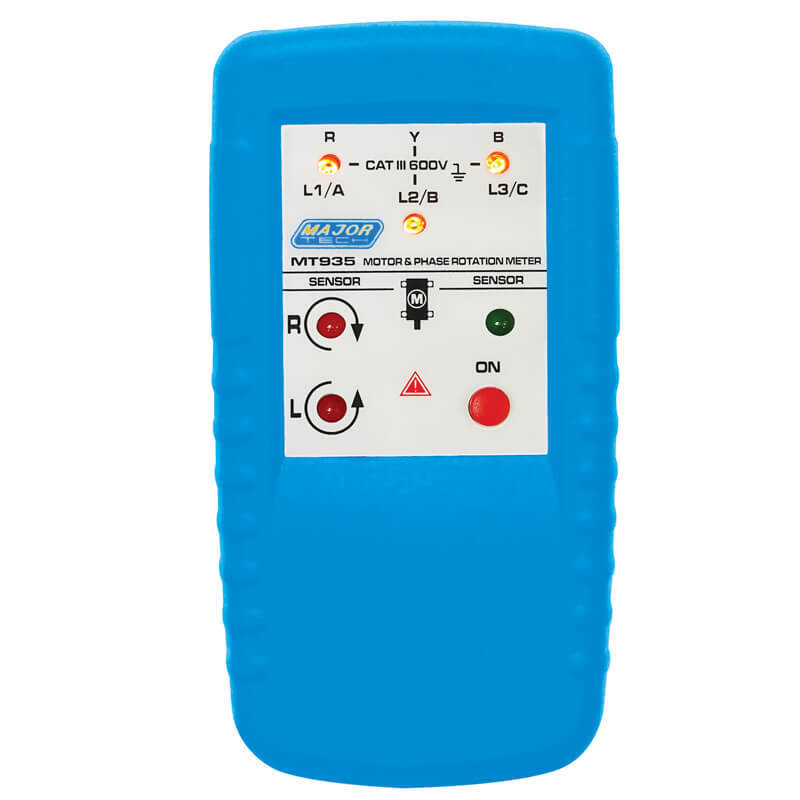

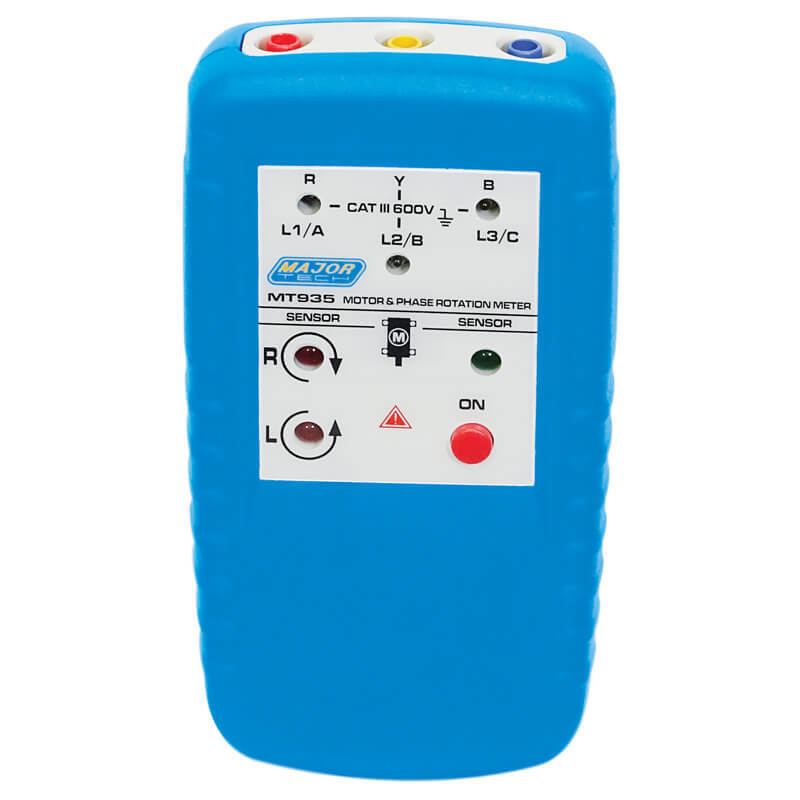

The MT935 is a compact handheld Motor and Phase Rotation indicator, which is battery operated. The unit can be utilized on a 3 Phase powered system or on a 3 Phase unpowered motor without having to worry about damage to the tester. When used on a 3 Phase powered system the meter is a field indication instrument which displays all three phases by lighting up its corresponding lamp. It then displays the rotation for clockwise or anti-clockwise on an LED. In 3 Phase motors it is possible to determine the motor connections U, V and W without mains voltage present, thus avoiding damage to pumps with reversed motor rotation. It operates from 1VAC to 400VAC.
Features:
Function | Range |
Clamp Diameter Range | 20mm |
Detection Method | LED Indication/non-contact |
Measuring Frequency | 2 – 400Hz |
Nominal Voltage Rotary Detection | 1 to 400V AC |
Nominal Voltage Phase Indirection | 120V – 400V |
Phase Rotation | Clock or Anti clock |
Visual Indication | LED Indication |
Colours | Red, Yellow Blue |
Casing | Double injection rubber housing |

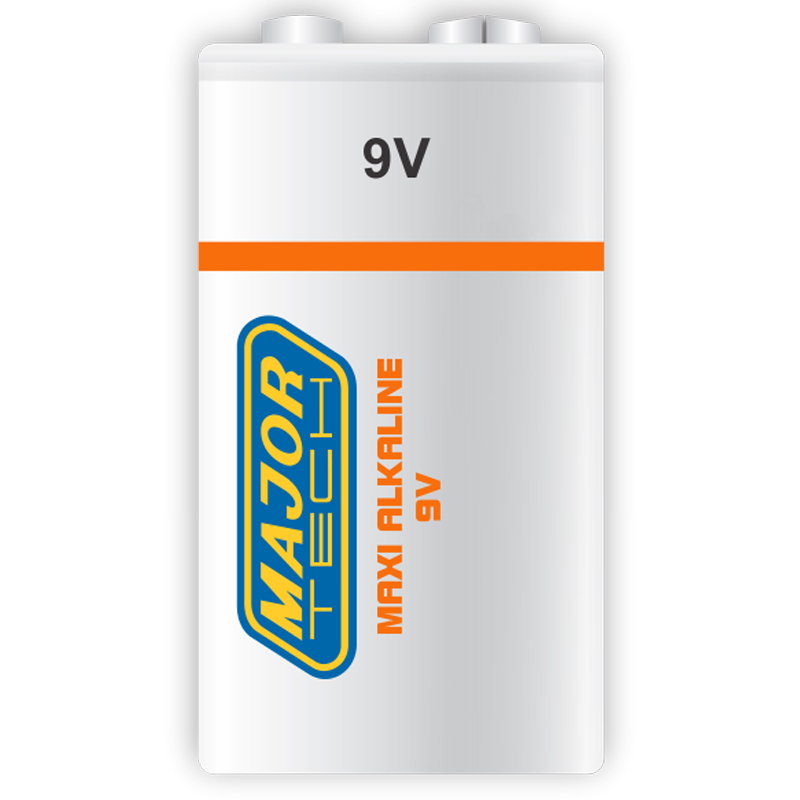

Batteries | 9V |
Weight | 130g |
Dimensions | 130 x 69 x 32mm |
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
GTIN: 6008229026959
