Major Tech MT985 | Digital Milliohm Meter

Description:

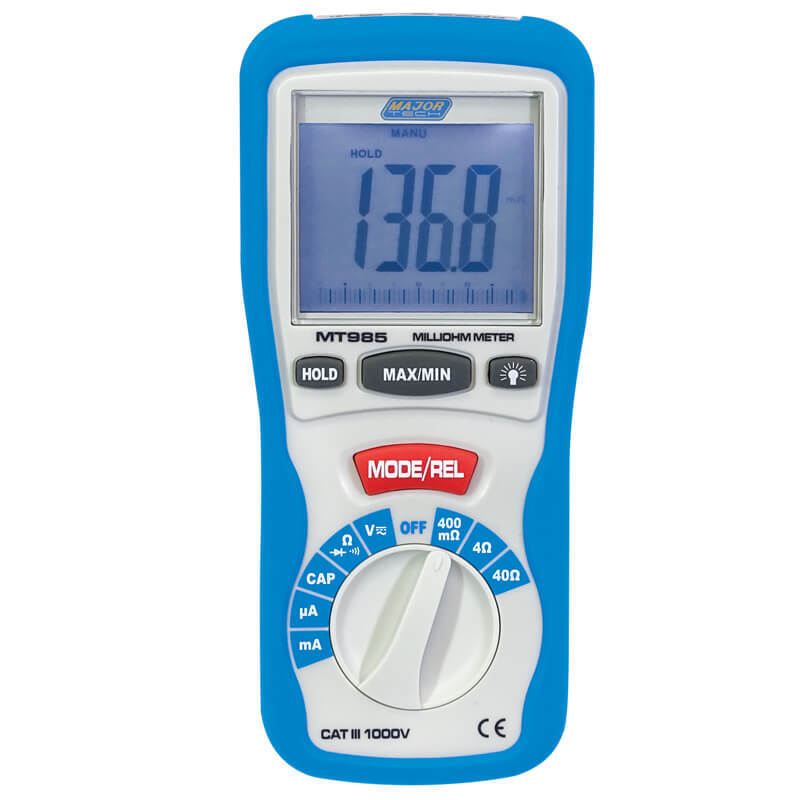

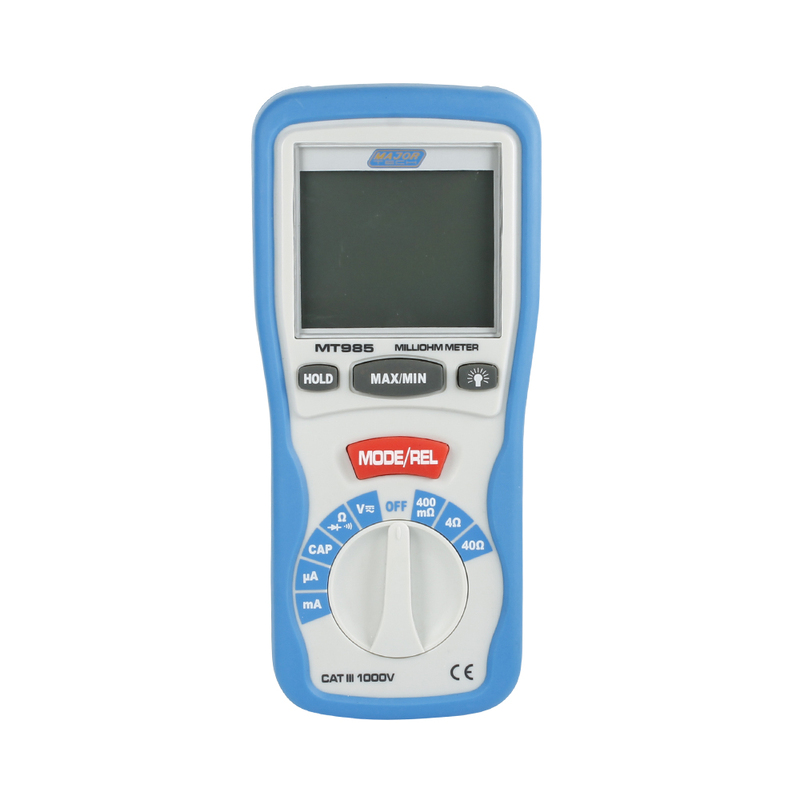

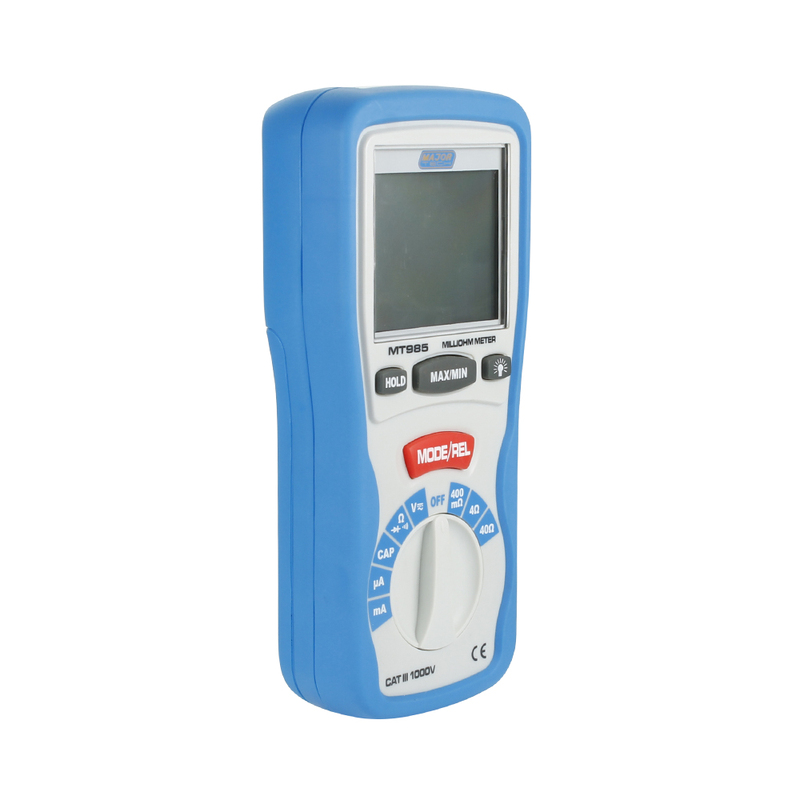

The MT985 is a handheld Milliohm/Multimeter combination that measures low resistance from 400mΩ to 40Ω with a resolution of 0.1mΩ and a test current of 200mA. With a two times per second sampling rate, this unit provides fast and accurate measurements on a large high contrast 4000 count LCD Display with a bargraph and back light. The Multimeter function measures AC/DC voltage, AC/DC current, resistance, capacitance, continuity, and includes a diode test offering excellent performance and is ideal for any industry.

Features:

  • CAT IV 600V and CAT III 1000V

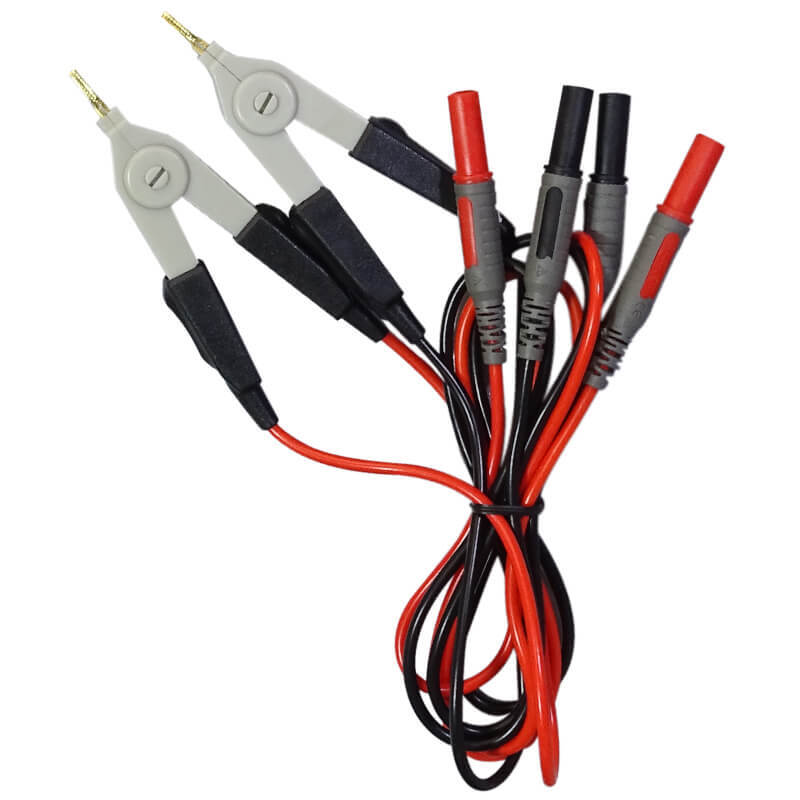

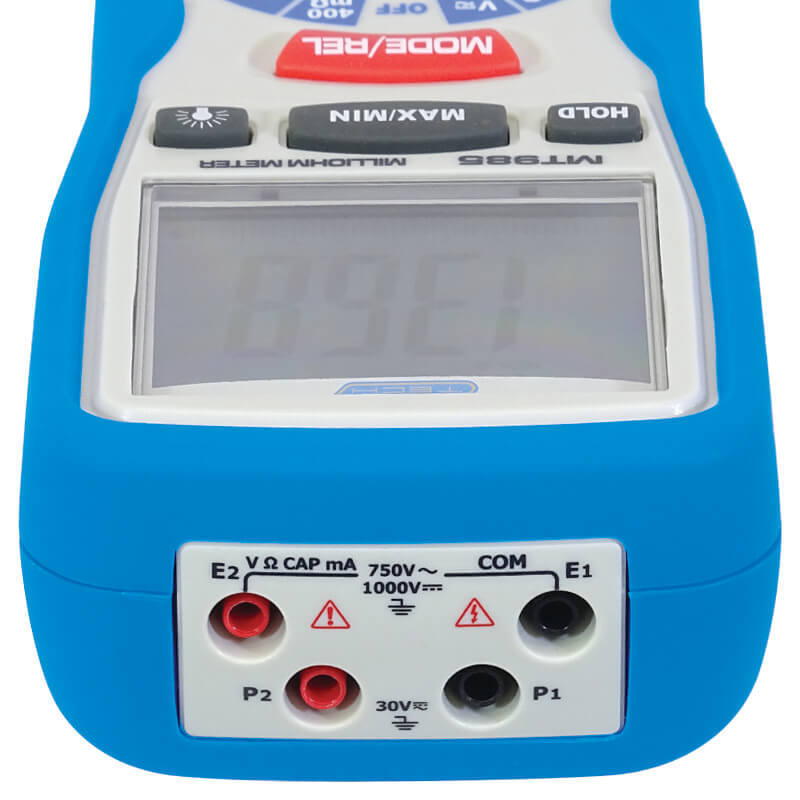

  • 4 Terminal Kelvin measurements
  • High resolution 0.1mΩ
  • Test current of 200mA
  • AC Voltage 750V
  • DC Voltage 1000V
  • AC/DC Current 400mA
  • Capacitance 1pF to 40mF
  • MIN / MAX
  • Relative mode
  • Data Hold
  • Continuity
  • Diode Test
  • 4000 Count LCD
  • Bargraph and backlight
  • Low battery indication
  • Overload protection

Specifications:

Specifications
Function Range Resolution Accuracy
Low Resistance 400mΩ – 40Ω 0.1mΩ ±(1% + 10 Digits)
DC Voltage 400mV – 1000V 0.1mV ±(1% + 5 Digits)
AC Voltage 400mV – 750V 0.1mV ±(1.2% + 10 Digits)
DC Current 400μA – 400mA 0.1μA ±(1.0% + 2 Digits)
AC Current 400μA – 400mA 0.1μA ±(1.5% + 5 Digits)
Resistance 400Ω – 40MΩ 0.1Ω ±(1.0% + 4 Digits)
Capacitance 4nF – 40mF 1pF ±(5.0% + 20 Digits)
Output Current 220mA – 2mA
Digital Display Large LCD Display
Continuity Yes
Diode Test Yes
Bargraph Yes
Overrange Indication Yes
Min Max Yes
Data Hold Yes
Back Light Yes
Enclosure Double moulded case
Low Battery Indication Yes

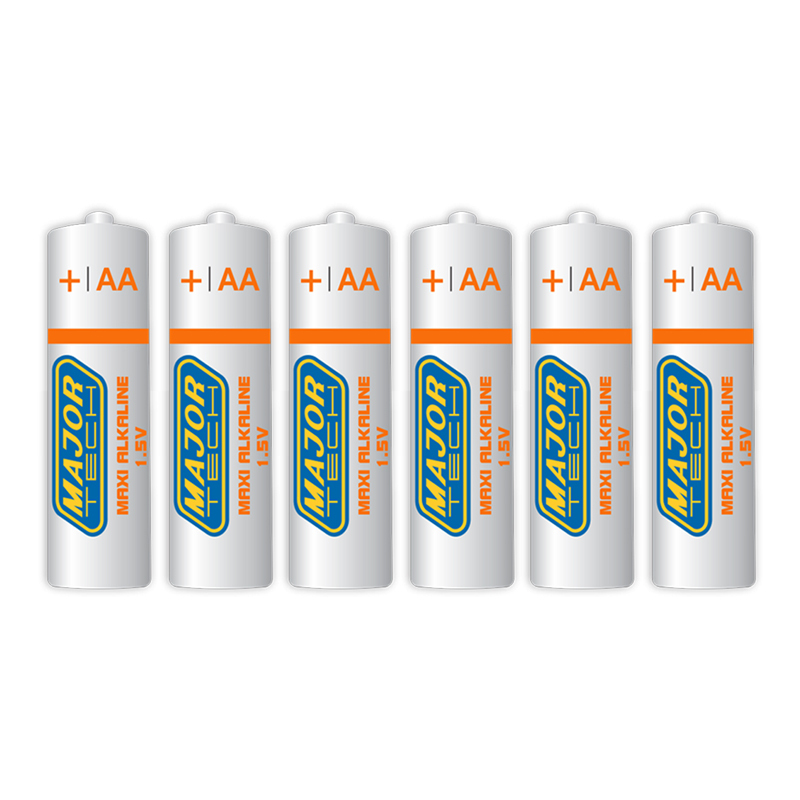

Batteries 6 x AA
Weight 700g
Dimensions 200 x 92 x 50mm
Safety Specs IEC61010-1 CAT III 1000V



Warranty starts from Invoice Date

Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct

All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

How to Lodge a Warranty Claim

To initiate a warranty claim:

  1. Return to Sparky Direct
    Ship the meter back to Sparky Direct along with:

    • A copy of your proof of purchase
    • A brief description of the issue
    • Your contact details

    Please ensure the unit is securely packaged to prevent damage in transit.

  2. Forwarded for Assessment
    Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

Assessment Process

Major Tech’s service lab will assess the returned unit to determine:

  • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
  • If the issue is the result of user error or no fault is found.
Outcomes
  • If approved under warranty: The product will be repaired or replaced at no cost to you.
  • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.
Important Notes

As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage. Please allow up to 7-14 working days for the return of your product.

GTIN: 6008229027598
