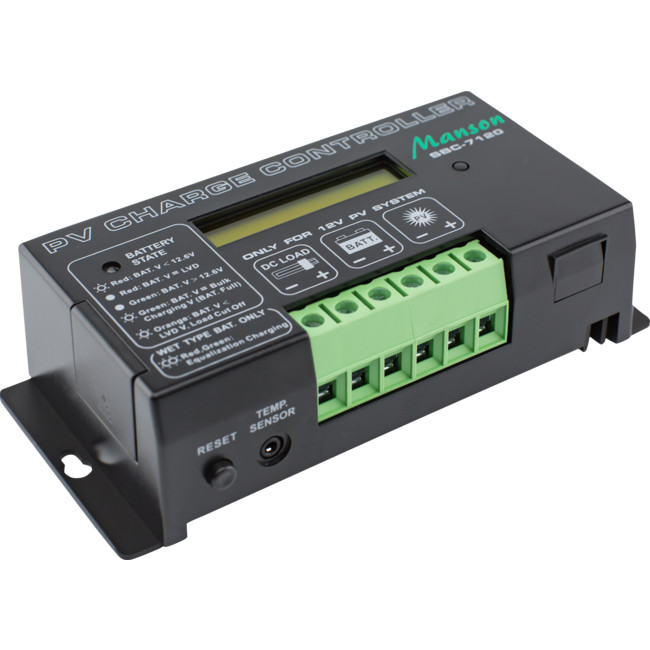

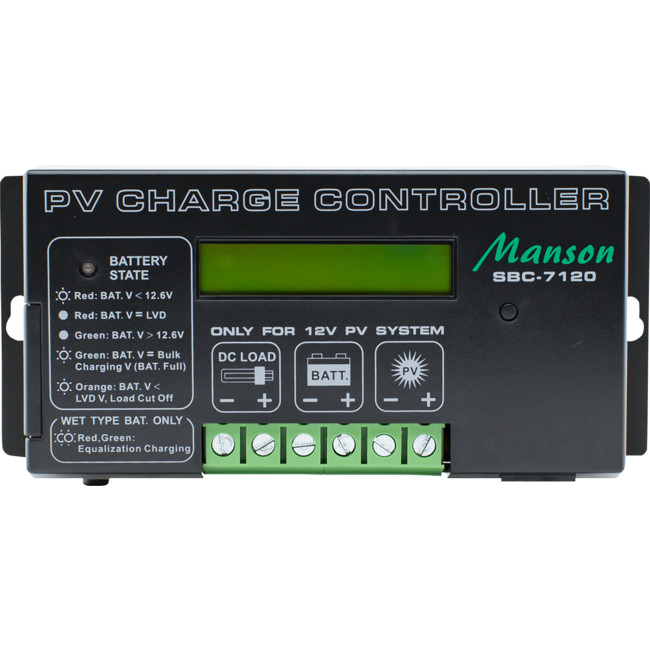

SBC7220 Programmable PWM PV Charge Controller with 10 Night Light Modes

The SBC-7000 Series PV charge controller is designed for use with all types of photovoltaic panels and different types of batteries, such as wet or sealed lead acid, lead calcium, and lead antimony batteries.

The MCU (Microprocessor controller) is programmed with 3 stage charging algorithms and with 0~100% PWM (Pulse Width Modulation) duty cycles to provide the fastest, optimal charging current and voltages from PV panels according to the actual state of charge and type of battery.

The 3 stages (Bulk, Absorption, Float) and *Equalization* charging cycles ensure complete charging cycles and maintenance of lead acid battery automatically. Bulk and Float threshold charge voltage levels are user-adjustable to meet specific battery manufacturers' recommendations.*Equalization Charging is only for the wet type lead acid Battery, which automatically cycles once a month for 2 hours. Equalization Charging can be de-activated or re-activated manually.

Hence, maximum PV charging efficiency and longer service life span of the battery are ensured.Ampere Hour logging readouts in three sets, today and the last two days are shown on the LCD. This is useful to check the condition of PV data for efficiency and actual capacity of your system.

Electronic blocking of back current to PV and overcharging battery protection are standard.

Features

User-adjustable charging voltages
Suitable for all types of lead-acid batteries
Microprocessor controls PWM with 3-stage charging algorithms
Bulk, Absorption, Float stage, PV charging current, Battery voltage on LCD display
Ampere Hour logging readouts of 3 days
5 state LED indications of battery levels with reference to PV voltage
Electronic Overcharge Protection & blocking current from battery to PV panel
Over-temperature protection of the controller's electronic circuit
10 selectable Night Light programs
User-defined battery low voltage disconnect and reconnect for load terminal
Optional remote temperature sensor for the battery to provide precise right charging
Optional remote signal/control terminal for synchronization of unit's load terminal

Specifications

Battery Voltage	24V DC
Maximum PV Panel Open Circuit Voltage	52V DC
Continuous Load/Charge Current	20A
Maximum Charger Current	25A
Maximum Load Current	25A
Operating Current (no load and no PV)	≤15mA
Voltage Across Terminal (PV to Battery)	≤0.8V
Voltage Across Terminal (Battery to PV)	≤0.4V
Fuse	30A
Battery Charging Float Voltage Setting	Adjustable from 24.0-33.0V
Battery Charging Bulk Voltage Setting	Adjustable from 24.0-33.0V
Low Voltage Disconnect (LVD)	Adjustable from 16V to 32V
Low Voltage Reconnect (LVR)	Adjustable from 16V to 32V
Display	LCD + LED
Protection	Battery Reverse Polarity Protection, Over Charge/Discharge Protection, Over Temperature Protection
LVD	Adjustable 18V to 30V DC
LVR	Adjustable 20V to 32V DC
Dimensions (W×H×D)	150mm × 85mm × 45mm (5.9″ × 3.3″ × 1.8″)
Weight	470g (16.5oz)
Battery Status LED Indication	5 State LED Indications
Charging Status LCD Indication	3 State LCD Indications
Recommended Wire Size	#10AWG for SBC7220
Operating Ambient Temperature	−10°C to 50°C
* All values are based on the Standard ambient Temperature 25°C and Pressure 0.1Mpa.
