Collect 199 Everyday Rewards points
5G/4G/3G/GSM FREQUENCY: 600~6000 MHz.Fit all the frequency 5G, 4G bands Globally! Also all the Wifi 2.4GHz Wifi 5.0 GHz and Wifi 6 at 6.0GHz frequencies are all supported.
PREMIUM QUALITY ANTENNA: Our Directional LPDA U-bolt Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!
With Ultra Low Loss Cable Up to 6GHz:4 meters High Frequency Ultra Low Loss Cable (LMR600 equivalent) is equipped.
IP67 WATERPROOF: This antenna is completely waterproof (IP67) . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile high gain antenna.

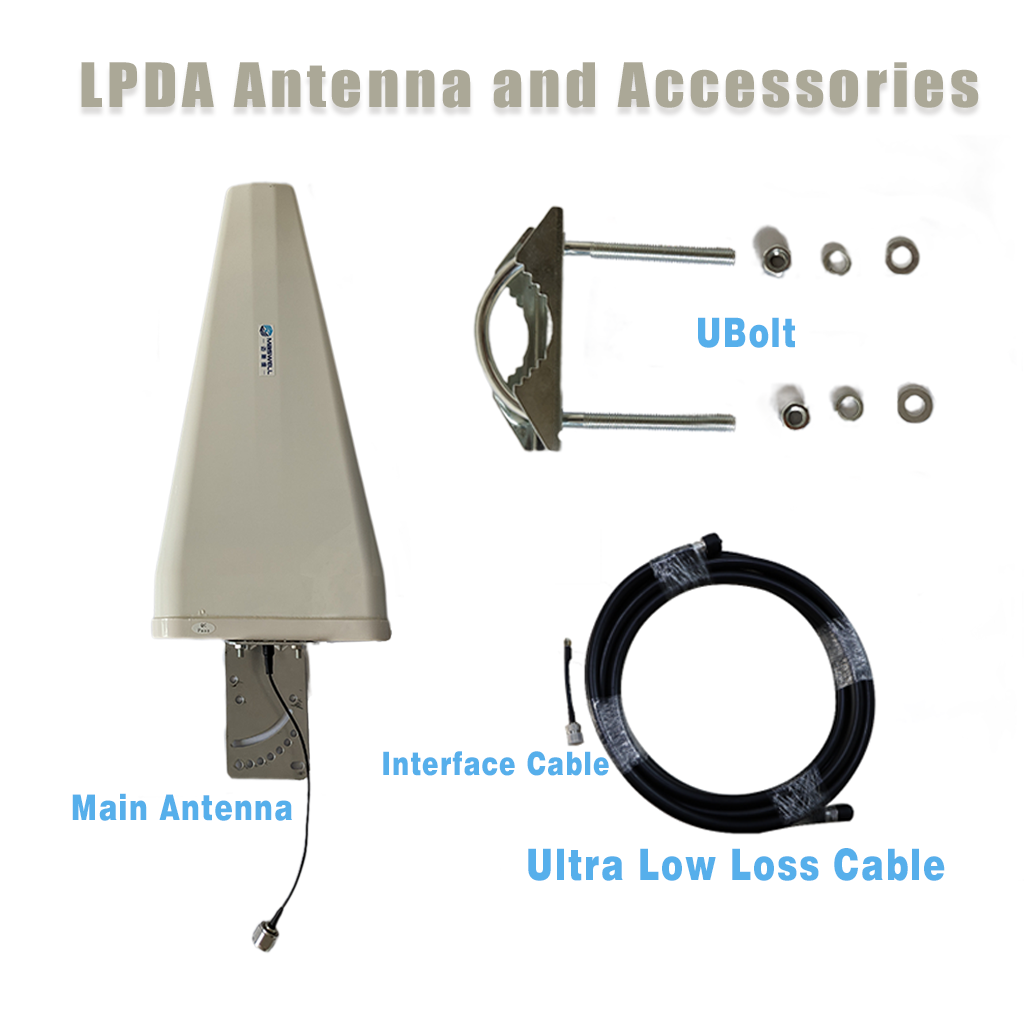

Package Contains:
Box1: LPDA antenna
Box2: a 4 meters Ultra low loss LMR 600 equivalent cable and an SMA to N interface cable
ITEM ID:AN_Master_004

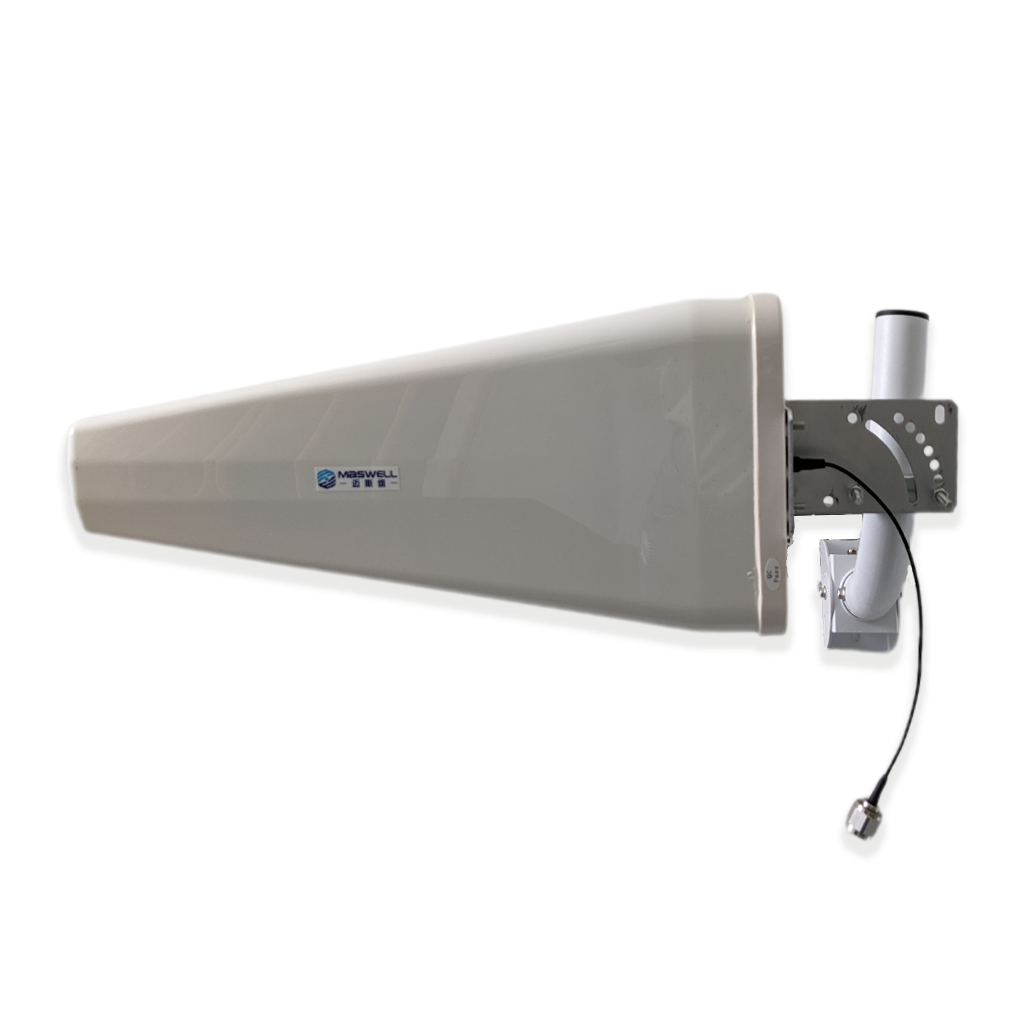

MASWELL 5G High Gain Ultra Wideband Log Periodic Antenna Entry level

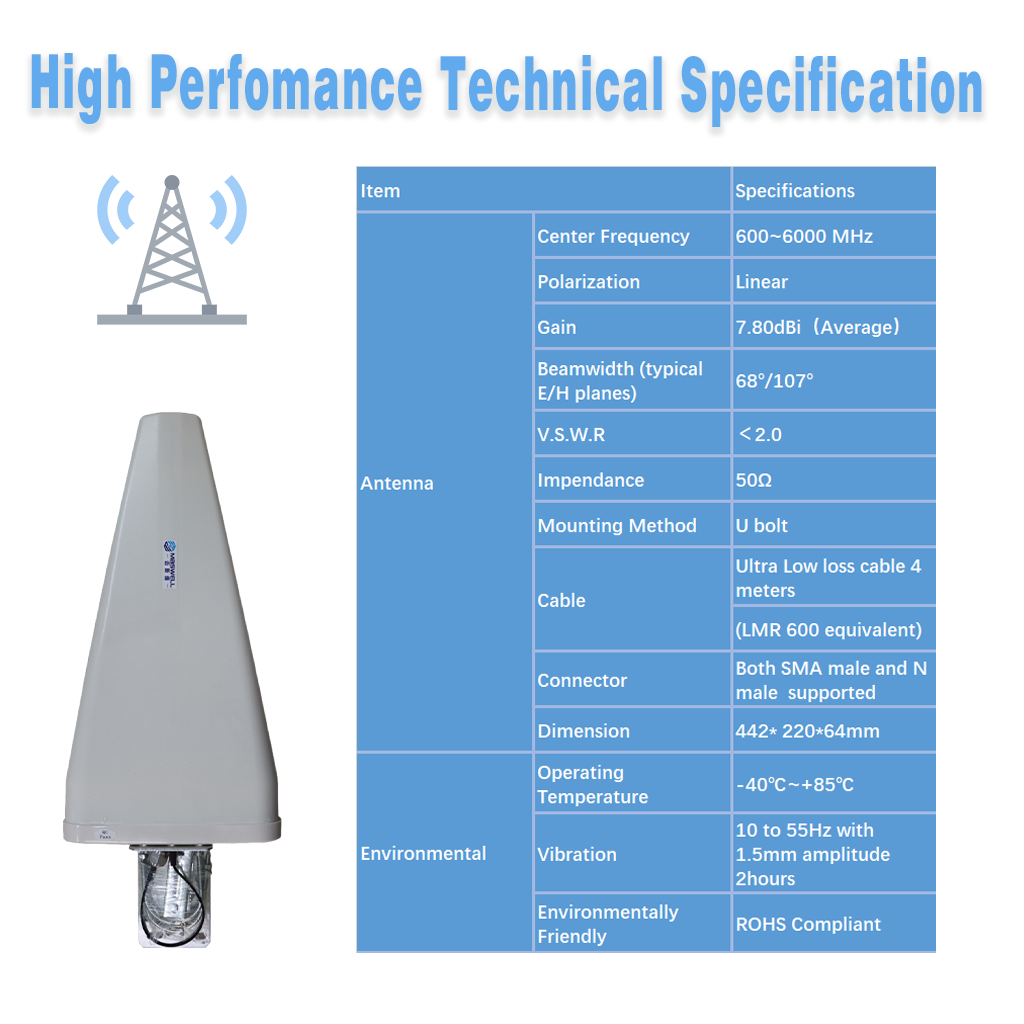

Antenna Specification
Center Frequency:600~6000 MHz
Polarization:Linear
Gain:Up to 7.8dBi

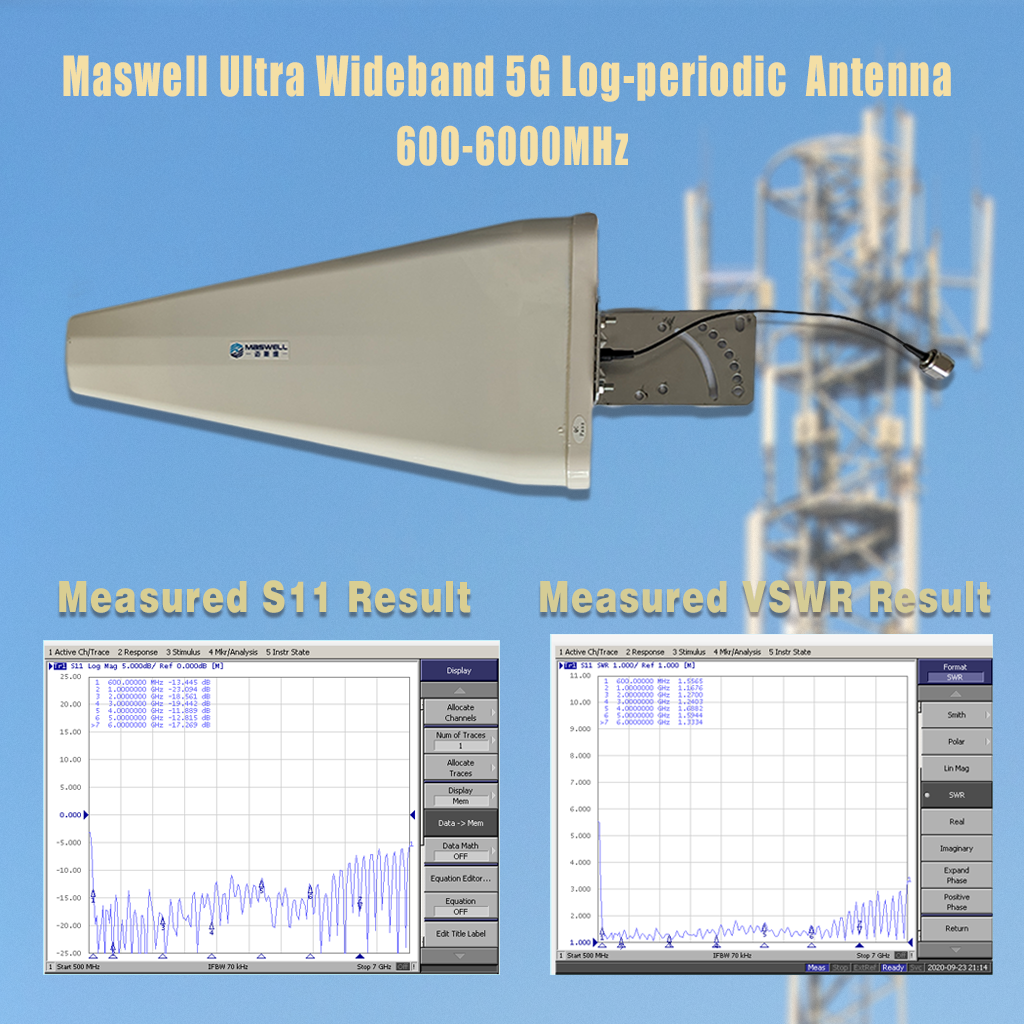

V.S.W.R is less than 2
Impendance:50Ω
Mounting Method:U bolt
Cable:Ultra Low loss cable 13 feet (LMR 600 equivalent)

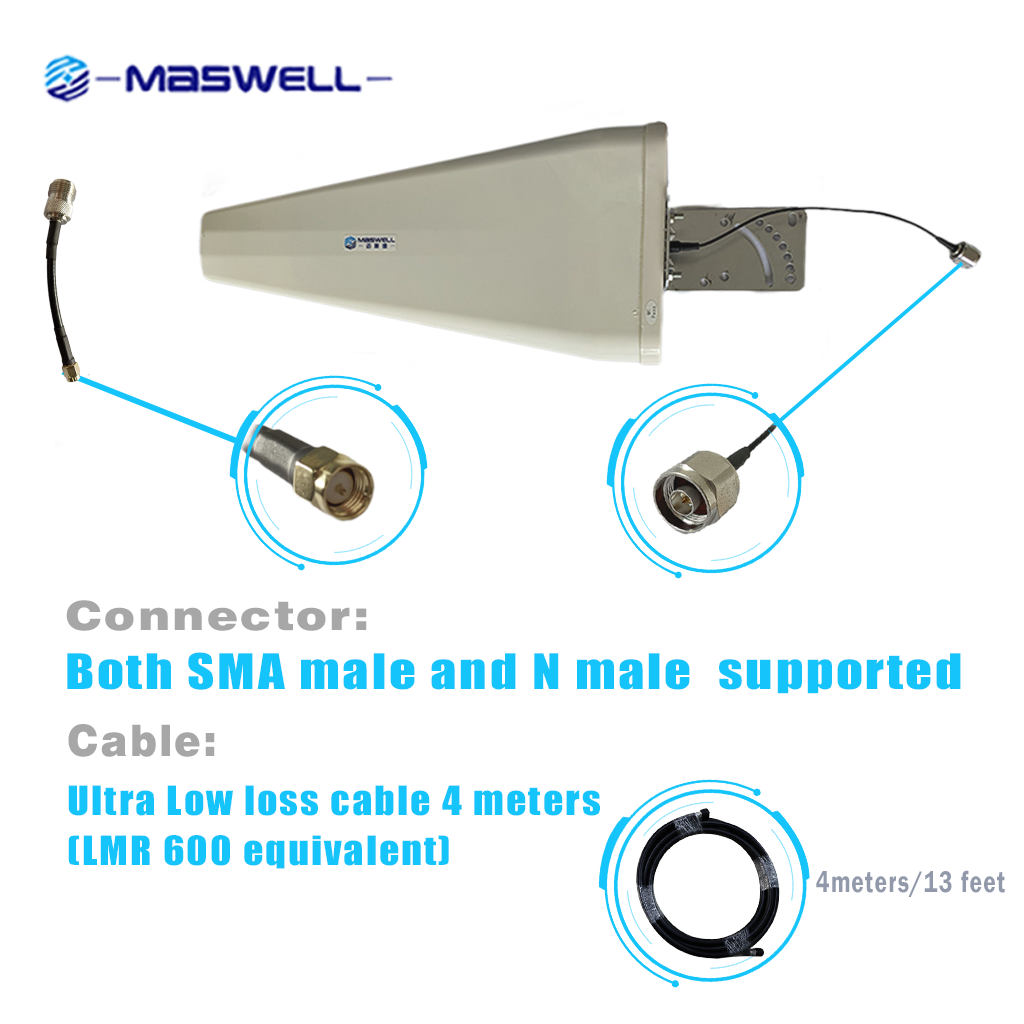

Connector Both SMA male and N male supported
Dimension 442* 220*64mm
Environmental Specification
Operating Temperature:-40 Degrees Celsius ~+85 Degrees Celsius
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly:ROHS Compliant
GTIN: 720524166524
Estimated Delivery Time Frame:15
