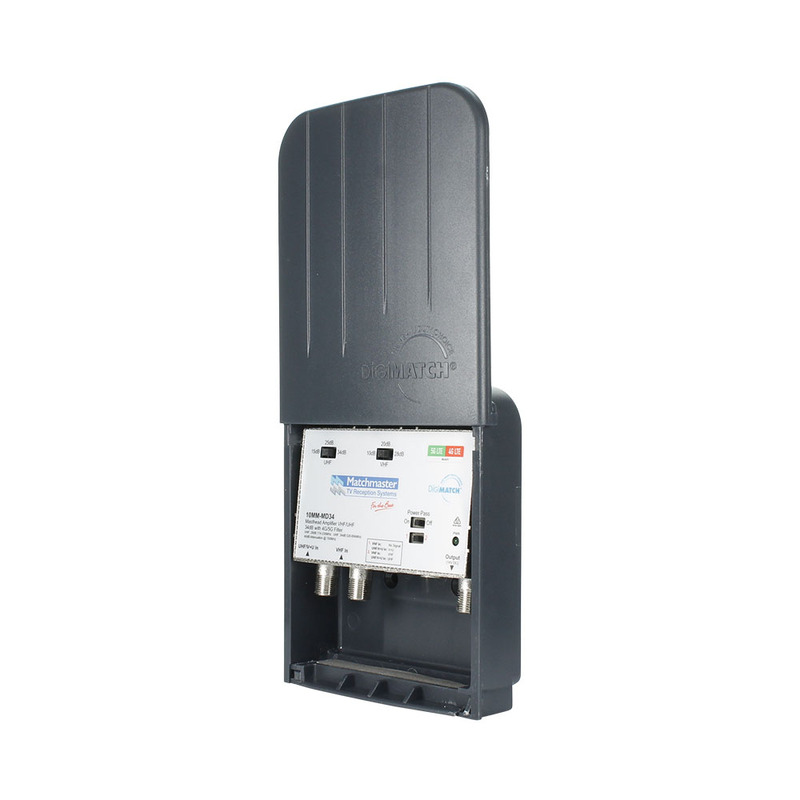

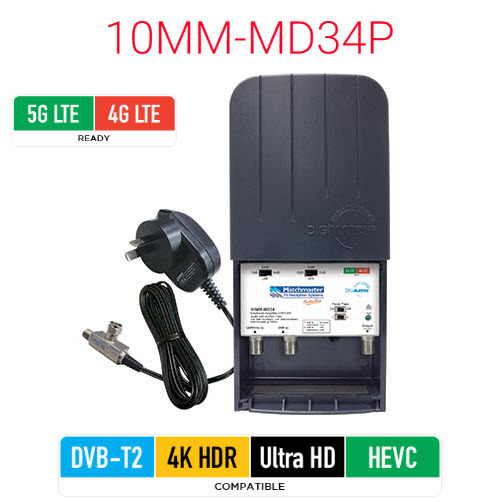

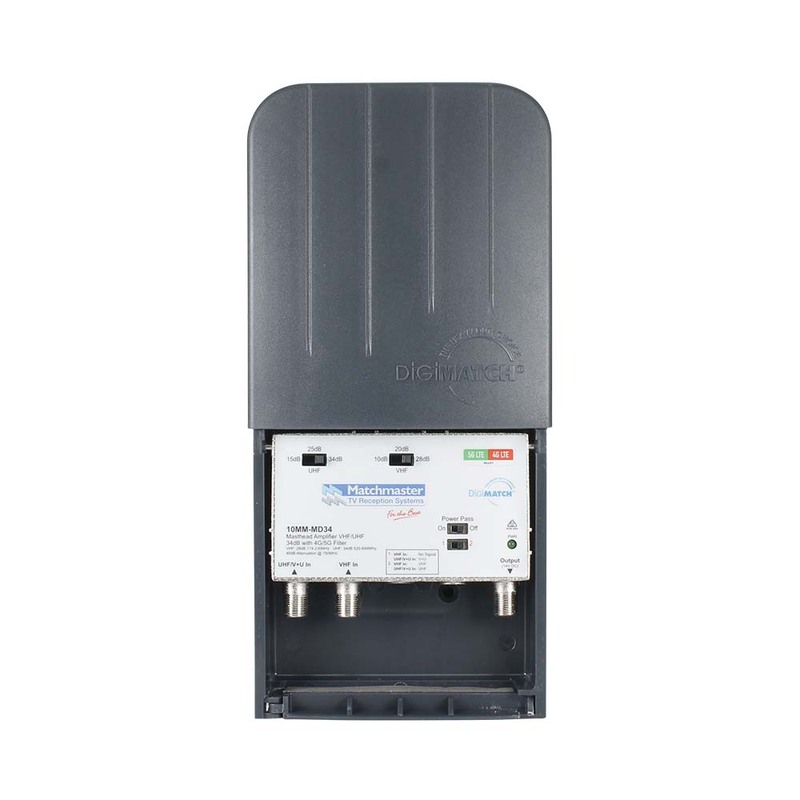

The MD34 is a 4G/5G filtered wide band VHF/UHF amplifier suitable for use in all capital cities and regions with broadcast up to 694MHz. Featuring Power passing via VHF or UHF to line power additional amplifiers upstream. Featuring filtering from 694MHz to deliver greater than 50dB filtering at 750MHz for 4G and 5G LTE signals.

Features and Benefits

• Built in 4G LTE 694MHz low pass filter Filtering at 750MHz is >40dB at maximum gain for UHF of 34dB and >50dB at maximum gain for VHF of 28dB
• Power through switch to drive extra amplifiers for both VHF and UHF with gain adjustment switch selectable between 15, 25 and 34dB for UHF and 10, 20 and 28dB for VHF

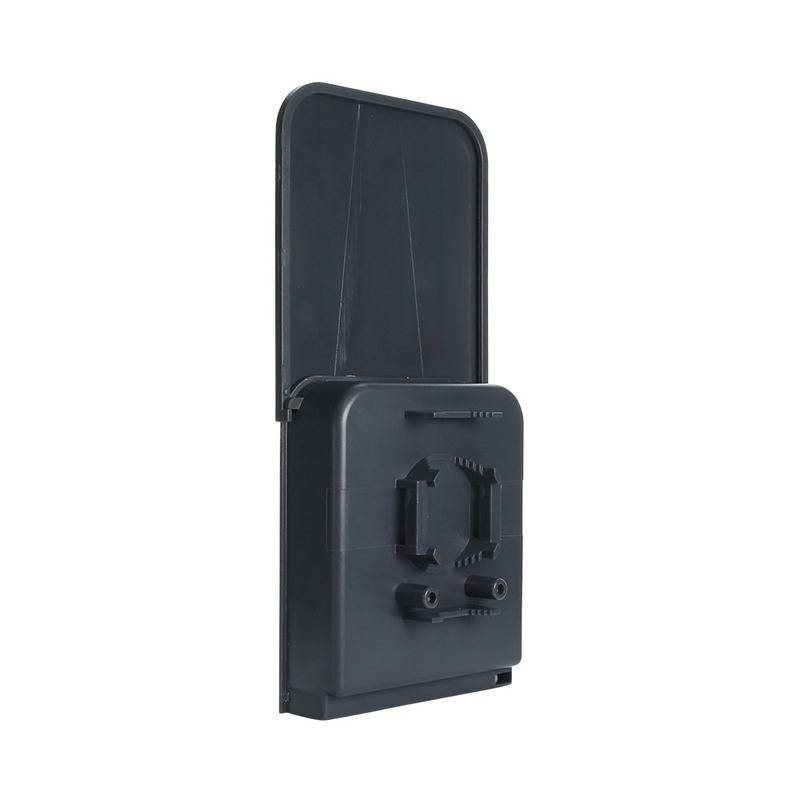

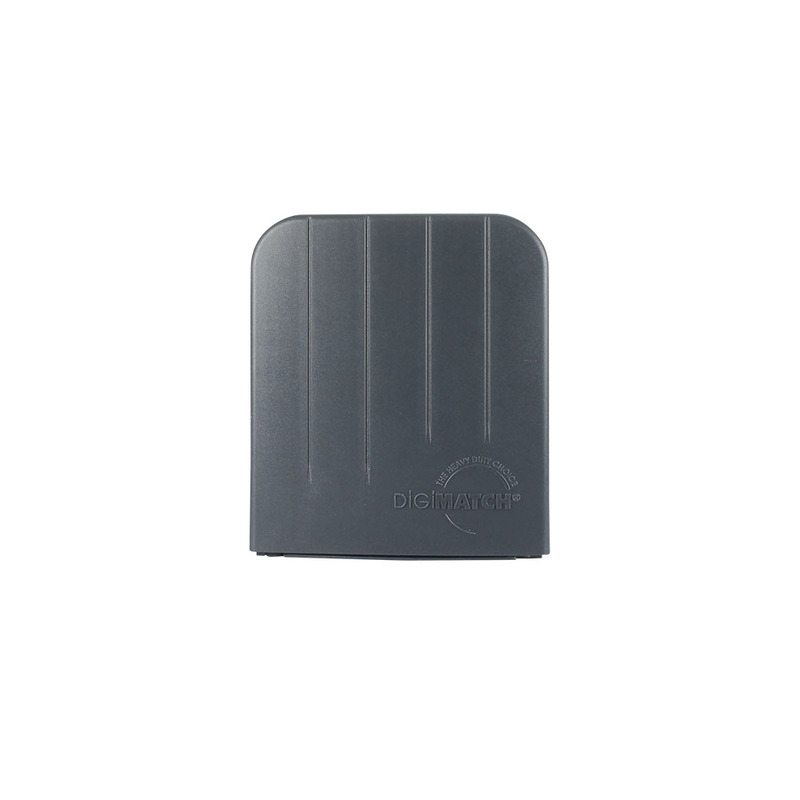

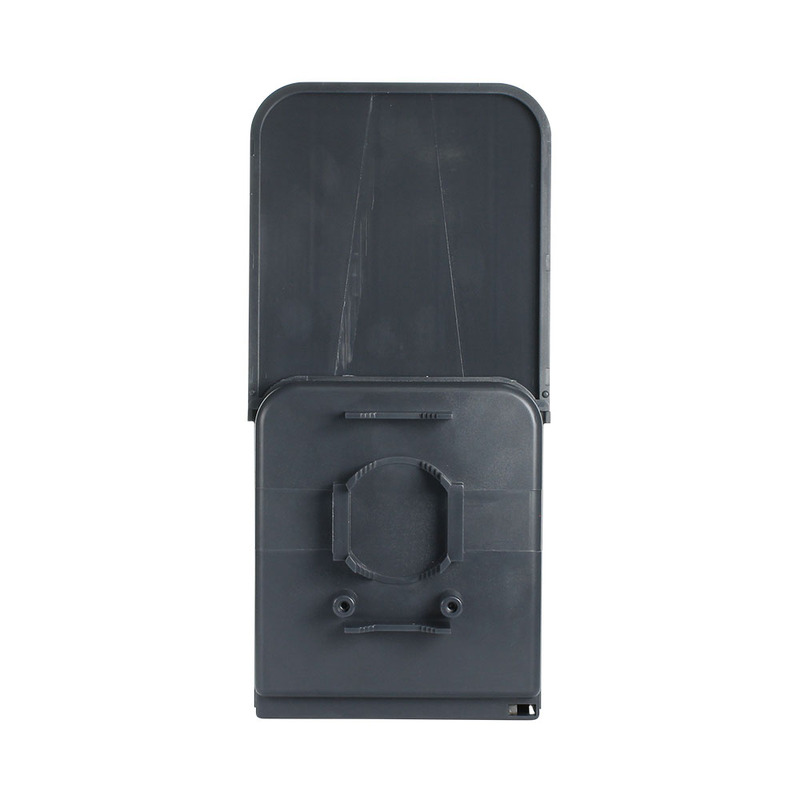

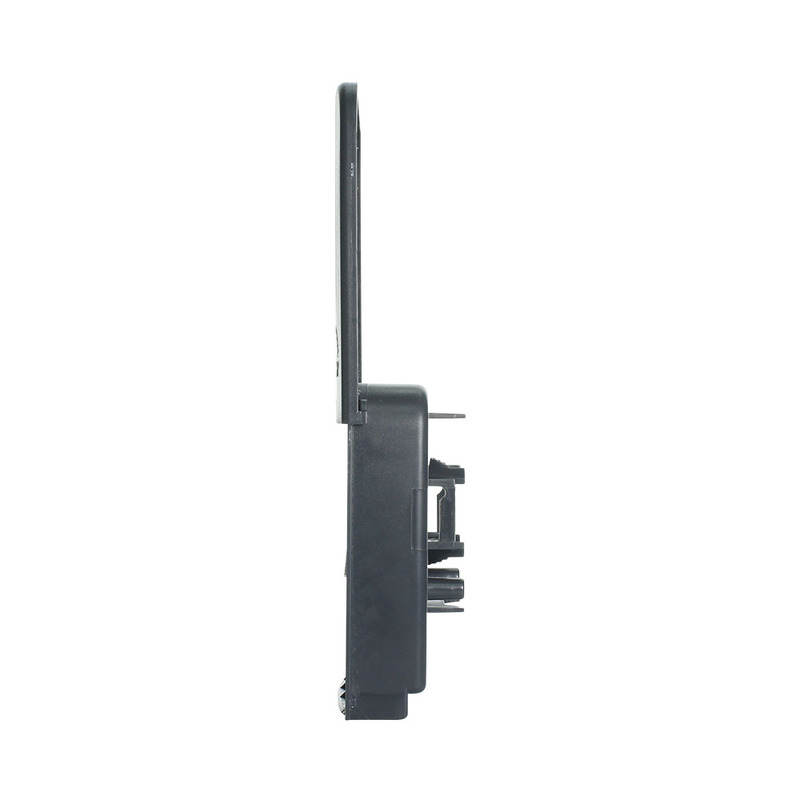

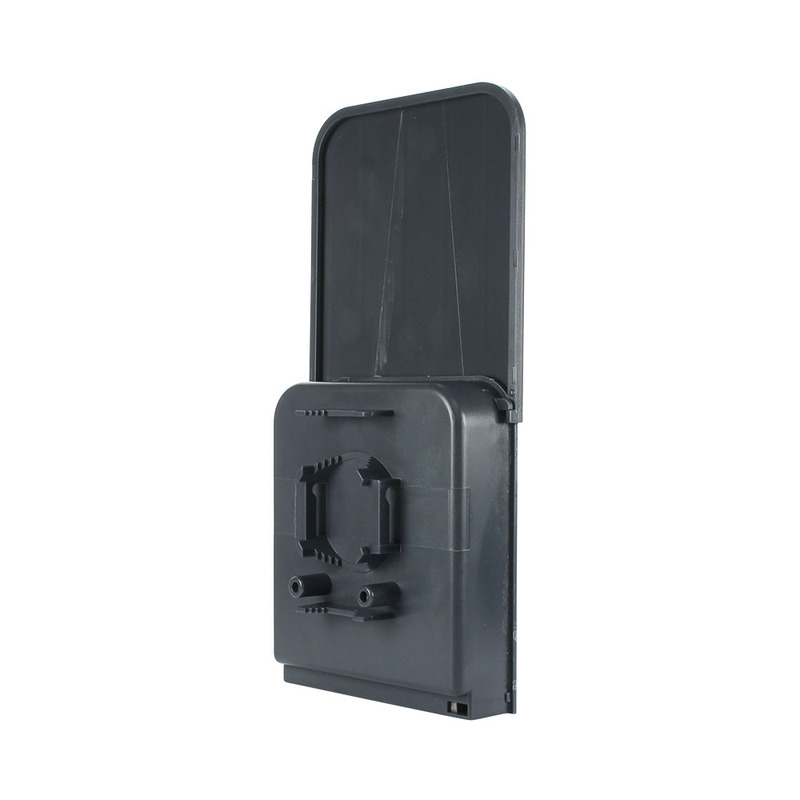

• Heavy duty UV stable outdoor weather proof casing
• Can be used with VHF or UHF antenna’s or a combination of both

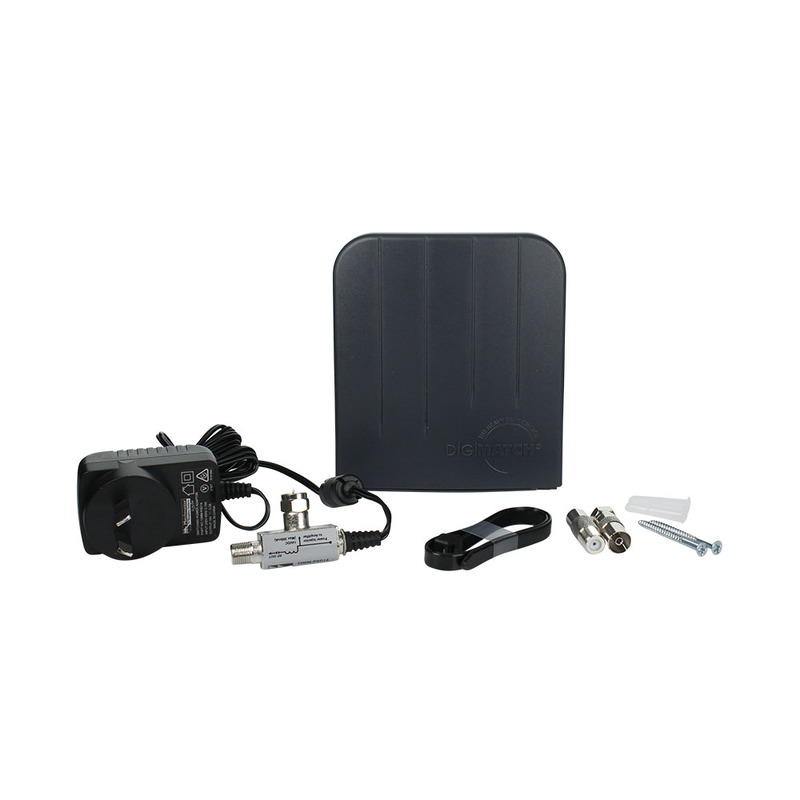

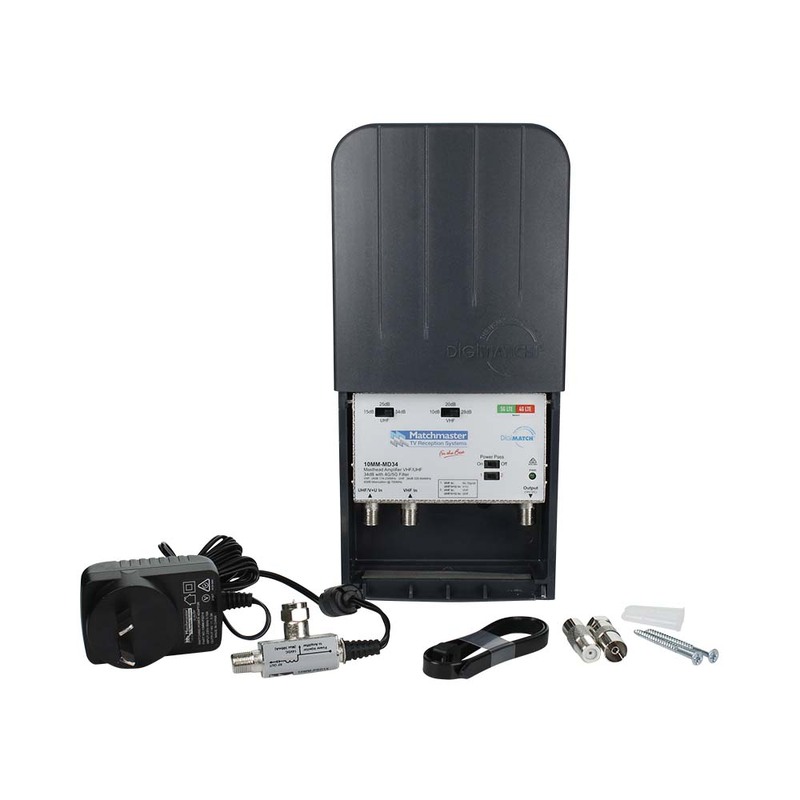

• Includes 14V DC power supply and cable ties for mounting
• VHF input return loss is >12dB with a noise figure of <4.8dB and UHF input return loss is >11dB with a noise figure of <2.9dB
