This attractive and functional detector helps to achieve these goals by switching our lighting off automatically when it is not required and switching it on when it is needed. Passive Infrared technology combined with Photocell control ensures that the minimum amount of energy is used. Often used outdoors, but also with indoor applications, these detectors are used to control lighting in domestic, commercial, retail and service areas.

Areas of application often include: Gardens, Decking areas, Patios Paths & walkways, Passages, Driveways, Parking areas, loading bays, Stairways, Sheds & Garages

Features

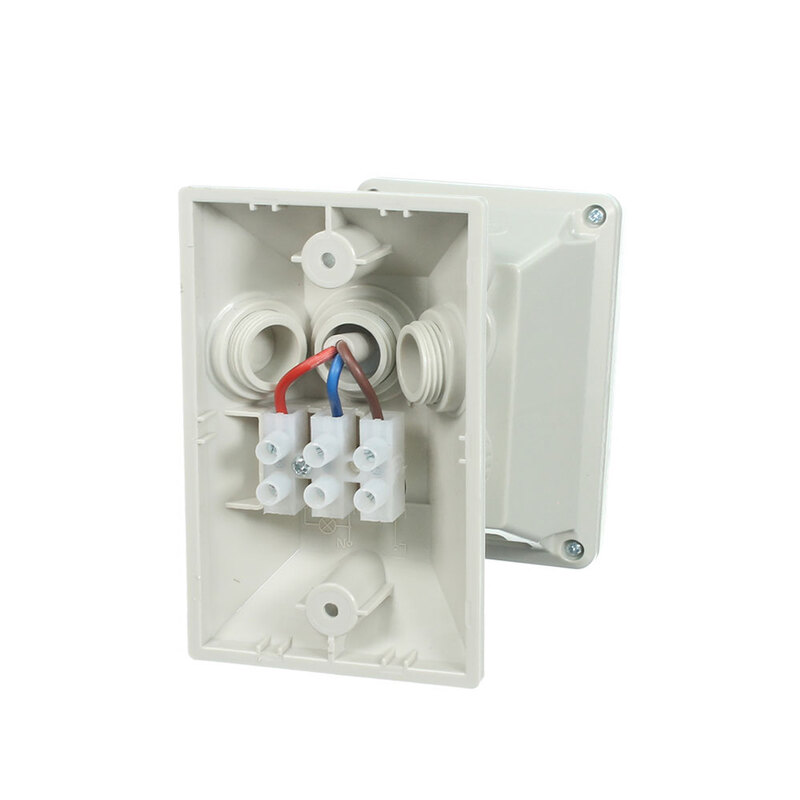

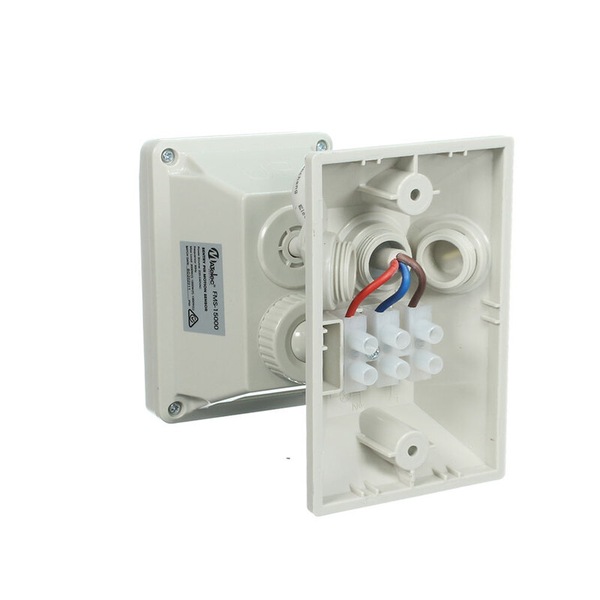

• Surface Mounted / 3 wire
• Input Voltage: 220-240V 50/60Hz
• Rated Load: 1000w (LED), 1000W (Flourescent), 2000w (Incandescent)
• IP66 Rated
• Warranty: 3 Year replacement
• TIME dial for adjusting Time delay: 10sec-30mins
• Min LED Load 1W
• SENS dial for adjusting Detection Distance: 120 Degrees Max 18m
• The detection range will be shorter at cooler temperatures
• Installation height: 1.8m to 2.5m
• To override sensor function, switch OFF-ON, OFF-ON at wall within 3 seconds.
• To return to sensor function, turn OFF and back on ON after 3 seconds.
• Mounting screw centres 84mm
