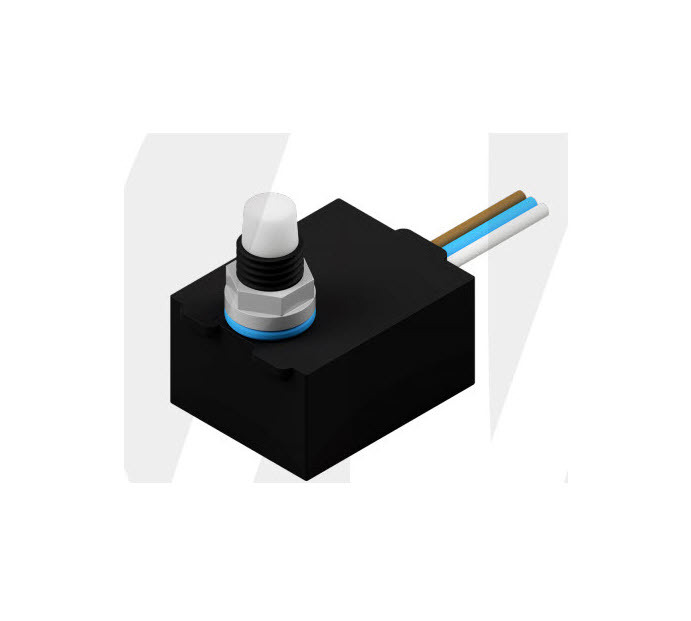

The Matelec FSW-12207 weatherproof sunset switch is used to switch outdoors lights (or indoors light when applicable) off when they are not required in daylight. In its most basic form, the unit senses outdoors light level and switches a relay on and off, thus turning the lights wired to it on or off.

If you are looking for a sunset switch that can provide maximum benefits with a minimum cost, the Matelec FSW-12207 is the perfect solution.

Product Features

• Unique N/C ‘fail on’ circuitry Compact design
• Designed for recess mounting, eg - Inside light fittings
• 5 year warranty

Specifications

• Weatherproof rating: IP54
• Switch rating: 10 Amps Voltage rating: 200 - 250V
• Frequency: 50Hz
• Rated current: Resistive - 10 Amps Inductive - 4 Amps
• Switching cycles on resistive load: 200 000
• Volt drop after 1000c at 1800VA load: 100mV
• Light intensity for switch ON: 60 Lux
• Light intensity for switch OFF: 90
• Lux Cut out hole: 9.5mm
