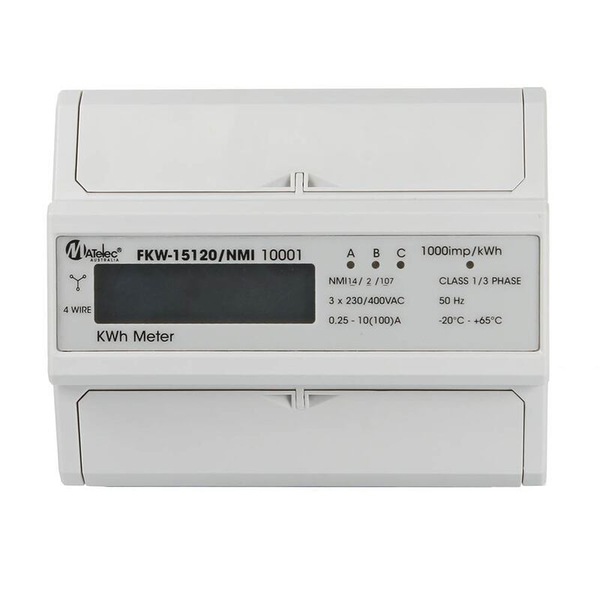

Matelec NMI Approved Three Phase 100A Din Rail KWH Meter

Image 1
Hurry! 1 items left!
$445.50

Collect 445 Everyday Rewards points

Log in to MyDeal to link your card
Secure ways to pay at checkout

Popular Products

Features

  • New slimline design
  • Digital LCD display
  • Polyphase - Suitable for 1, 2 and 3 phase metering
  • Tamper seal kit available
  • 1 year warranty
  • Note - Not suitable for solar applications

Specifications

  • Materials: Housing - Fire resistant ABS
  • Weatherproof rating: IP51
  • Display: Backlit blue LCD
  • Accuracy class: Class 1
  • Insulation class: Class 2
  • Maximum rated current: 100 Amp
  • Operational current range: 0.25 - 100 Amp
  • Over current withstand: 1000 Amp for 0.1s
  • Nominal voltage: 230/415Vac
  • Operating frequency: 50 - 60Hz
  • Maximum cable capacity: 25mm2 (neutral 2.5mm2)
  • Operating temperature: -20°C to 65°C
  • Test output flash rate: 1000 impulses per kWh
  • Power supply indicator: Mains power ON
  • Consumption indicator: Flashing on load
  • Conforms to: IEC62052-11, IEC62053-21
  • Dimensions: 100mm (H) x 122mm (W) x 65mm (D) 7 Modules

GTIN: 9338999004923
