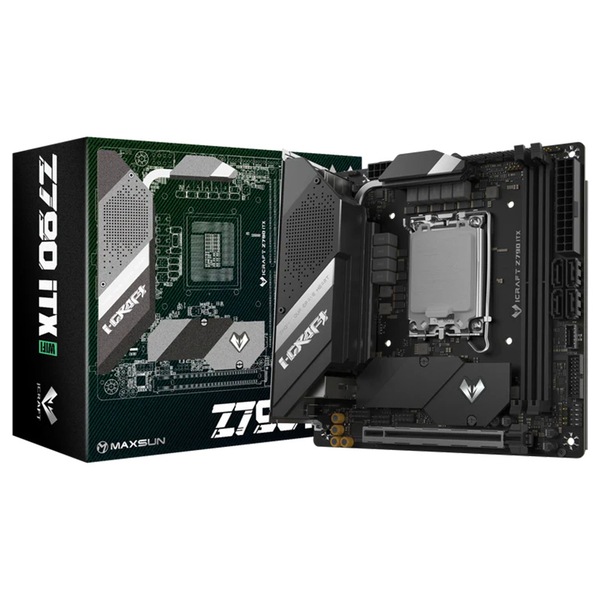

MAXSUN iCraft Z790 WIFI LGA1700 ITX Motherboard (iCraft Z790ITX WIFI)

Image 1
Hurry! 5 items left!
$450.20

Collect 450 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout






SPECIFICATIONS:

Chipset

INTEL Z790

CPU

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

LGA 1700

Memory

2x DDR5, Maximum Memory Capacity 96GB

Memory Support DDR5 7400+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Supports Intel XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Onboard graphics

1x DisplayPort 1.4

1x HDMIport

*HDMI port supports up to 4K@30Hz

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Expansion slot

1x PCIe 5.0 x16 slot

Storage

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

*Front USB (Total 6 ports)

1x USB 3.2 Gen2 Type C

2x USB 3.2 Gen1 Type A

3x USB 2.0

*Rear USB (Total 9 ports)

1x USB 3.2 Gen2x2 Type C

4x USB 3.2 Gen1 Type A

4x USB 2.0

LAN

Realtek RTL8125BG 2.5G LAN

Wireless / Bluetooth

Intel Wi-Fi 6E AX211

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3

Audio

Realtek ALC897 Codec

5.1-Channel High Definition Audio

Internal I/O

1x 24-pin Power Connector(ATX_PWR)

1x 8-pin Power Connector(CPU_PWR)

1x CPU Fan

1x AIO_PUMP

2x System Fan

2 x M.2 slots (Key-M)

4x SATA 6Gb/s ports

1x M.2 slots (Key-E)

2x 5V 3-Pin ARGB

1x 12V 4-Pin RGB

1x 2-pin Clear CMOS

1x Front Audio

1x SPDIF OUT

LED feature

4x Distributed Debug LED

Operating system

Support for Windows 11 64-bit, Windows 10 64-bit

Form factor

ITX

172mm x 172mm




SKU: 81085

Estimated Delivery Time Frame:2-15 business days

Ask a Question About This Product

Reference ID: 13481429
