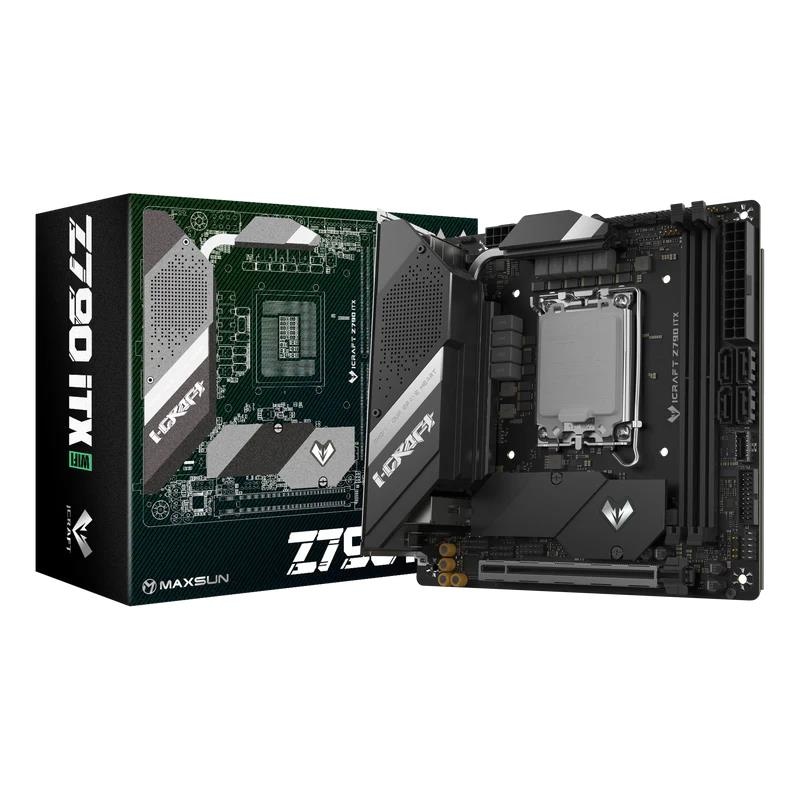

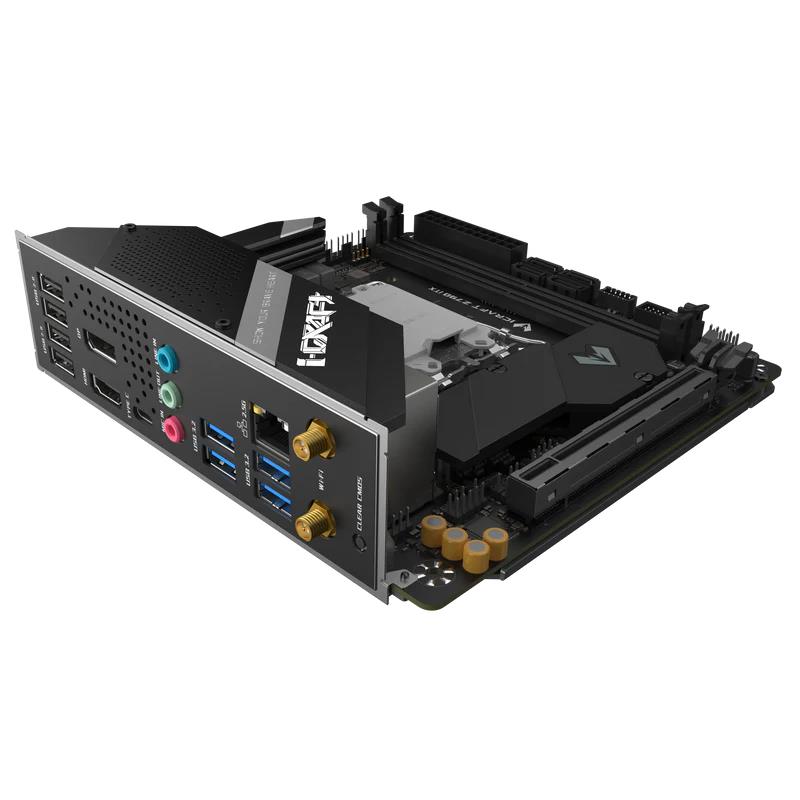

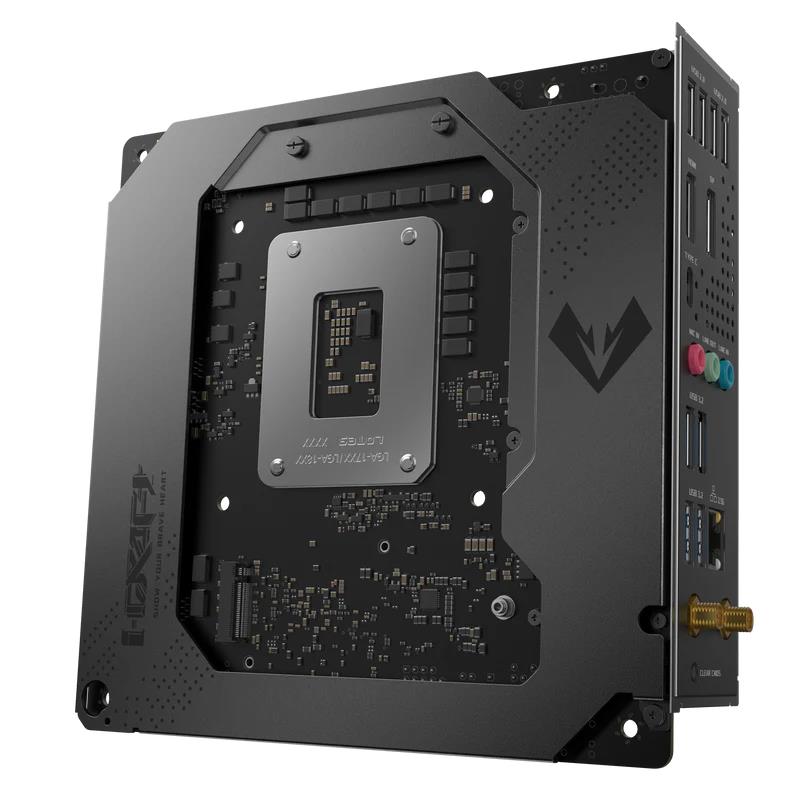

MAXSUN iCraft Z790ITX WIFI Gaming Motherboard

Model: MS-IC-Z790ITX-WIFI

Overview:

Intel Core 14th Gen CPU

- 9 Phases Power Supply

- 90A Dr.Mos

- RAA229131 PWM

- Hybrid cooling system

- DDR5 XMP 7400MHz+

- 2.5G LAN

- 2*20G Type-C

Specifications:

- Audio: Realtek(R) ALC897 Codec, 5.1-Channel High Definition Audio

- Chipset: INTEL Z790

- Form Factor: ITX 172mm x 172mm

- I/O Connectors: *Front USB (Total 6 ports): 1x USB 3.2 Gen2 Type C, 2x USB 3.2 Gen1 Type A, 3x USB 2.0; *Rear USB (Total 9 ports): 1x USB 3.2 Gen2x2 Type C, 4x USB 3.2 Gen1 Type A, 4x USB 2.0

- Integrated CPU Graphics: 1x DisplayPort 1.4, 1x HDMI(TM)port

- LAN: Realtek(R) RTL8125BG 2.5G LAN

- PCI Slots: 1x PCIe 5.0 x16 slot

- Processor Support: Supports 12th/13th Gen Intel(R) Core(TM) Processors, Pentium(R) Gold and Celeron(R) Processors

- RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

- RAM Type/Bus/Max: 2x DDR5, Maximum Memory Capacity 96GB; Memory Support DDR5 7400+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Supports Intel(R) XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode

- Socket: LGA 1700

- Storage Interface: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports

- Warranty: Three-Year Limited Warranty

- Wireless & Bluetooth: Intel(R) Wi-Fi 6E AX211, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth(R) 5.3
