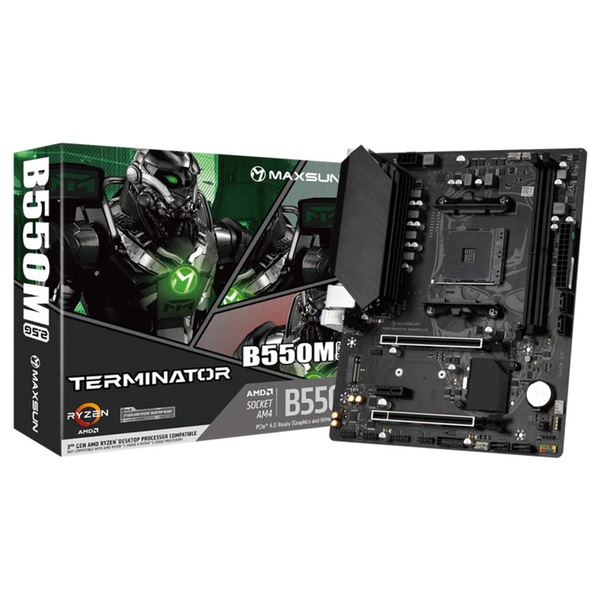

MAXSUN Terminator B550M 2.5G AM4 mATX Motherboard (Terminator B550M 2.5G)

Image 1
Best Price in the Last 14 Days
Hurry! 5 items left!
$136.60
You save $22.40Was $159

Collect 136 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout






SPECIFICATIONS:

CHIPSET

AMD B550 Chipset

CPU (Max Support)

AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors

MEMORY

2x DDR4, Maximum Memory Capacity 64GB

Memory Support

DDR4 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz

Supports AMD A-XMP OC

Supports Dual-Controller Dual-Channel mode

ONBOARD GRAPHICS

1x VGA

*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

1x HDMIport

*HDMI port supports up to 4K@30Hz

*Graphics specifications may vary between CPU types.

EXPANSION SLOT

1x PCIe 4.0 x16 slot

1x PCIe 3.0 x4 slot

1x PCIe 3.0 x1 slot

STORAGE

M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

*Front USB (Total 6 ports)

2x USB 3.2 Gen1 Type A

4x USB 2.0

*Rear USB (Total 6 ports)

2x USB 3.2 Gen1 Type A

4x USB 2.0

LAN

Realtek RTL8125BG 2.5G LAN

AUDIO

Realtek ALC897 Codec

5.1-Channel High Definition Audio

INTERNAL I/O

1x 24-pin Power Connector(ATX_PWR)

1x 8-pin Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

1x PS/2 interface

1x M.2 slots (Key-M)

4x SATA 6Gb/s ports

1x 4-Pin SPEAKER

1x Front Audio

1x COM_A Port

1x 9-Pin DEBUG_CON

1x CLR CMOS

LED FEATURE

Without Debug LED

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

FORM FACTOR

M-ATX

245mm x 200mm




SKU: 81094
