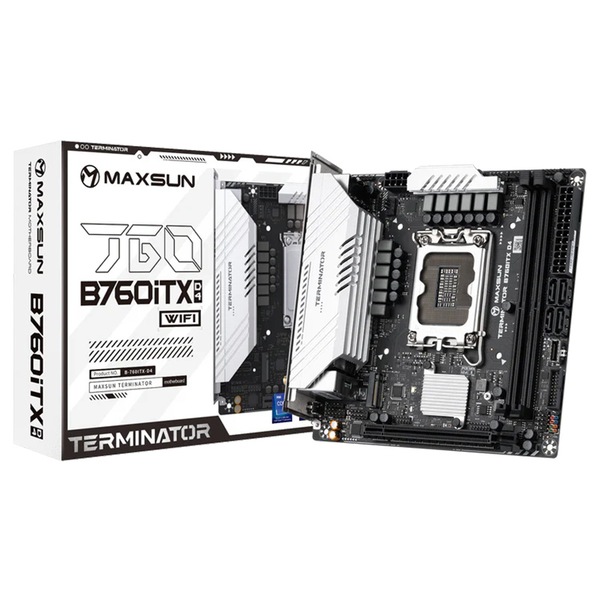

MAXSUN Terminator B760ITX D4 WIFI LGA1700 ITX Motherboard (Terminator B760ITX D4 WIFI)

Image 1
Shop More Products






SPECIFICATIONS:

Chipset

INTEL B760

CPU

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA 1700

Memory

2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz

Supports Intel® XMP 2.0 OC

Supports Dual-Controller Dual-Channel mode

Onboard graphics

1x DisplayPort 1.4

1x HDMI™port

*HDMI™ port supports up to 4K@30Hz

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Expansion slot

1x PCIe 5.0 x16 slot

Storage

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

*Front USB (Total 5 ports)

1x USB 3.2 Gen1 Type C

2x USB 3.2 Gen1 Type A

2x USB 2.0

*Rear USB (Total 9 ports)

1x USB 3.2 Gen1 Type C

4x USB 3.2 Gen1 Type A

4x USB 2.0

LAN

Realtek® RTL8125BG 2.5G LAN

Wireless / Bluetooth

Intel® Wi-Fi 6E AX211

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3

Audio

Realtek® ALC897 Codec

5.1-Channel High Definition Audio

Internal I/O

1x 24-pin Power Connector(ATX_PWR)

1x 8-pin Power Connector(CPU_PWR)

1x CPU Fan

1x PUMP Fan

2x System Fan

2 x M.2 slots (Key-M)

4x SATA 6Gb/s ports

1x CLR_CMOS

1x 4-Pin BUZZER

1x Front Audio

1x COM Port

1x 9-Pin JDEBUG

1x TPM pin header(Support TPM 2.0)

1x 3-Pin SPDIF

LED feature

4x Distributed Debug LED

Operating system

Support for Windows® 11 64-bit, Windows® 10 64-bit

Form factor

ITX

170mm x 170mm




SKU: 81087

Reference ID: 13481428
