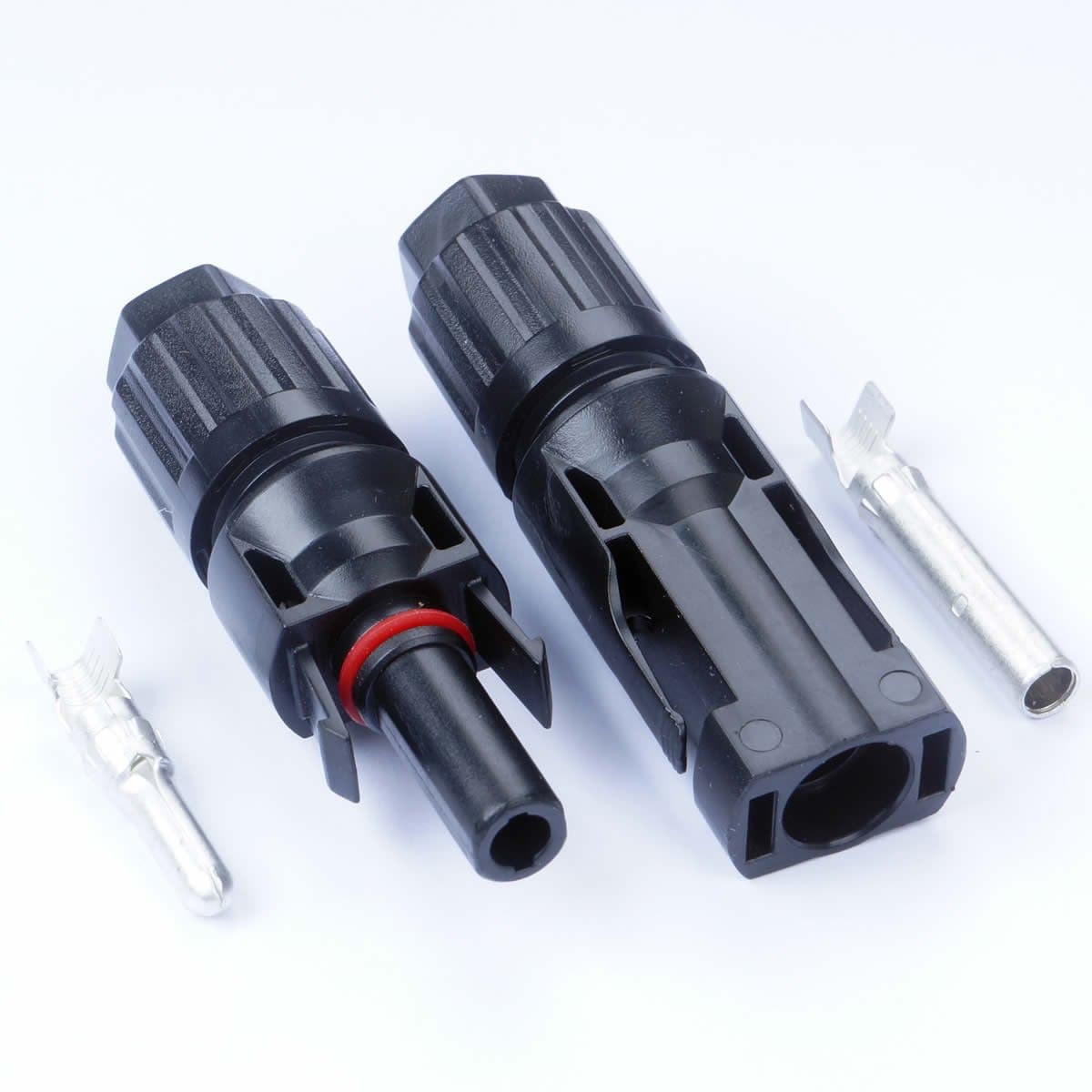

MC4 Solar Panel Connectors Male Female Set TUV IP67 30A PV Photovoltaic WaterProof
Come in Pairs ( 1 Pair = 1 Male House + 1 Female House + 1 Positive terminal + 1Negative Terminal)

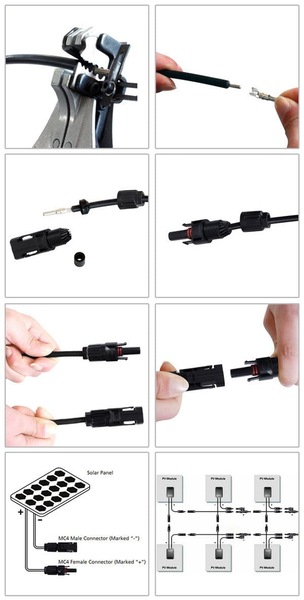

1) simple, safe, quick effective field assembly
2) Low transition resistance
3) Innovatively sealed, waterproof and dust resistant design: IP67
4) High current and voltage carring capacity
5) Self-locking design, high mechanical endurance
6) Excellent plastic material, UL94-V0 fire rating, anti-aging, waterproof, and resistance to ultraviolet radiation for long-term outdoor application

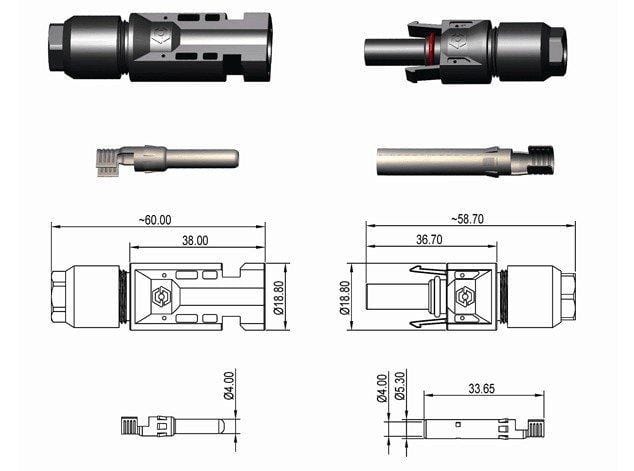

Complete connector include | Male house, female house, positive and negative terminal |
Insulation material: | Polycarbonate |
Contact material | Copper, Tin plated |
Contact resistance | Less than 3m oHm |
Fixed form | HFW |
Rated current | 30A |
Rated voltage | 1000V |
Test voltage | 6000 V (50Hz, 1Min) |
Degree of protection | IP67 |
Safety class | 2 |
Flame calss | UL94-V0 |
Insertion force | Less than 50N |
Withdrawal force | More than 300N |
Ambient temperature range | -40 degree - +90 degree |
Suitable cable | 2.5-6.0mm2 AWG14/12/10 |
