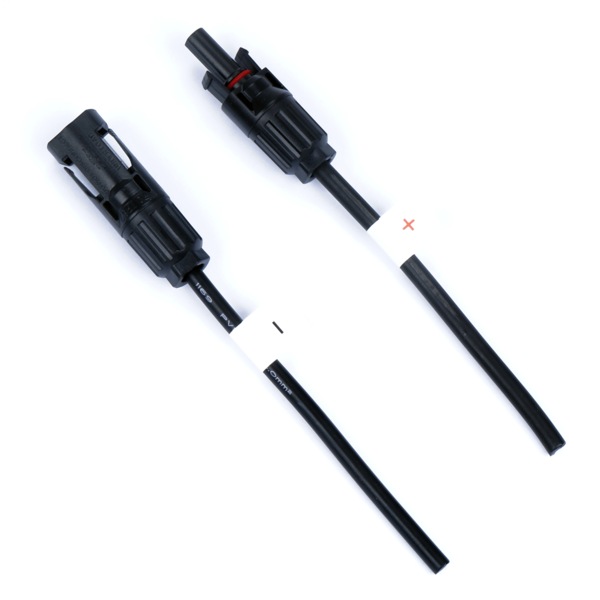

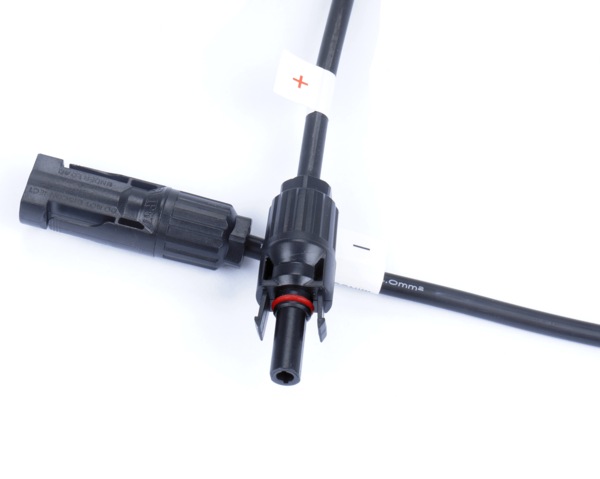

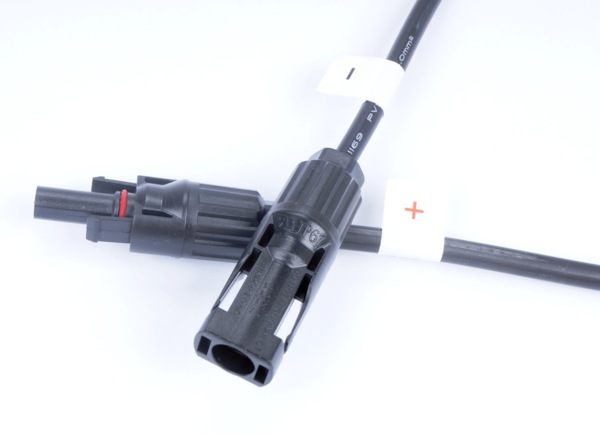

Come in Pairs ( 1 Pair = 1 Male Connector with 10cm cable + 1 Female Connector with 10cm cbale)
The following information is about the MC4 connectors we use:
1) simple, safe, quick effective field assembly
2) Low transition resistance
3) Innovatively sealed, waterproof and dust resistant design: IP67
4) High current and voltage carring capacity
5) Self-locking design, high mechanical endurance
6) Excellent plastic material, UL94-V0 fire rating, anti-aging, waterproof, and resistance to ultraviolet radiation for long-term outdoor application
|
Complete connector include |
Male house, female house, positive and negative terminal |
|
Insulation material: |
Polycarbonate |
|
Contact material |
Copper, Tin plated |
|
Contact resistance |
Less than 3m oHm |
|
Fixed form |
HFW |
|
Rated current |
30A |
|
Rated voltage |
1000V |
|
Test voltage |
6000 V (50Hz, 1Min) |
|
Degree of protection |
IP67 |
|
Safety class |
2 |
|
Flame calss |
UL94-V0 |
|
Insertion force |
Less than 50N |
|
Withdrawal force |
More than 300N |
|
Ambient temperature range |
-40 degree - +90 degree |
|
|
