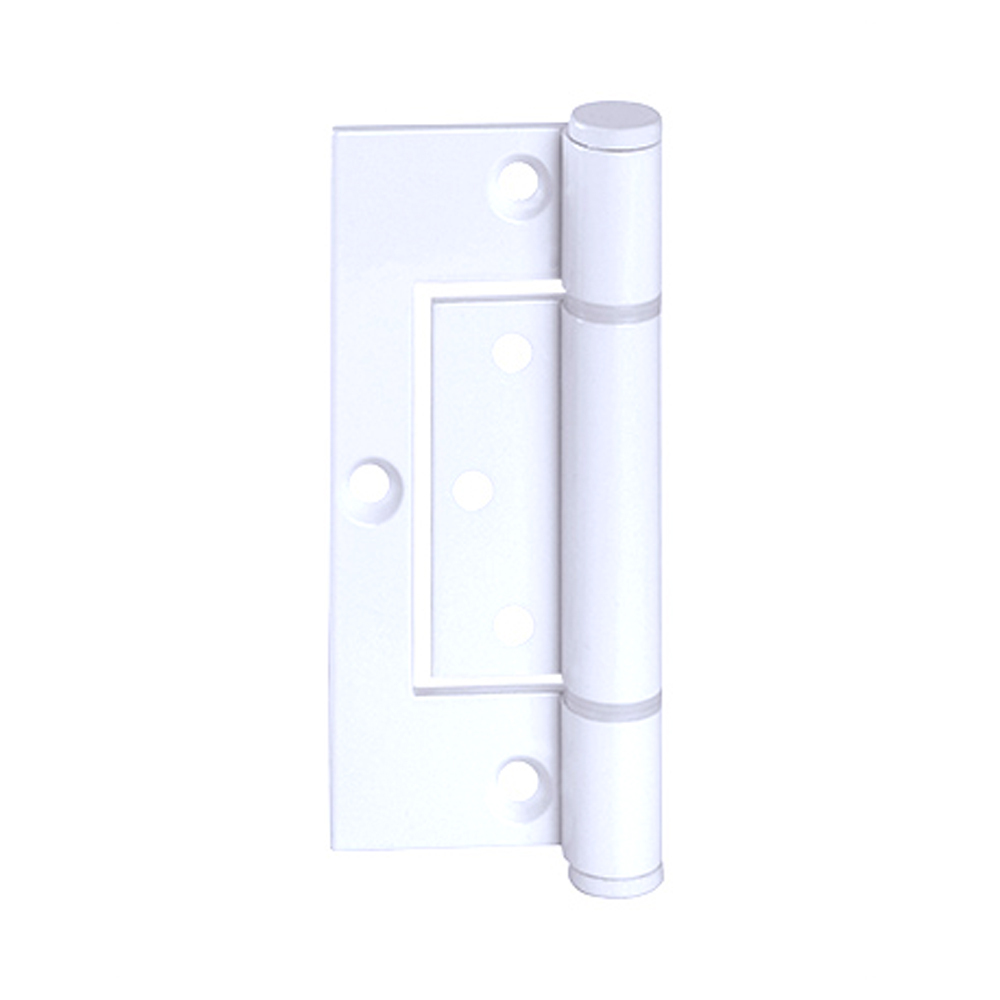

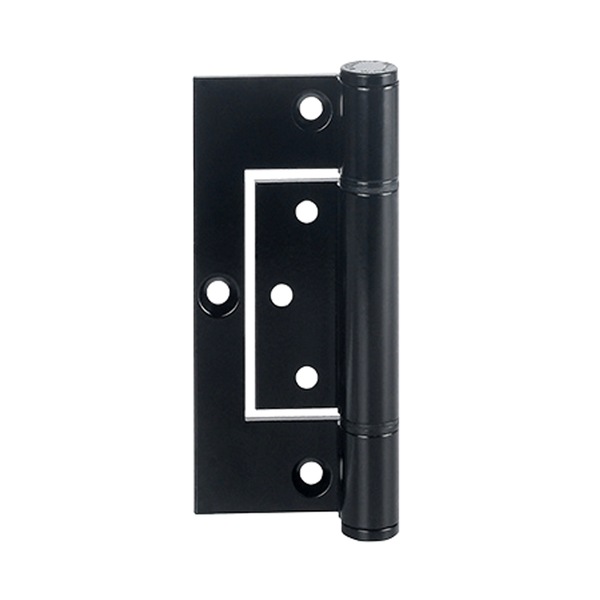

McCallum Aluminum Medium Duty Interfold Hinge Offset Round Knuckle 100mm

McCallum Aluminum Medium Duty Interfold Hinge
A167SNA

Interfold Hinge used for concealed, interior, and partial doors, as well as providing sufficient closing force for wood and lightweight metal doors.

Interfold Hinge Function - suitable for either centre pocket or front edged glazing systems.

Features:

• Suitable for aluminum entrance doors in medium usage situations
• Suitable for either centre pocket or front edge glazing systems
• Suitable for some timber door applications
• Pre drilling of the holes in the timber may be required
• Locator allows for fast fixing

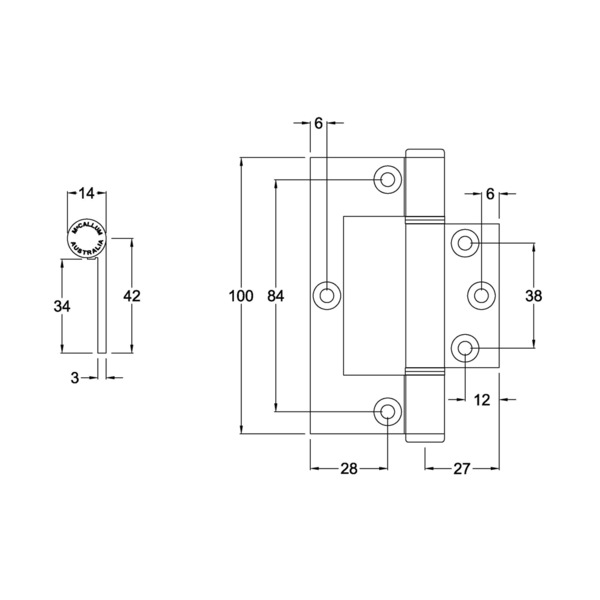

Specification:

• Door Thickness: Minimum 35mm
• Overall Length: 100mm
• Width: 34mm
• Depth: 3mm
• Material: High strength Aluminium Alloy T6 minimum tensile 254 mpa
• Hinge Pin: 4.7 diameter 304 Stainless Steel
• Bushes: Black Flanged nylon
• Knuckle: Round Offset - Medium Duty
• Endcaps: Aluminium Pressed Interference fit
• Hinge Positioning Locator: Yes
• Maximum Weight Capacity: 20kg’s – 3 Hinges
• Finish: Satin Natural Anodised

Installation Guide Only:

• As a guide doors: o 2040 high x 820 up to 20kg – 3 hinges
• Recommended that the minimum of 3 hinges be used with the top hinge located as high as possible
• Where door closers are or to be installed and or higher traffic doors a fourth hinge may be required

Fixing:

• Fastening screws supplied
• Aluminium fixings - 10G x 12mm, 304SS undercut countersunk self-tapping Phillips drive screw
• Pop Rivets are NOT RECOMMENDED
