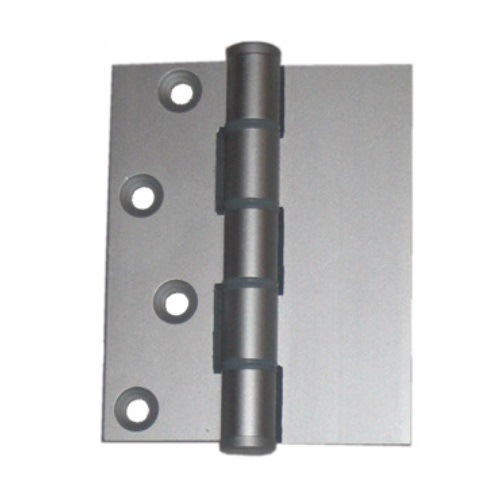

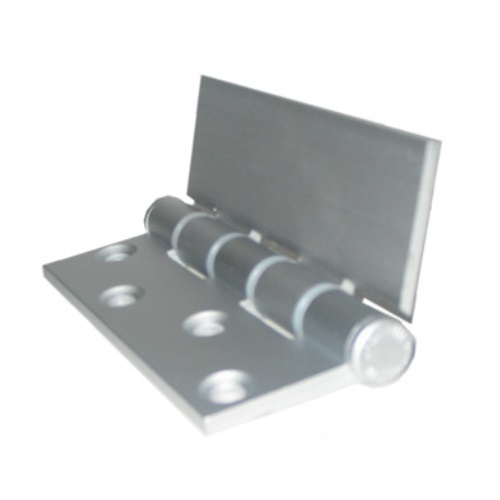

McCallum Aluminium Concealed Fix Hinge
A143

1x Hinge

Application:
Timber door to aluminium jamb.

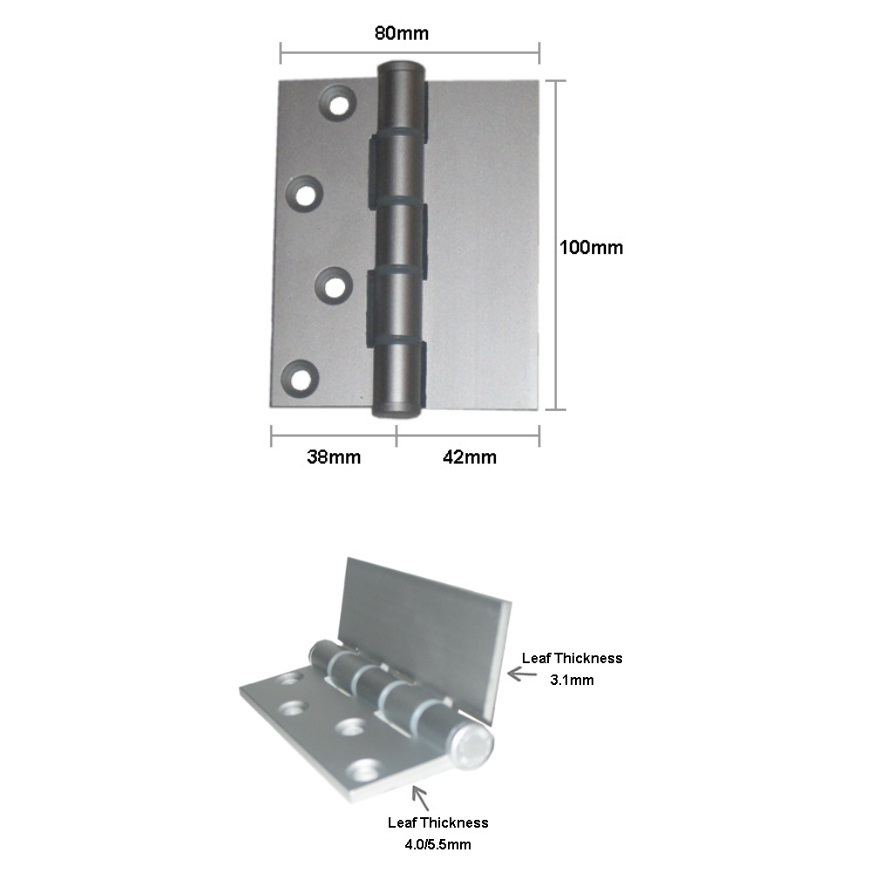

Specifications:

Alloy: High strength T.6 minimum tensile 254 mpa.
Pin Diameter: 4.7mm stainless steel with machined chamfer both ends.
Bushes: Flanged nylon.
Knuckle: Round.
Aluminium Endcaps: Pressed-in interference fit.

Installation Guide Only:

Door thickness : Minimum 35mm.
When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage a fourth hinge may be required.
Standard Door : 2040 high x 820 wide x 20 kg – 3 hinges.

Fixing
Fastening screws not supplied.
Concealed fix.
Pop rivets are not recommended.
