McCallum Lift Off Hinge Non Handed 100x82x3mm Stainless Steel S203

McCallum Lift Off Hinge Non Handed 100x82x3mm Stainless Steel S203

Price	$8.83
	Collect 8 Everyday Rewards points Create a MyDeal Account or Login to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	See delivery details

Quantity

Add to wishlist

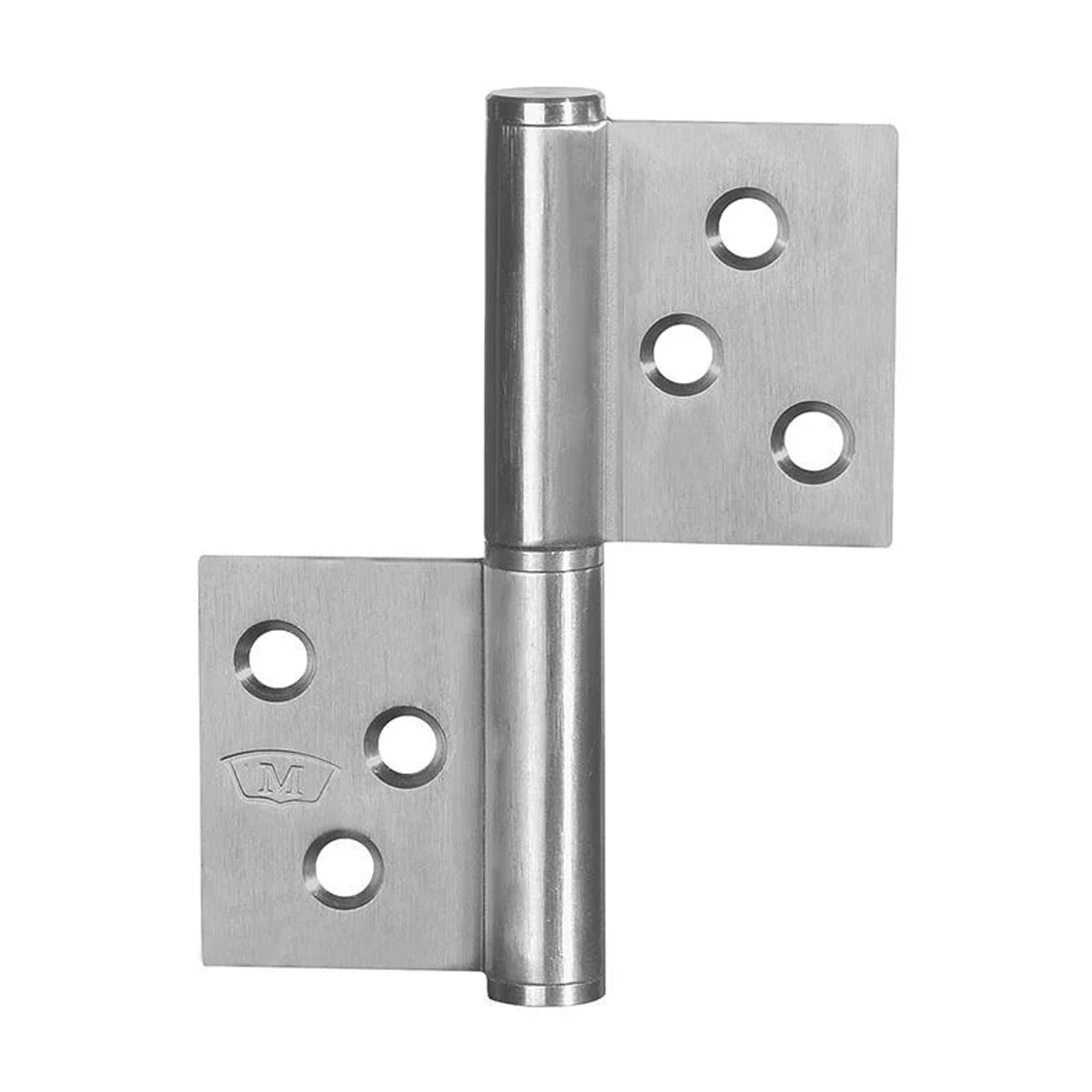

McCallum Stainless Steel Lift Off Hinge
S203

Lift Off Hinge can be installed to inward opening doors. Most common building solution used for access into fully enclosed sanitary compartments.

Lift Off Hinge Function - a mechanical bearing that allows doors to pivot on one edge when they open and close, allowing for limited rotational movement of the object to which it is attached.

Features:

Suitable for timber and aluminium doors or frames
Universal fitting means application for both left and right handed doo
Fastening screws supplied
Pop rivets are not recommended

Specifications:

Hinge Type: Liff Off
Material: Stainless Steel 304 Grade
Knuckle: Round
Hinge Pin: 6.9mm
Endcaps: Pressed-in interference fit
Material: Stainless Steel 304 Grade
Handing: Non- Handed
Pin Length: 15mm
Frame Type: Metal and Timber
Door Thickness: 25mm to 35mm

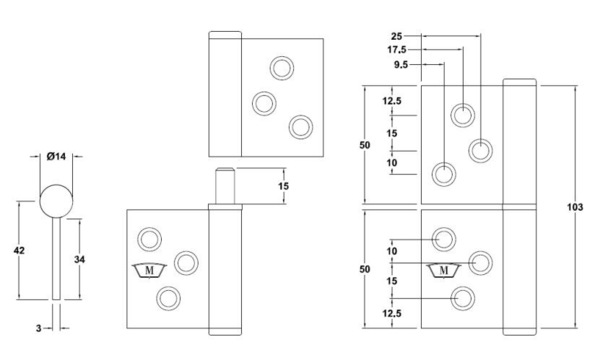

Dimension: 100mm x 82mm x 3mm
Door Weight: up to 25kg
Finish: Stainless Steel

GTIN: 2000000009964
