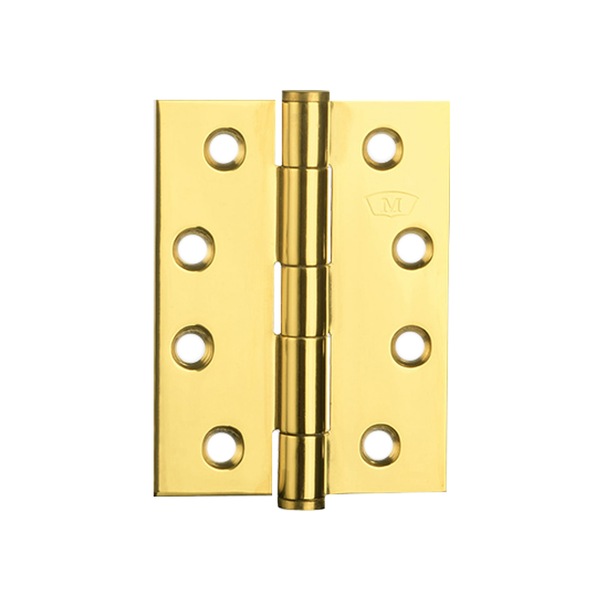

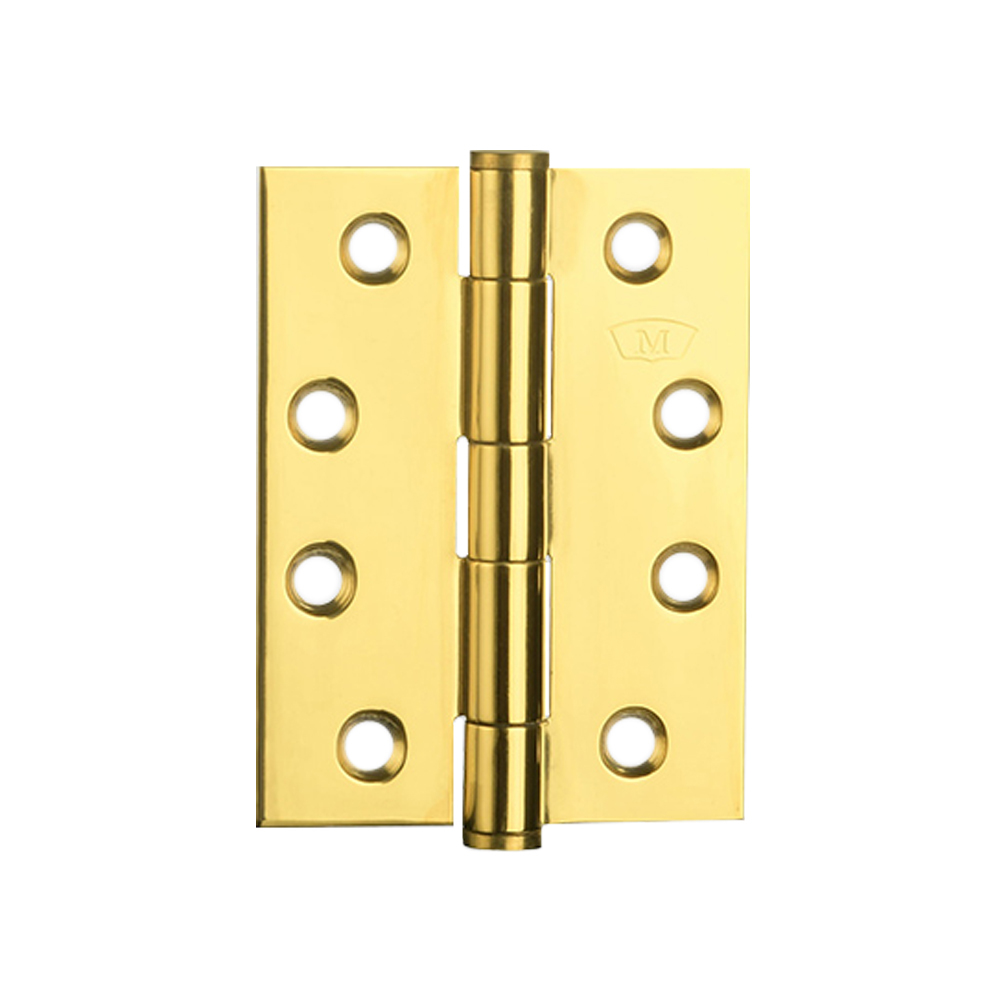

McCallum Door Butt Hinge Fixed Pin
S220PVD

Butt Hinge used to mount and operate doors on commercial properties and residential homes.

Butt Hinge Function - a form of surface mount hinge that fits on top of the door's surface and does not require mortising or recessed installation.

Features:

• Suitable for aluminium and timber doors with aluminium, steel and timber frames
• Stainless Steel 304 Grade
• Stamped with McCallum crest
• Fixed Pin

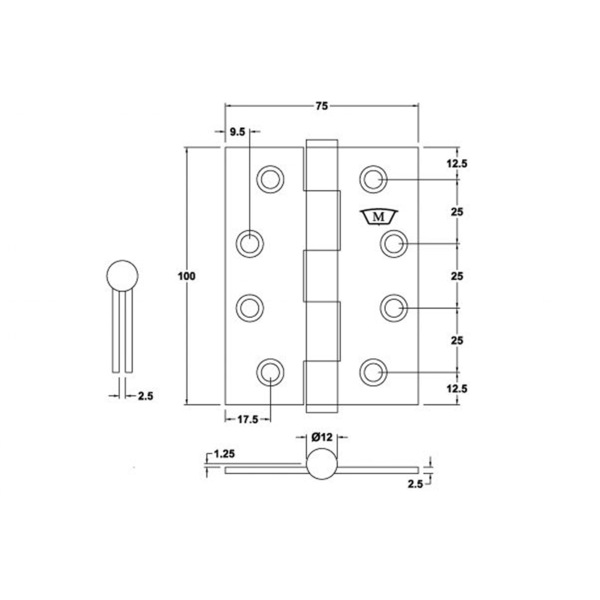

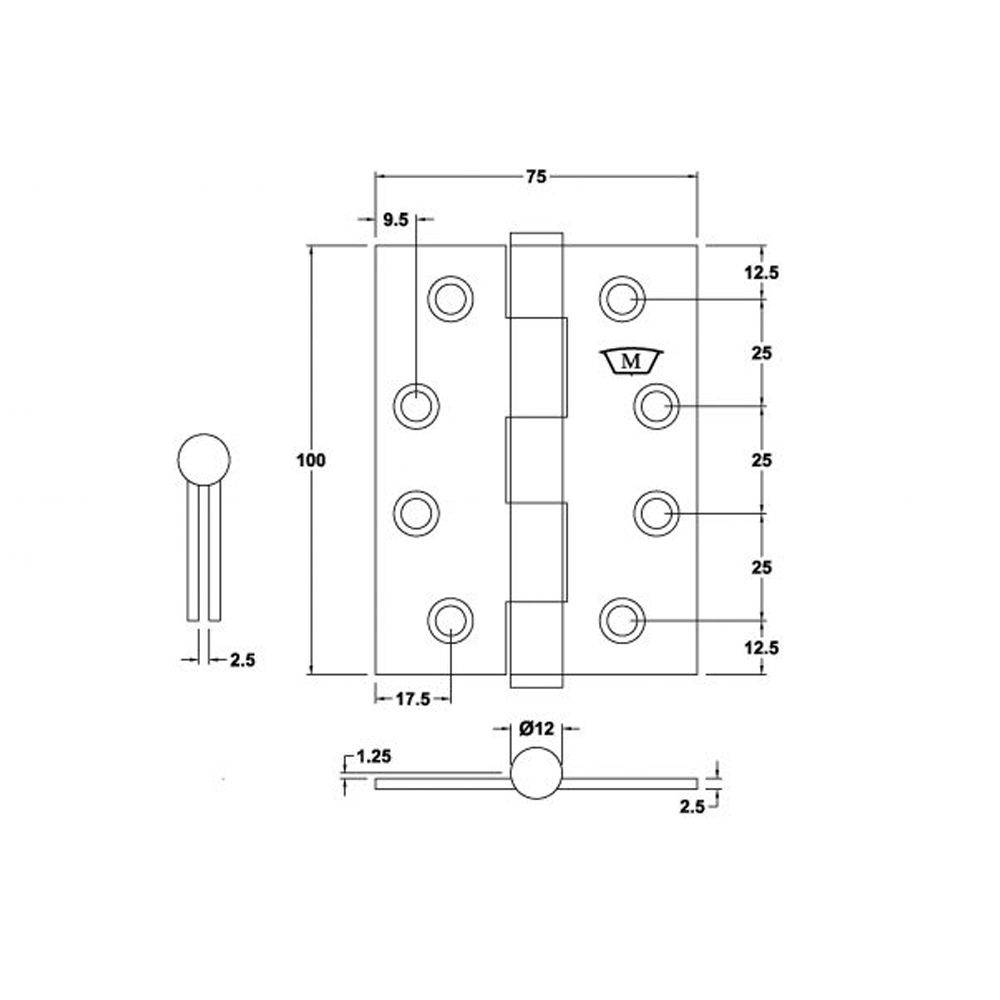

Specifications:

• Door Thickness: Minimum 35mm
• Material: Stainless Steel 304 Grade
• Pin Dia: 6.9mm - Stainless Steel 304 Grade
• Knuckle: Round
• Endcaps: Pressed-in interference fit

Installation Guide:

• When using a door closer, we recommend a minimum of 4 hinges be used, with the top hinge located as high as possible
• Standard Door: 2040 (H) x 820 (W) - 3 hinges

Fixing:

• 32mm x 10g stainless steel fasteners for timber (supplied)
• 12mm x M5 stainless steel metal fasteners (supplied)
• Pop rivets are not recommended
• Not recommended for Bi-Fold door systems
