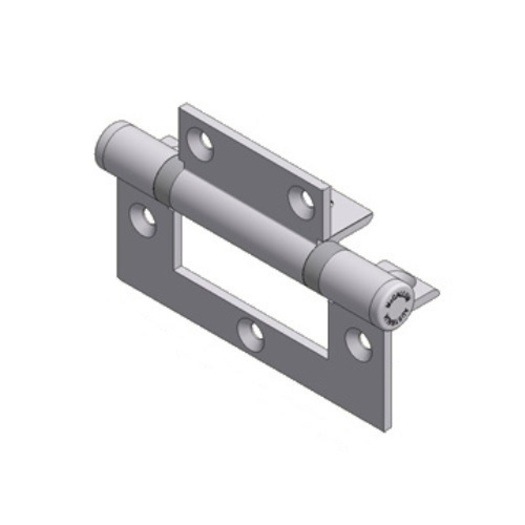

McCallum Stainless Steel Fast-Fix Hinge
S263

1x Hinge w/ screws

Application:
Suitable for aluminium entrance doors in medium usage situations.
Suitable for either centre pocket or front edge glazing systems.
Suitable for some timber door applications. Pre-drilling of the holes in the timber may be required.

Specifications:
Material: 304 grade stainless steel.
Bearings: 2 off cage & ball bearings. All 304 grade stainless steel.
Pin Dia: 6.9mm – 304 stainless steel.
Knuckle: Round.
Endcaps: Pressed-in interference knurled fit. 304 grade stainless steel.

Installation Guide Only:
Door Thickness: Minimum 35mm.
When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high
as possible. For excessive usage a fourth hinge may be required.
Standard Door: 2040 high x 820 wide x 50 kgs – 3 hinges.

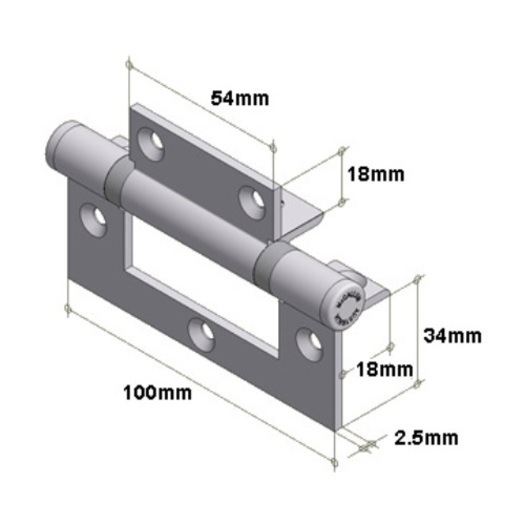

Special Note: This hinge, which is 2.5mm thick, is suitable for retro fitting where standard fast-fix hinges have failed. The wing fastening prevents the hinge from opening, and allows for a greater door weight.

Fixing
Fastening screws supplied.
Two directional.
Pop rivets are not recommended.

Finish:
Satin stainless steel.
