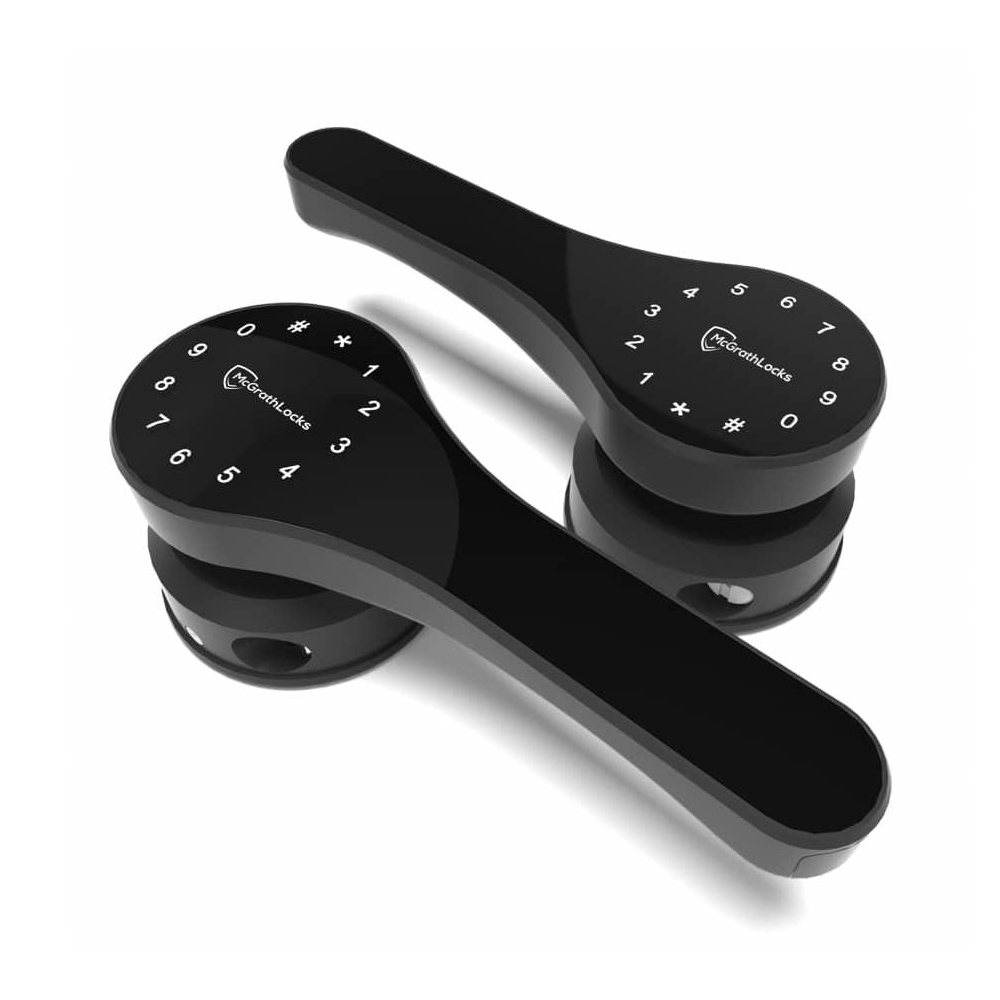

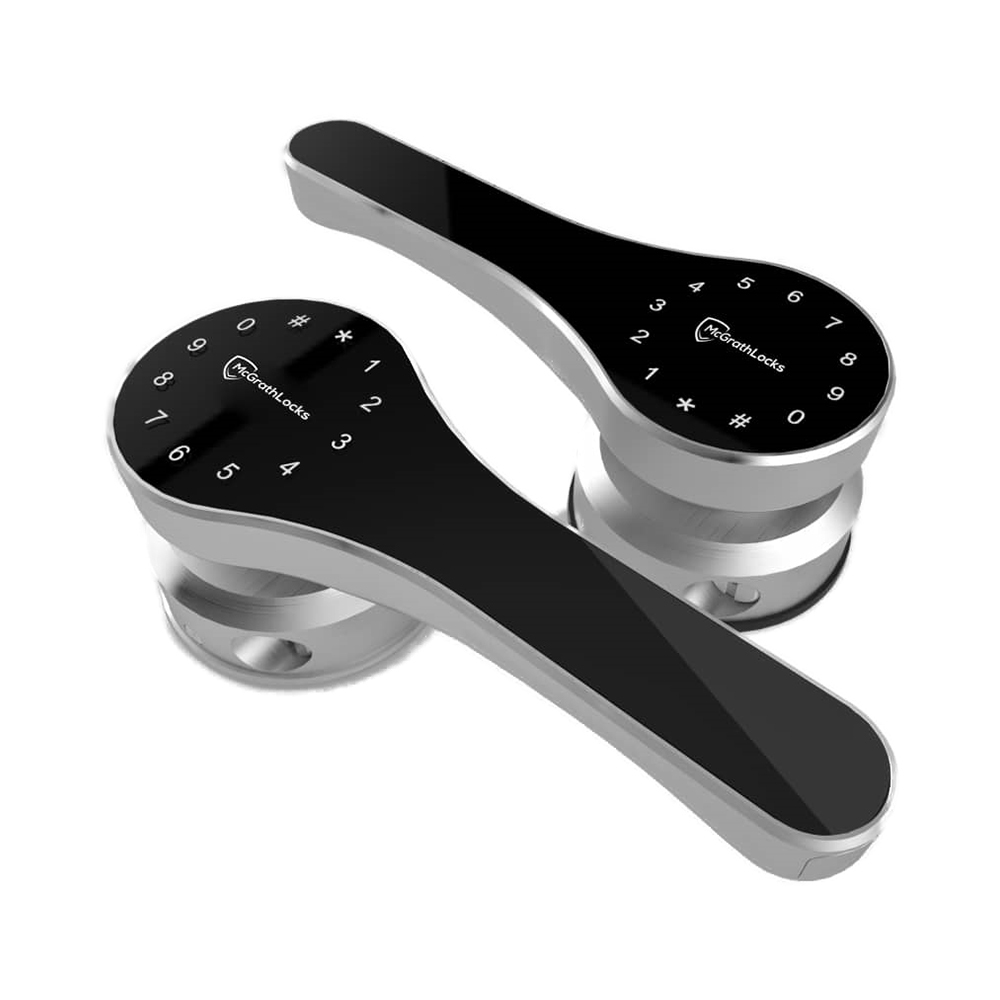

McGrath Ascot Double Sided Digital Gate Lock
ML-ASCOT-BLK-T-60

Digital Door Lock designed for medium to heavy duty applications. Its full size lever handles and its large ## alphanumeric keypad enables to control access in a wide variety of applications.

Digital Door Lock Function - The door can be unlocked by entering the correct code on the digital keypad (allowing keyless entry).

• McGrath Digital Locks adopt the latest automatic technology to unlock and lock automatically without hands.
• If you connect your smart lock to the WiFi network via a gateway, your able to control your locks from anywhere in the world at anytime.
• McGrath Locks now offers a range of residential locks, decoders and RFID cards.
• These elegant, streamlined stainless steel designs will ensure ease of access and top security for your properties.
• Constructed using the finest materials to incorporate the maximum standards in durability, quality and design

Features:

• To suit gates, internal doors and any applications that require a digital lock to be locked from either side
• Comes with all the functions you know from the McGrath Lock range, TTlock APP, Bluetooth, Pin code, RFID card's and Manual Key's
• The ML-ASCOT is treated as two locks in one, the lock comes with 4 keys, (Keyed alike)
• Now both side's are always locked from inside and the outside, so that no one can reach over the fence and unlock the handle
• Designed for commercial and residential applications
• Made from aluminium alloy, zinc alloy base and glass keypad to provide that full weather rating of IP66 on each side, the ML-ASCOT is very hard wearing, very robust and anti-scratch for external use.
• IP66 waterproof it can be directly in the weather on gates and withstand the Australian harsh conditions
• Uses 4pcs AAA (Duracell Only) batteries for both internal and external handles and can last up to 12 months
• Simple installation as the MLASCOT can retro fit in a 54mm hole or fresh fit, this will take you minutes with a screwdriver as there is no wiring
• Works with the TT lock APP that provides the ability to manage all E-keys, pin code, RFID card/fobs
• Audit trail is provided in the TTlock APP records which you can also grant and control access to everyone (family, friends or neighbours), grant access for weeks, days or hours, and modify or remove access as needed, all at your discretion

Specifications:

• Battery Lifetime: 100,000 Opening Test, 12 months
• Unlocking Method: Passwords, Bluetooth, Card, WiFi
• Support System: Android - 4.3 /IOS 7.0 and above
• Platforms: TTLock, TTRenting, TTHotel
• Length of Password: 4-9 Digits
• Environment: -20 Degrees Celcius to 70 Degress Celcius
• Humidity: 10% - 97% RH
• Emergency Opening: Mechanical Key
• Passage Mode: Yes
• Bluetooth Capacity: 300 sets
• Code Capacity: 250 Codes
• Card Capacity: 1,000 Cards
• Battery & Lifetime: 4 x1.5VAAA Batteries (Each handle)
• Stand-by Power Consumption: ≤ 30mA
• Lock Type: Mortice, Tubular Latch
• Unlock Time: 1.5s
• State Current: less than 65uA
• Motor Working Current: less than 200mA
• IP Class: (IP66 External Lock Housing)
• Communication Mode: Bluetooth 5.0 BLE and above
• Card Working Frequency: 13.56MHZ
• Motor Working Current: less than 200mA
• Battery Voltage: 4.5V-8V
• Low Battery Warning Voltage: lower than 4.8V
• Type: Wooden Door, Aluminium Door, Gate, Hollow Core door
• Door Thickness: Standard 35mm - 55mm
• TTLock Remote Compatibility: Yes from firmware version ( 6.4.14.220803 ) On wards
• Finish: Matt Black
