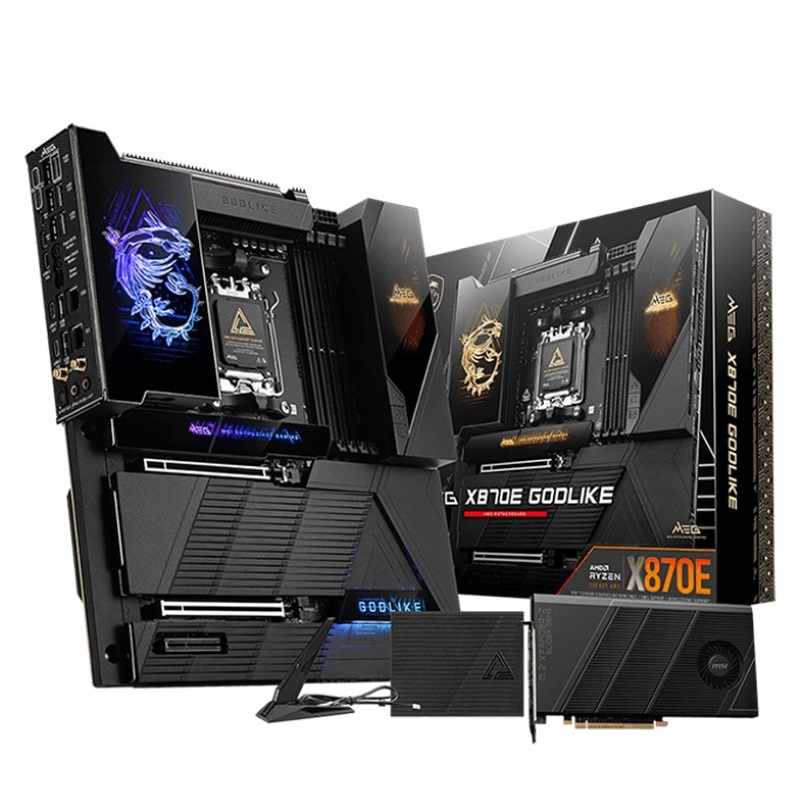

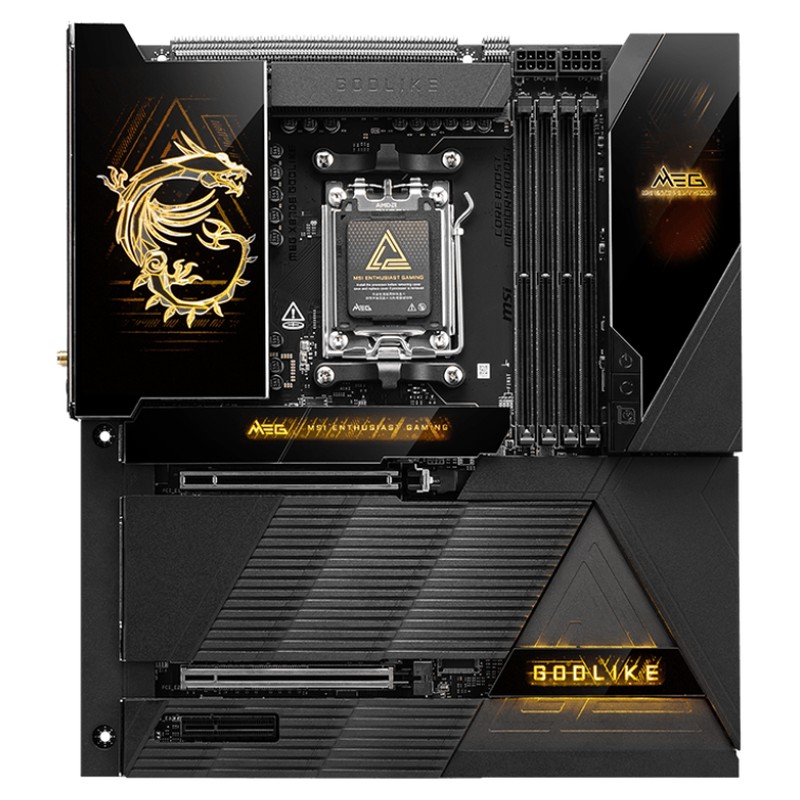

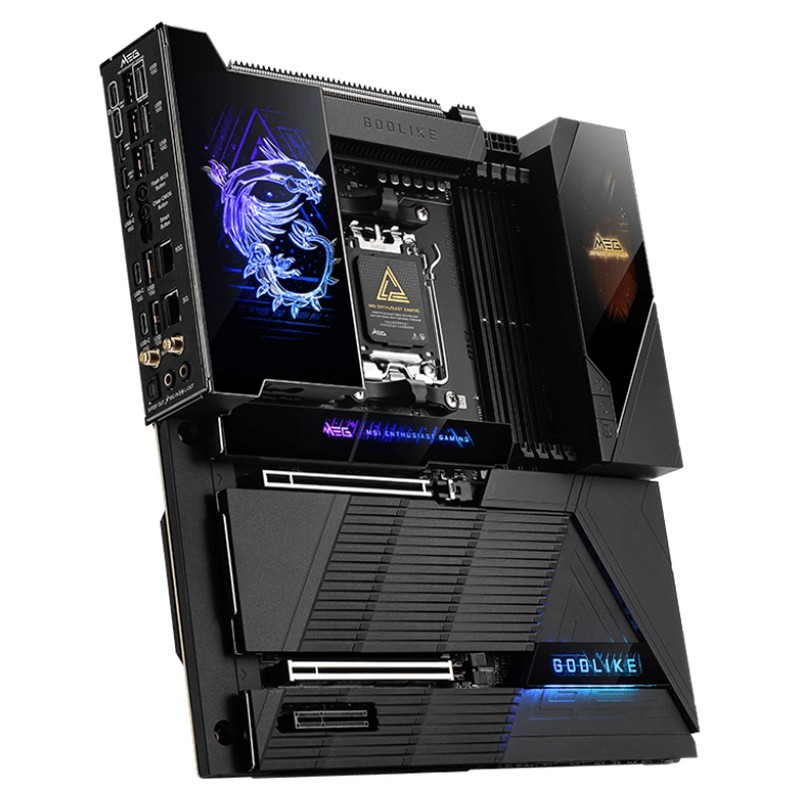

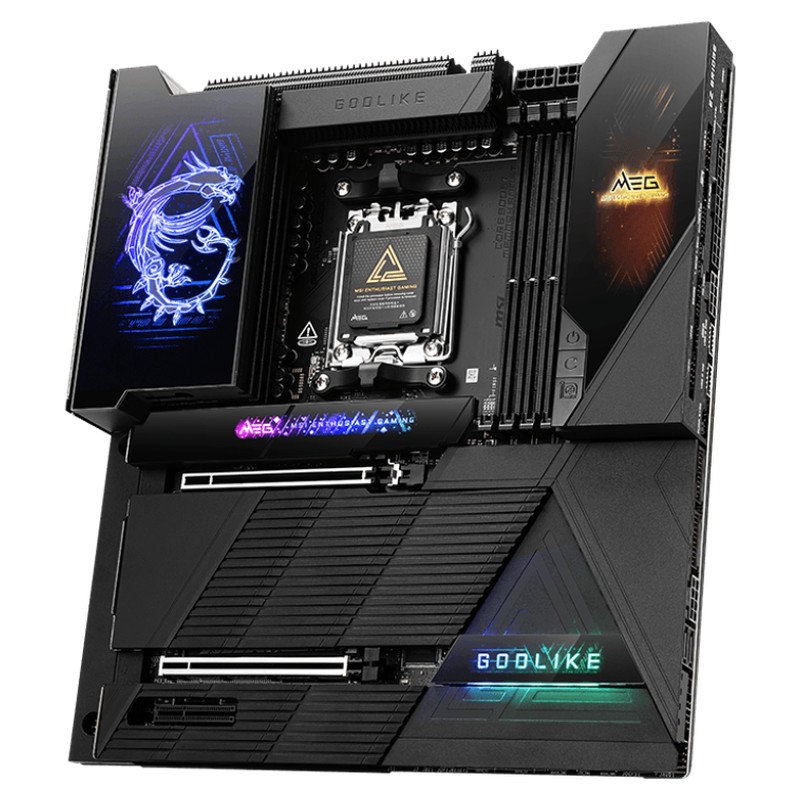

The MEG X870E GODLIKE AMD AM5 gaming motherboard features cutting-edge connectivity, including Wi-Fi 7, 10G LAN, high-speed USB and DDR5, PCIe 5.0, and M.2 Gen5. It's the ultimate gaming motherboard for AI-powered PCs and future upgrades.

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 9000+MT/s (OC)
• Dynamic Dashboard III:A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
• M.2 XPANDER-Z SLIDER GEN5:The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
• Ultra Performance:24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
• Frozr Guard:Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
• EZ DIY:EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
• Ultra Connect:10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Lightning Fast Game Experience:PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.
• Audio Boost 5 HD:Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

• Chipset :AMD X870E
• CPU :Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
  Socket AM5
• Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  Ryzen 9000 Series Processors max. overclocking frequency:
  1DPC 1R Max speed up to 8400+ MT/s
  1DPC 2R Max speed up to 6400+ MT/s
  2DPC 1R Max speed up to 6400+ MT/s
  2DPC 2R Max speed up to 6400+ MT/s
  Supports AMD POR Speed and JEDEC Speed
  Supports Memory Overclocking and AMD EXPO
  Supports Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM, Clock Driver bypass mode only*
  * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  ** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit Official MSI Website.
• Onboard Graphics :2x Type-C DisplayPortUSB4
  port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
  * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :2x PCI-E x16 slot1x PCI-E x4 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E1 & PCI_E2 slots
  Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen9000/ 7000 Series processors)
  Supports up to PCIe 4.0 x8/ x0 (For Ryzen 8700/ 8600/ 8400 Series processors)
  Supports up to PCIe 4.0 x4/ x0 (For Ryzen 8500/ 8300 Series processors)
  PCI_E3 slot
  Supports up to PCIe 4.0 x4
  * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.Please refer to the PCIe configuration table in the manual for more details.
• Audio :Realtek
  ALC4082 Codec + ESS9219Q Combo DAC/HPA7.1-Channel USB High-Performance Audio
  Supports S/PDIF output
  Supports up to 32-Bit/384 kHz playback on front panel
• Storage :7x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6GM.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
  M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
  M.2_1:
  Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
  Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
  M.2_2:
  Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
  The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
  M2_4:
  PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
  * Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card.** Please refer to the manual for M.2 SSD heatsink restrictions.
• RAID :Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
  Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  *RAID 5 configuration is only supported by Ryzen 9000 series processors.**RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.
• USB :4x USB 2.0 (Front)4x USB 5Gbps Type A (Front)8x USB 10Gbps Type A (Rear)5x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Front)2x USB 40Gbps Type C (Rear)
  * USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
  ** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen 8500/ 8300 Series processors.
• LAN :1x Marvell
  AQC113CS 10Gbps LAN
  1x Realtek
  8126 5Gbps LAN
• Internal IO :1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x Front Type-C Quick Charge Connector(PD_PWR1)1x CPU Fan2x Combo Fan (Pump_Sys Fan)1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)2x Thermal Sensor connectors(T_SEN)1x Tuning Controller connector(JDASH)1x Addressable V2 RGB LED connector (JARGB_V2)V-check point
  4x USB 2.0 ports
  4x USB 5Gbps Type A ports
  1x USB 10Gbps Type C ports
  1x USB 20Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :Wi-Fi 7 Solution
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth
  5.4**, MLO, 4KQAM
  * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 SV3.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
• LED FEATURE :1x Dynamic Dashboard III
  1x EZ Digit Debug LED
  1x EZ LED Control switch

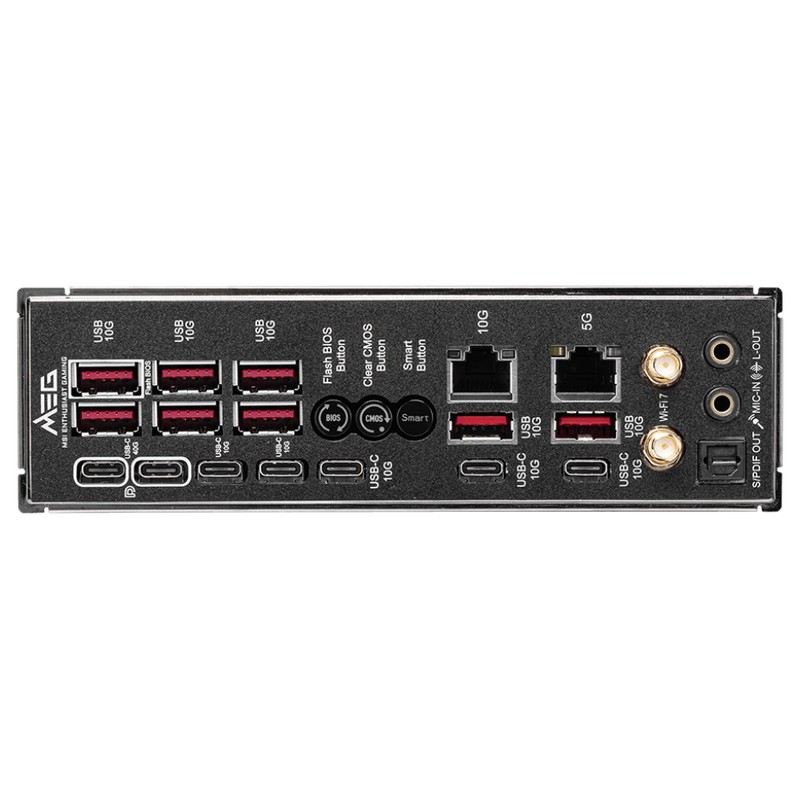

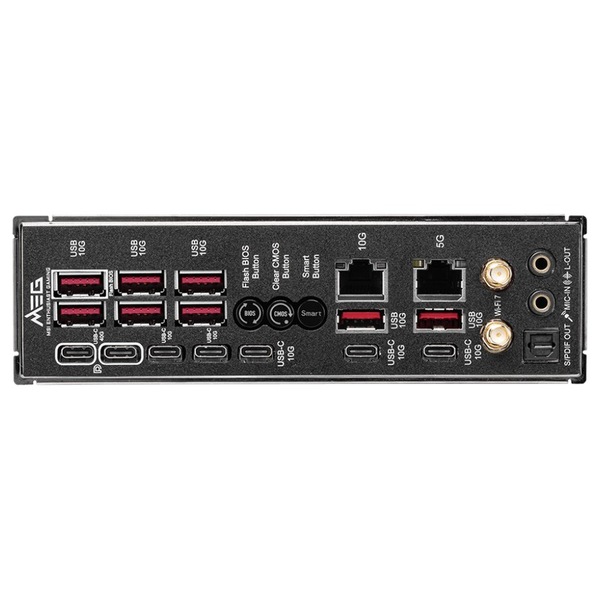

• BACK PANEL PORTS :USB 10Gbps (Type-A)
  Flash BIOS Button
  Clear CMOS Button
  Smart Button
  10G LAN
  5G LAN
  Wi-Fi / Bluetooth
  HD Audio Connectors
  USB 40Gbps (Type-C)
  USB 10Gbps (Type-C)
  Optical S/PDIF-Out
• OPERATING SYSTEM :Support for Windows
  11 64-bit
• PCB Info :E-ATX
  304.8mmx277mm
