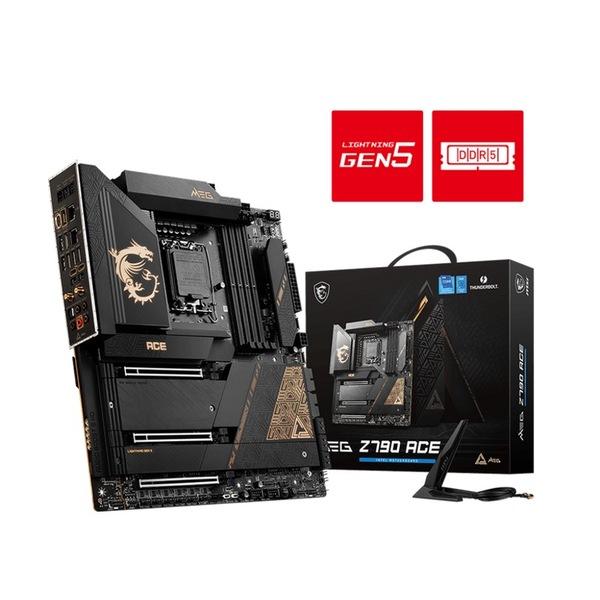

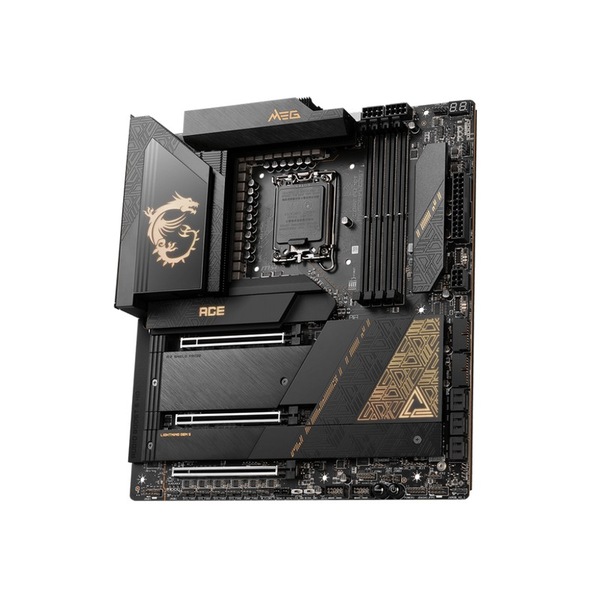

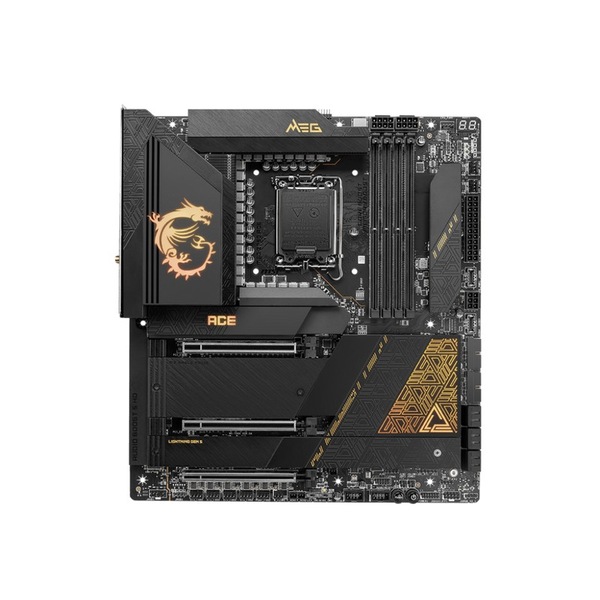

[MEG Z790 ACE] Meg Z790 Ace E-ATX Motherboard, DDR5 MB, Intel Z790, LGA1700

Image 1
Image 2
Image 3
$956.32

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Best Deal Computers

MSI MEG Z790 ACE Intel LGA 1700 E-ATX Motherboard, 4x DDR5~128GB, 1x PCI-E x 16, 1x PCI-E x 8, 5x M.2, 6x SATA, 2x USB 3.2, 4x USB 2.0, 2x USB-C

CHIPSET: INTEL Z790

CPU SUPPORT: Supports 12th/13th Gen Intel Coreâ„¢ Processors, Pentium Gold and Celeron Processors

LGA 1700

MEMORY: 4x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS: 1x Type-C DisplayPort
Supports a maximum resolution of 4K 60Hz
*Available only on processors featuring integrated graphics.
**Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT: 3x PCI-E x16 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE: 5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
6x SATA 6G port
USB: 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Front)
7x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
2x USB 3.2 Gen2x2 Type C (Front)

PCB DIMENSION: E-ATX

277mmx304.8mm

SKU: WSC-770014082650

Reference ID: 12042791
