Littlefuse Mega Fuse Holder 500a Sealed Water Resistant M8 Stud

Voltage: 32VDC

Studs: M8

Ignition Protected: SAE J1171 and ISO 8846

Ingress Protection: IP66 / IP6K9K

Operating Temperature: -50 C to +125 C

Pack Size: 1

Accessories: Includes cover, stainless steel screws & hex nuts.

Notes: Fuses not included.

Littlefuse Mega Fuse Holder 500a Sealed Water Resistant M8 Stud

Voltage: 32VDC

Studs: M8

Ignition Protected: SAE J1171 and ISO 8846

Ingress Protection: IP66 / IP6K9K

Operating Temperature: -50 C to +125 C

Pack Size: 1

Accessories: Includes cover, stainless steel screws & hex nuts.

Notes: Fuses not included.

Littlefuse Mega Fuse Holder 500a Sealed Water Resistant M8 Stud

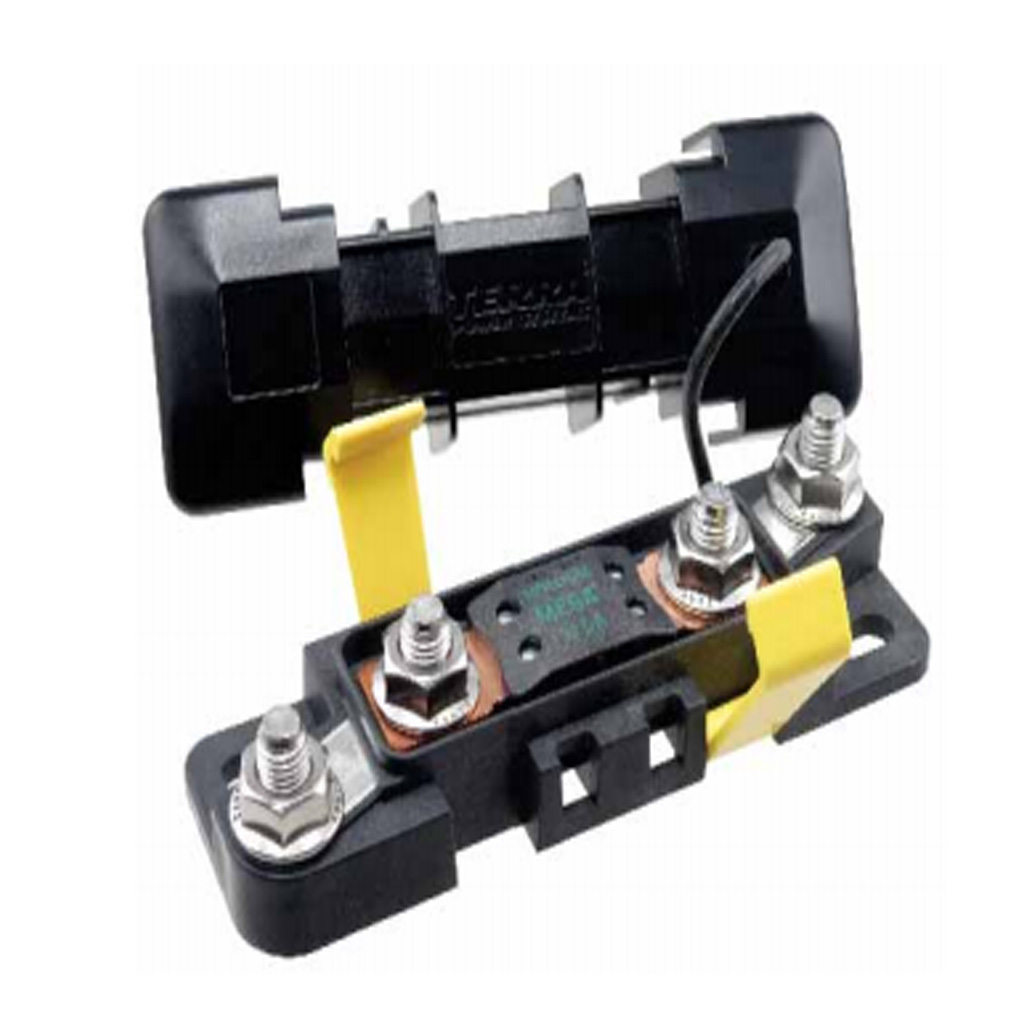

These fuse blocks feature high amperage sealed positive latching technology to form a water resistant and ignition protected assembly. The cover is retained to the base with a built in tether to ensure there
are no missing components during servicing. The base features thru-hole provisions to ensure that the unit is mounted securely to the application.

Features
Provides high amperage, in-line, main or branch Circuit Protection
in harsh or hazardous environments.
Waterproof/sealed fuse compartment provides protection from
fuse corrosion.
Ignition protected to SAE J1171 and ISO 8846 for installation in a
battery box or on vehicles carrying hazardous loads.
All stainless steel hardware and tin-plated 100% pure copper
optimize long-term corrosion protection.
Allows dielectric spray on cable terminals without compromising
fuse connections.

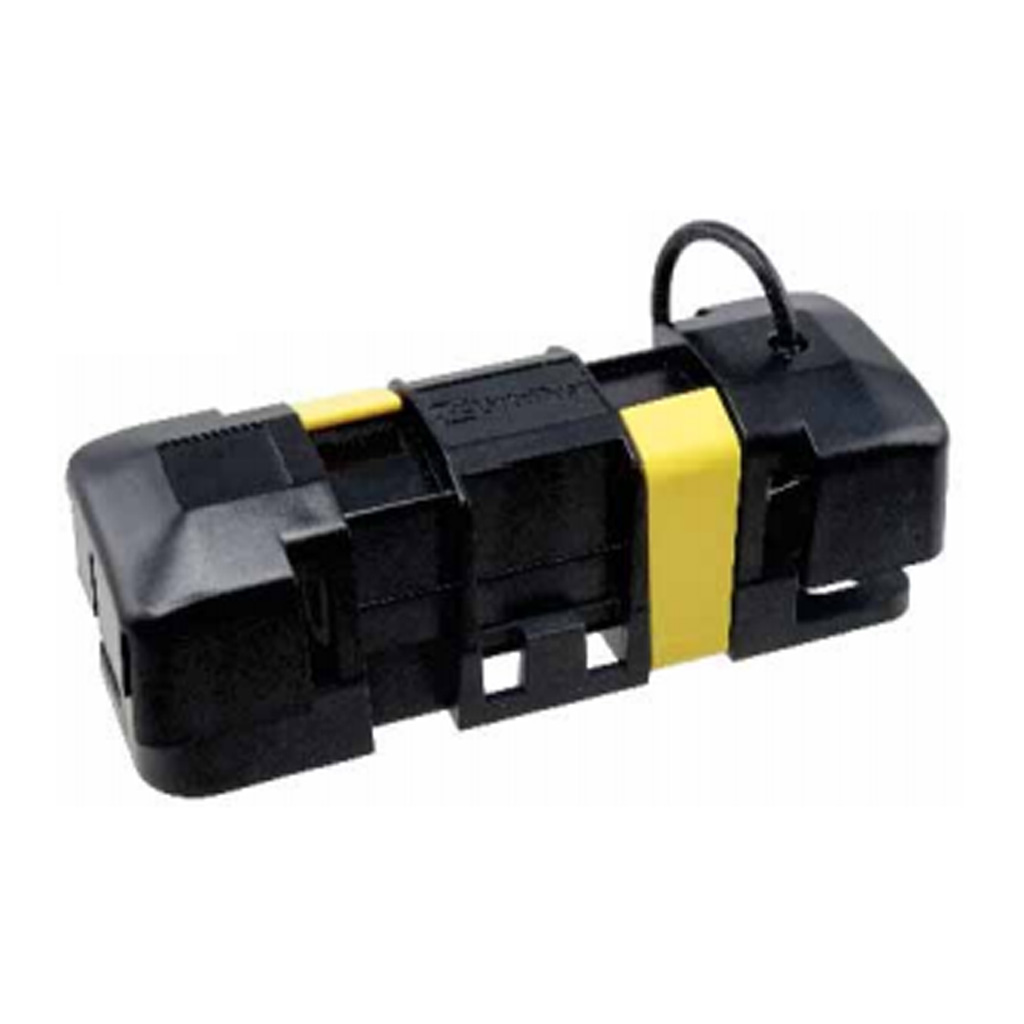

Cover retention ensured through integrated tether.
AssureLatch technology for worry-free positive latching..
Optionally, it can be ordered pre-installed with fuse .
