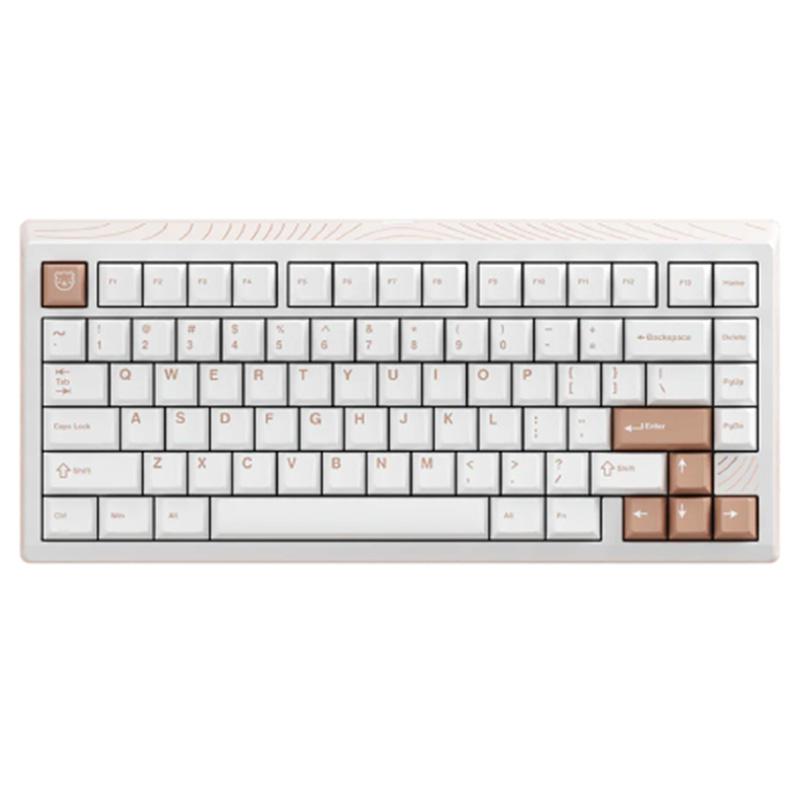

Meletrix BOOG75 Hall Effect Switch Wired Keyboard - Induction Coil (6975669182227)

Image 1
Hurry! 4 items left!
$405.40

Collect 405 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout







SPECIFICATIONS:

Keyboard

Wired

Gasket Mount Design

75% Layout

PCB: 1.6mm, with Ai03 DB

5 Typing angle

22.14 mm front height

Dimension: 323.6 x 145.78 x 34.73 (mm)

Default plate: Alu

Case Material: 6063 Aluminum

Case Finish: Anodized+Infill (No Sparkles, No Chamfer)

Backplate and External Weight: Anodized+Infill

Switches Type: Gateron KS37B, compatible with Gateron KS37, GATERON Magnetic FOX   Switch, GATERON Dual-rail Magnetic Jade Mini E Switch

The Orientation of the Switches: North Facing

No SS Internal Weight

Boog 75 Wired Polling Rate: 1000hz

QMK or VIA Support: No, customization requires to use of our independent driver.

Total weight: About 3kg

Keycap

Manufacturer: WS PBT

Keycap Material: Doubleshot PBT

Keycap Thickness: 1.6mm

Keycap Profile: Cherry

Keys QTY: 81 keys

Switch

Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch

Initial Force:3010gf.

Total travel:4.00.2mm.

Operation Lifetime:150,000,000 Cycles.

Bottom Force: 5010gf.

Top Housing Material: Thermoplastic, Transparent

Bottom Housing Material: Thermoplastic, Red

Stem Material: Thermoplastic, Red

Spring Material: Stainless steel

Highlights

Dual-rail structure for stability.

Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.

Extending the stem for better switch stability.

Integrated spotlight lens design, enhancing light guidance.

Every switch features a very tight housing and a very good coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!

Package Contents

Top and bottom cases

HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)

The themed keycaps

Tool accessories

Disclaimer of Stabs

In the case of mass production, we will lubricate the stabilizer manually to a degree that is better than   factory-lubed. However, if an individual pursues an exceptionally perfect tactile experience, he or she will need to lubricate it manually a second time. This is within the acceptable range of quality without affecting the functionality of the keyboard.
