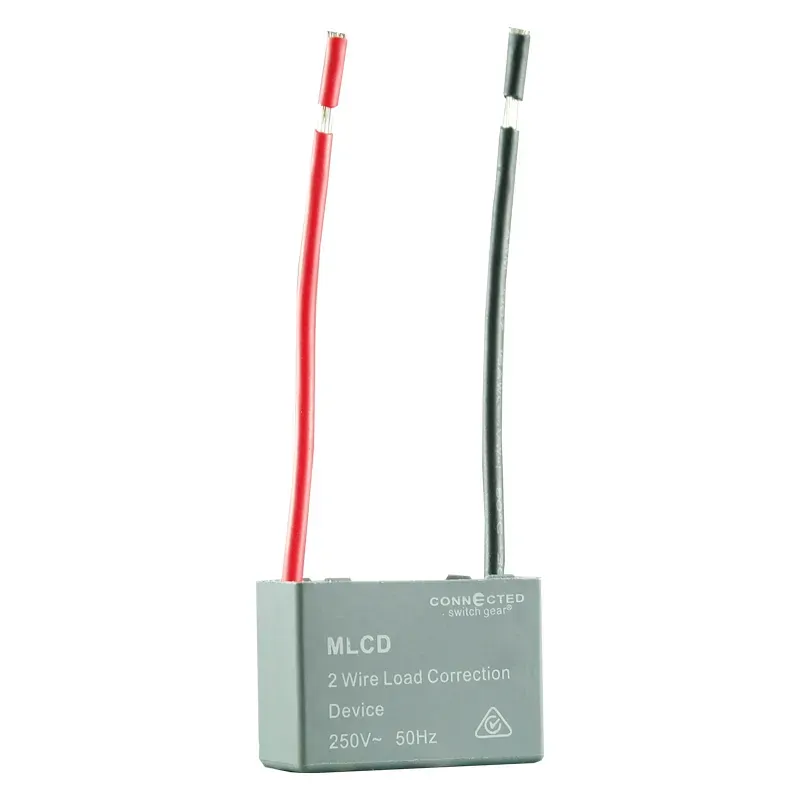

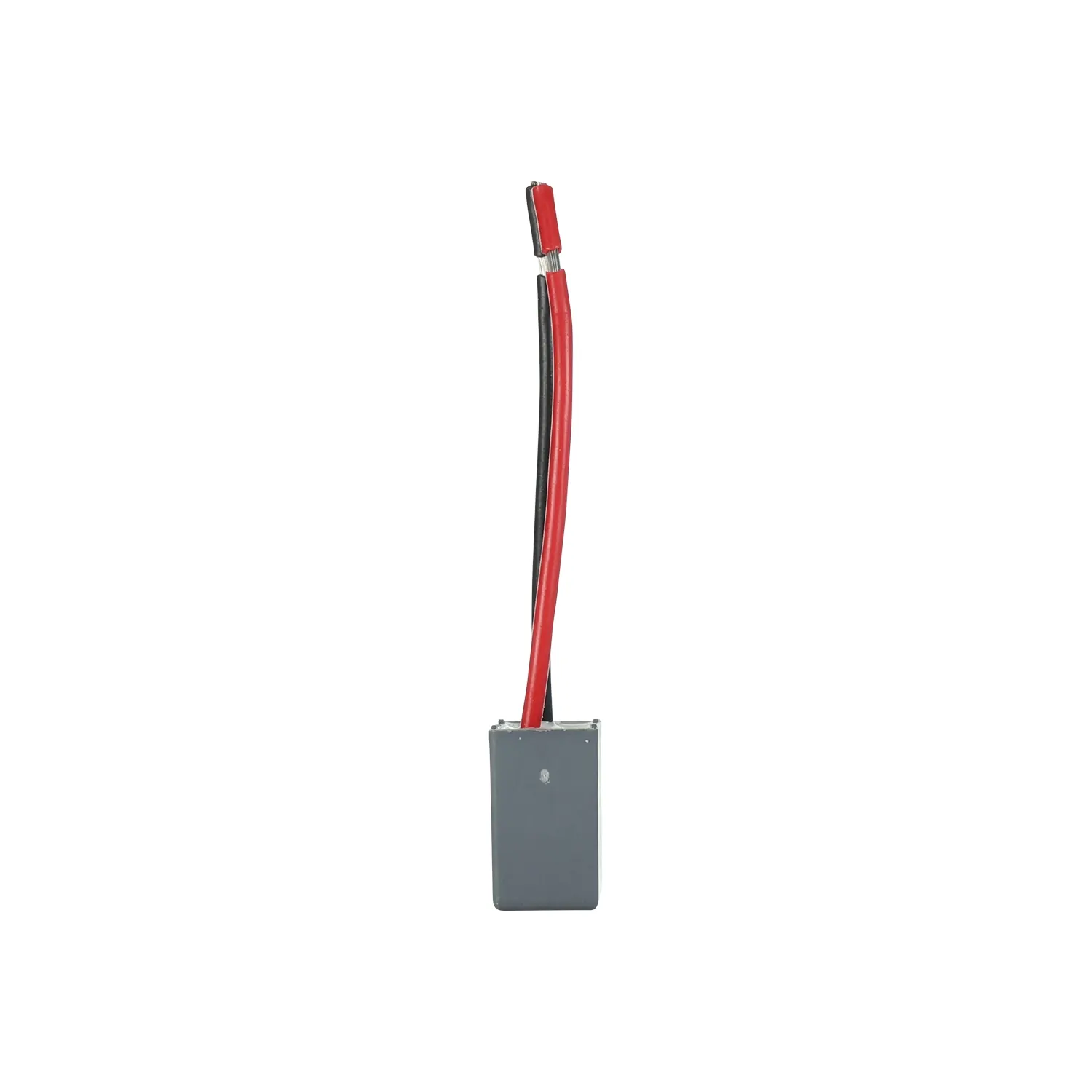

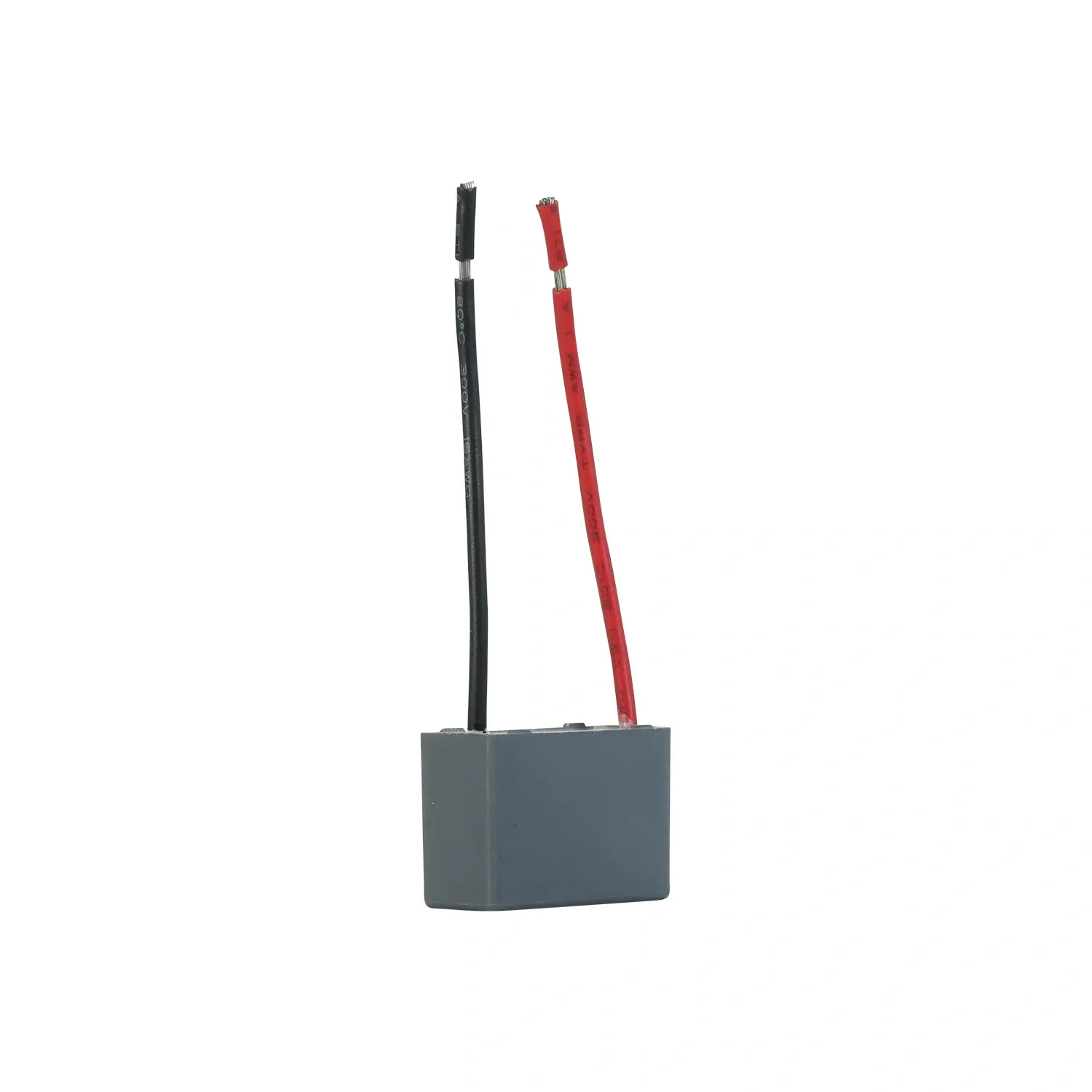

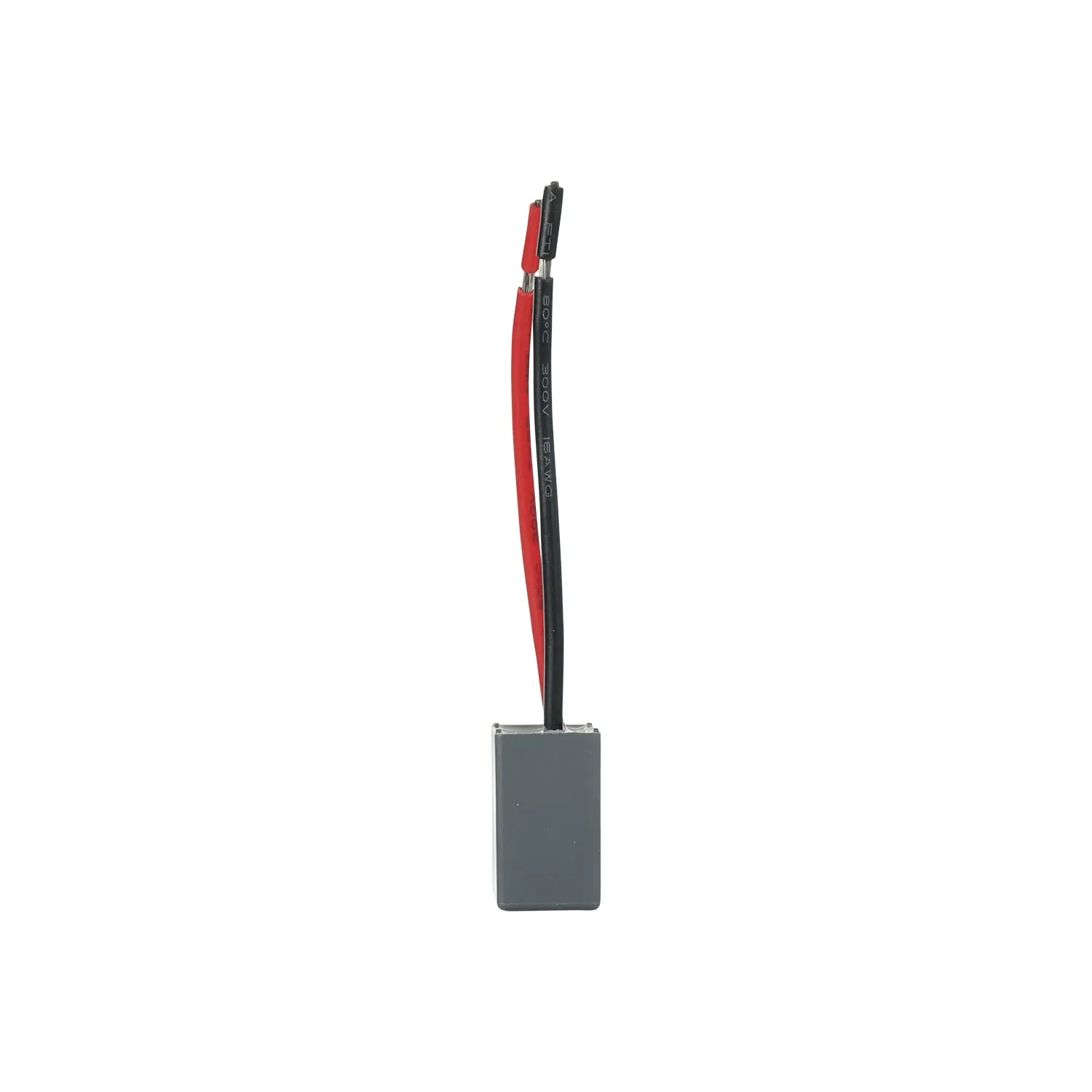

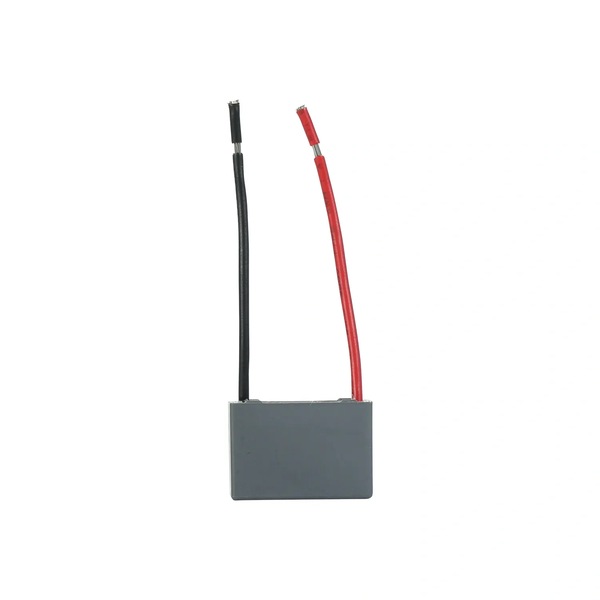

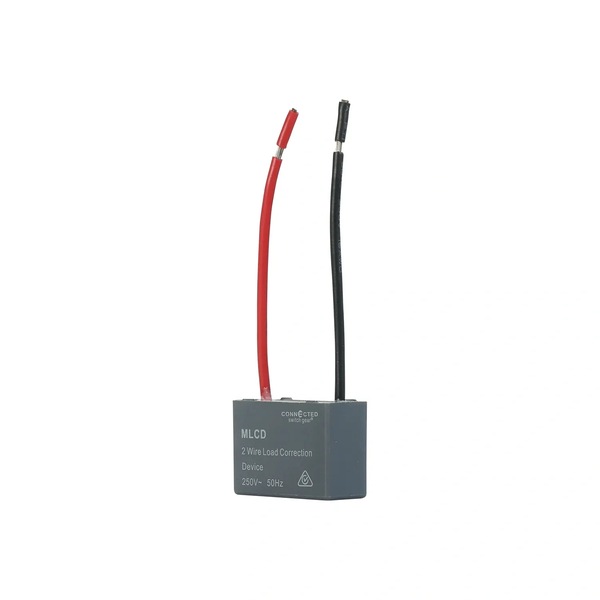

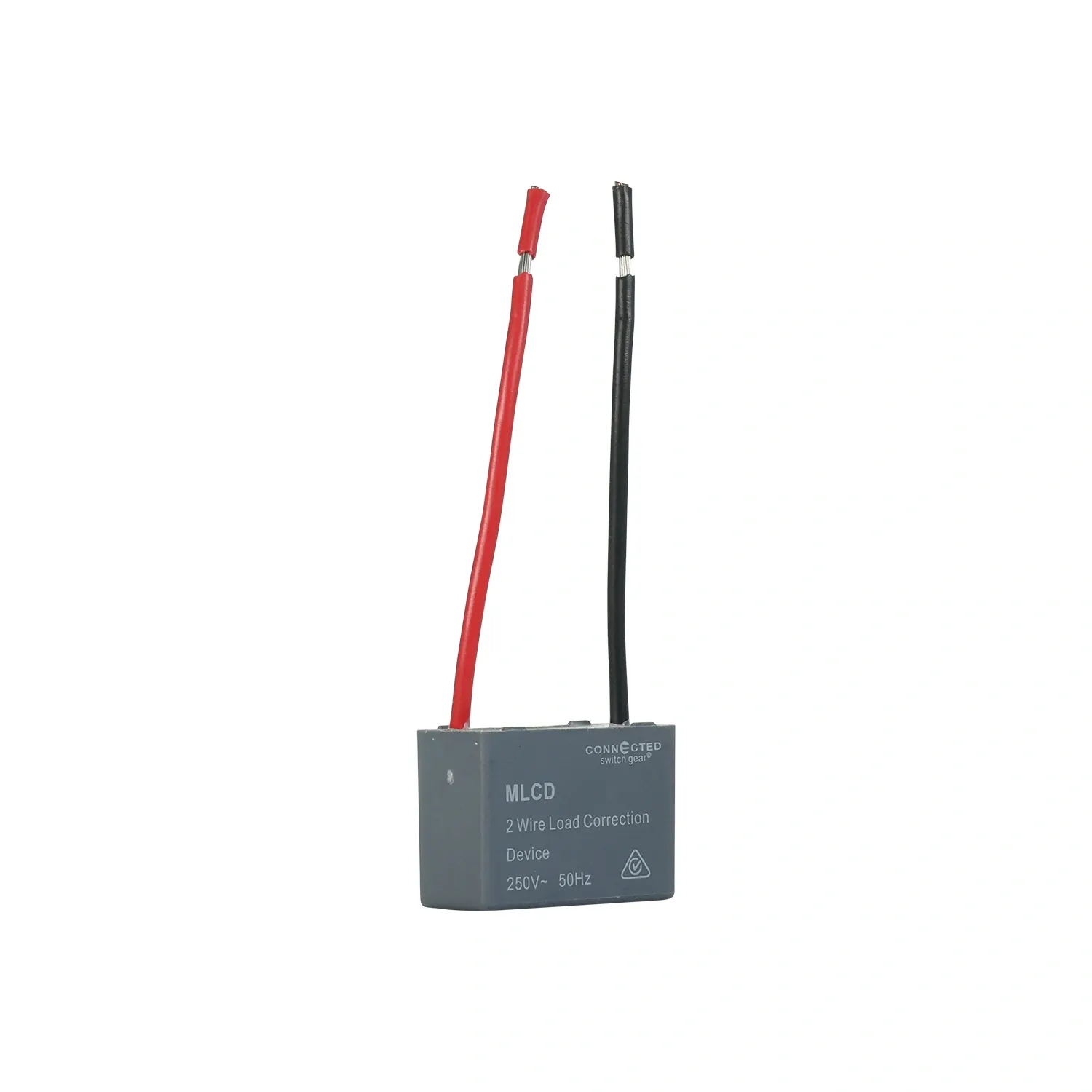

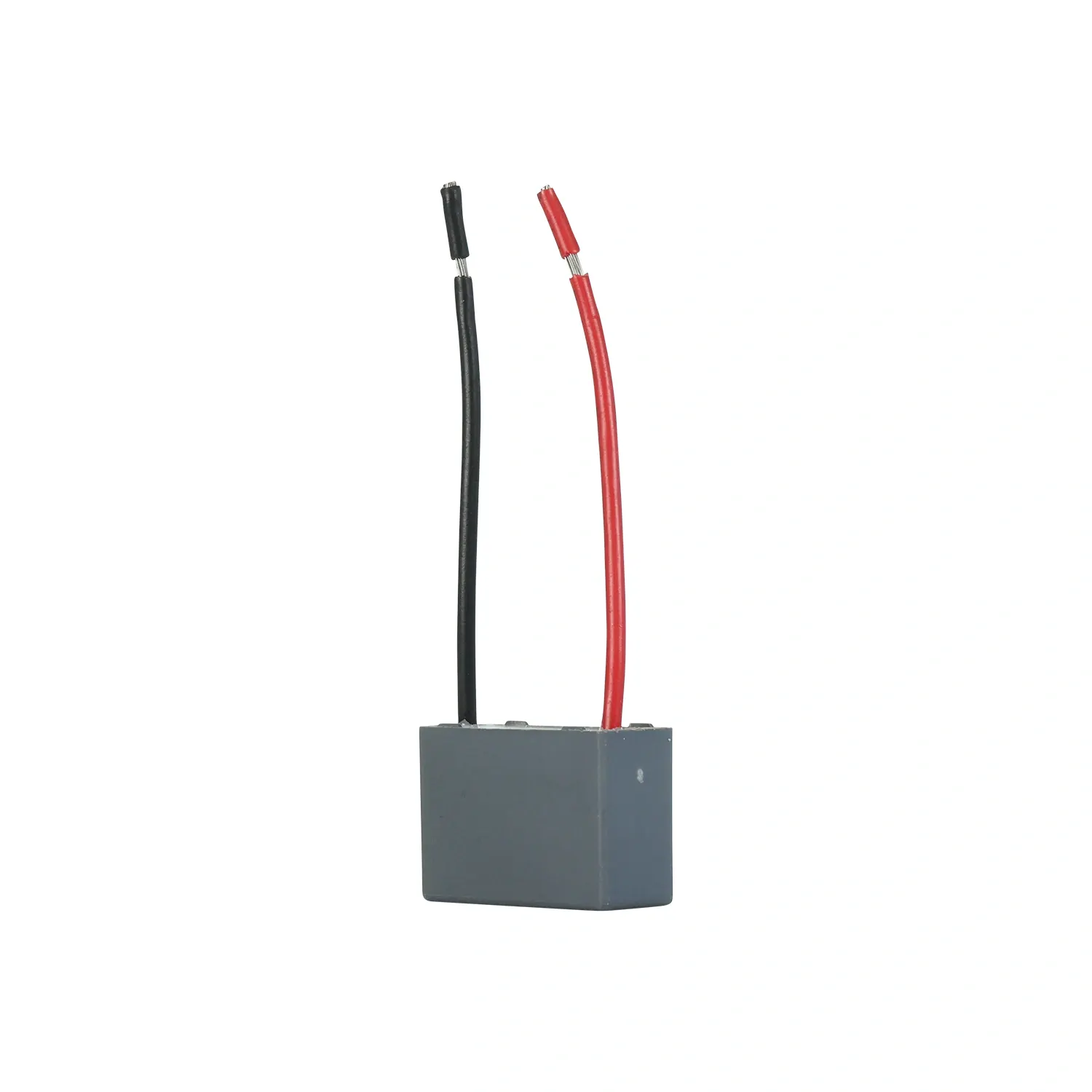

The Connected Switch Gear MLCD is a load correction device designed to stabilise circuits in 2-wire non-dimmable electronic switches, particularly where no neutral wire is present. It ensures reliable switch performance by providing the minimum required load when the switch is in the off position.

This unit is specifically intended for non-dimmable applications and supports a wide range of load types, including LED, fluorescent, compact fluorescent (CFL), and inductive loads.

NOTE: THE MLCD must be wired across the load, as outlined in the datasheet wiring diagram. This is not optional and is essential for safe and functional use.

MLCD Features

• Stabilises 2-wire switching circuits: Ensures proper function when no neutral is available.
• Must be wired across the load: Essential for correct performance—refer to wiring diagram.
• Supports multiple load types: Compatible with LED, CFL, fluorescent, and inductive loads.
• Improves switch performance: Prevents flickering or non-response in low-load conditions.
• Compact and easy to install: Fits discreetly into existing switch circuits.

MLCD FAQ
Q: What is the function of the MLCD?
A: It corrects low-load issues in 2-wire non-dimmable switches by simulating a minimum load across the circuit.

Q: How should it be installed?
A: The MLCD must be wired directly across the load. This configuration is required for proper operation.

Q: Can it be used with dimmable switches?
A: No, the MLCD is only intended for non-dimmable switch circuits and may not perform correctly in dimming applications.
