Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+ (MS110CMP)

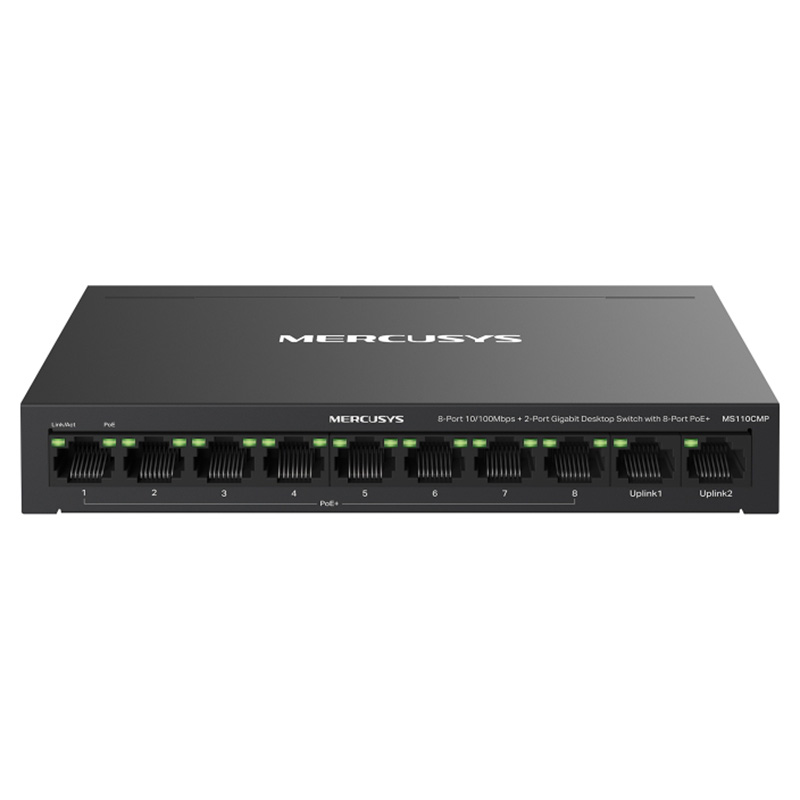

Image 1
Hurry! 5 items left!
$57.10

Collect 57 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+
The MS110CMP is a 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+, ideal for small and medium business IP surveillance with a 115 W PoE budget. The plug-and-play design makes it for easy deployment without the need for a technician.

  • 10 Ports: 8 10/100 Mbps PoE+ Ports + 2 Gigabit non-PoE Ports

  • Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable

  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports*

  • 2 Uplink Ports: MS110CMP provides 2 uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**

  • Isolation Mode: One click to divide traffic for specific ports for stability and security

  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

  • Plug and Play: Simple to use and saves time and effort

  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

  • Durable Metal Casing: Allows for efficient heat dissipation and long network life






SPECIFICATIONS:

HARDWARE


Dimensions (W X D X H)

6.7 3.9 1.1 in (171 98 27 mm)

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices

PoE Ports: Port 1- Port 8

Interfaces

10 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Installation

Desktop / Wall Mount

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100 Mbps at Half Duplex

20/200 Mbps at Full Duplex

Jumbo Frame

2 KB

Mac Address Table

2K

Max Power Consumption

10.064 BTH/hno PD connected)

263.568 BTH/hwith 65W PD connected

OTHERS


Package Contents

• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP)

• Power Adapter

• Quick Installation Guide

Environment

Operating Temperature: 0~40 (32~104)

Storage Temperature: -40~70   (-40~158)

Operating Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~95% RH non-condensing

Notes

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
