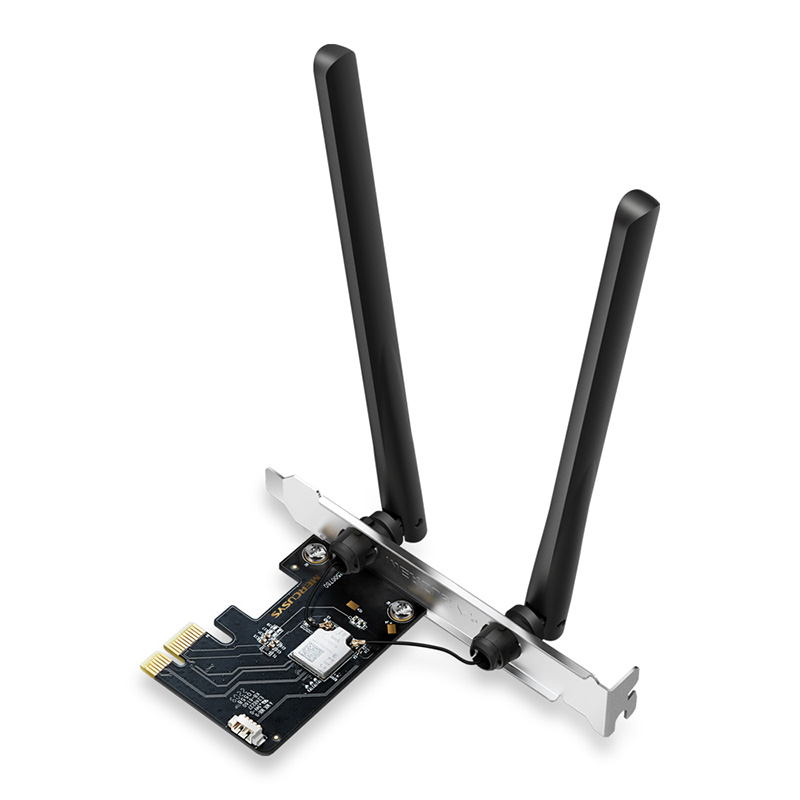

Mercusys AXE5400 Tri-Band Wi-Fi 6E Bluetooth 5.2 PCIe Adapter (MA86XE)

Image 1
Hurry! 5 items left!
$57.10

Collect 57 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout







SPECIFICATIONS:

WIRELESS


Wireless Standards

IEEE 802.11 a/ac/ax 5 GHz

IEEE 802.11 b/g/n/ax 2.4 GHz

Signal Rate

2402 Mbps on 6 GHz

2402 Mbps on 5 GHz

574 Mbps on 2.4 GHz

Reception Sensitivity

6 GHz:

11ax HE160 MCS0:-86 dBm

11ax HE160 MCS11:-56 dBm



5 GHz:

11ax HE80 MCS0: -90 dBm

11ax HE80 MCS11: -59 dBm

11a 54Mbps: -77 dBm

11ac VHT80 MCS0: -92dBm

11ac VHT80 MCS9: -64dBm



2.4 GHz:

11ax HE40 MCS0: -91 dBm

11ax HE40 MCS11: -60 dBm

11g 54Mbps: -76 dBm

11n HT40 MCS7: -72dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

HARDWARE


Dimensions (W X D X H)

8.9 4.8 0.85 in (226.3 120.8 21.5 mm)

Antenna Type

2 Fixed High-Performance Omni-Directional Antennas

OTHERS


Package Contents

AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter (MA86XE)

Bluetooth Header Cable

Quick Installation Guide

Resource CD

Environment

Operating Temperature: 0C~40C   (32F~104F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

System Requirements

Supported operating systems include Windows 10, 11(64-bit)

Notes

†Maximum wireless signal rates are the   physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.



‡Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, MU-MIMO, 1024-QAM, or HE160 require APs to also support the corresponding features. 160 MHz channels may not be all available in the 5GHz or 6 GHz band in some regions/countries due to regulatory restrictions.



Functionality of MA86XE may be restricted on some computing systems and platforms. Please try to update the devices driver for feature compatibility.



§Based on IEEE 802.11ax specification Intel Engineering simulation. 160 MHz channels and Wi-Fi 6/6E technology advantages related to network managed traffic enable lower latencies, more efficient operation, and higher reliability vs. random contention-based   traffic of standard Wi-Fi 5 networks. Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.



* "Up to 75% lower latency" is based on Intel simulation data of 802.11ax with and without OFDMA using 9 clients. Average latency without OFDMA is 36 ms, with OFDMA average latency is reduced to 7.6 ms. Latency improvement requires that the AP and all clients support OFDMA.



**Use of WPA3 requires APs to also support the corresponding feature.



***Several new features are introduced in the Bluetooth Core Specification 5.0 and 5.2 Release, including 2 faster speed and 4 broader coverage compared with Bluetooth 4.2.




SKU: 73122

Estimated Delivery Time Frame:2-15 business days

Ask a Question About This Product

Reference ID: 13334638
