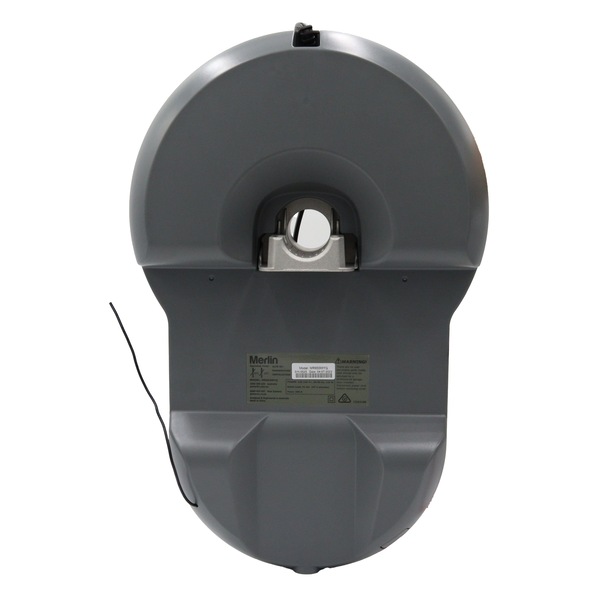

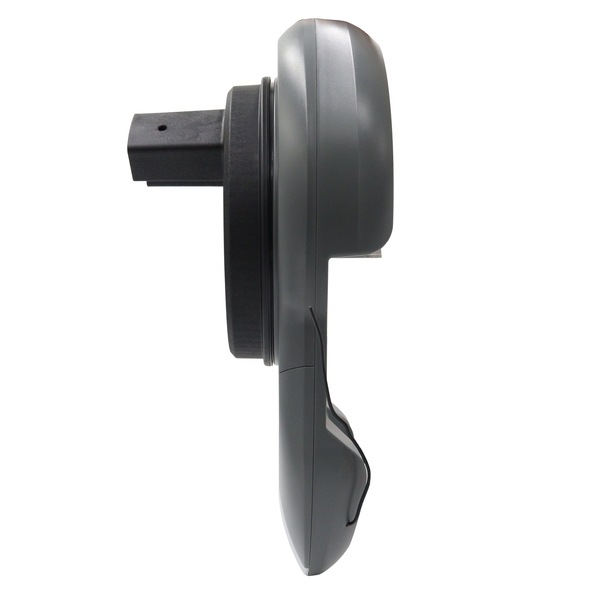

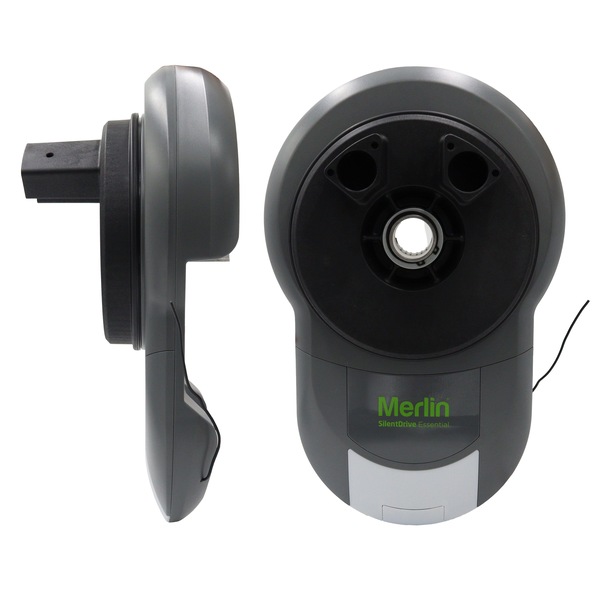

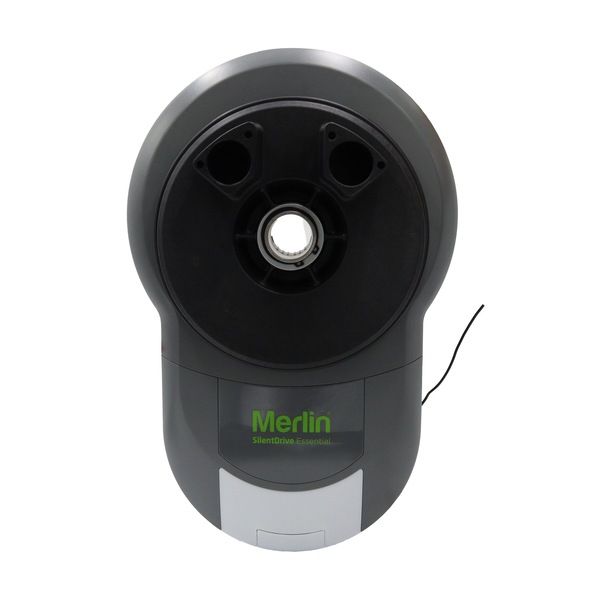

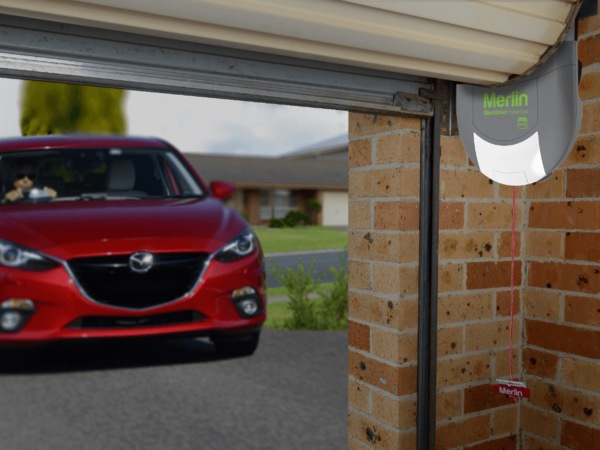

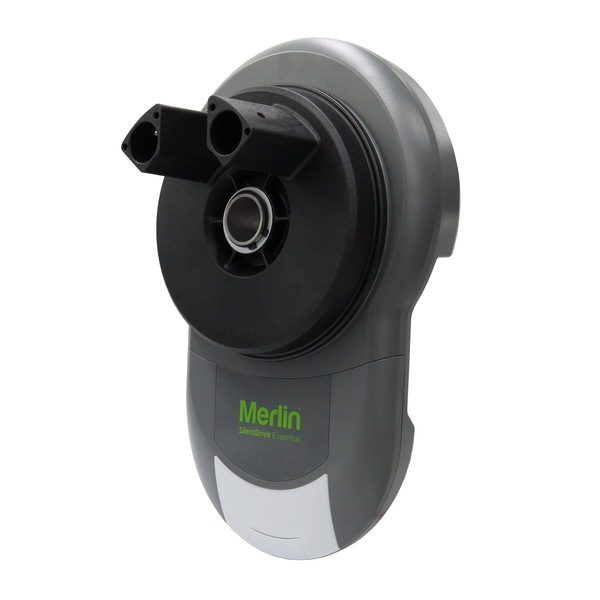

Merlin MR655MYQ SilentDrive Essential Roller Garage Motor/Opener

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Shop More Products
Motor Manual

Motor Brochure

Features:

  • Easy to install
  • Quiet and efficient to run
  • Security +2.0
  • Bright LED Lights
  • Premium Automatic Safety Reverse
  • Automatic Force Sensing
  • Manual Release
  • MYQ Compatible

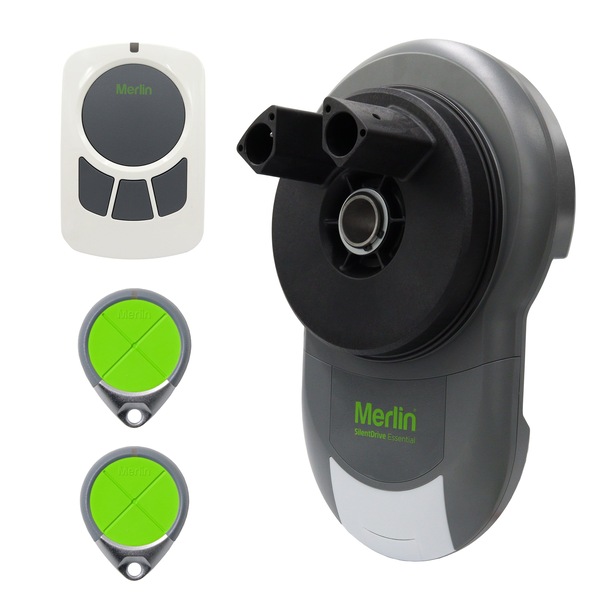

Remotes Included: 2 + 1 Wall Button


Included:

1 x MERLIN MR655MYQ SilentDrive Essential Roller Door Motor
2 x Premium E970M remotes
1 x E148M Wireless Wall Button
1 x Weight Bar
1 x Installation Instructions
5 Years Manufacturers Warranty*

Specifications:

General

  • 24 DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 16.5m2
  • Drum rotations: 4.5
  • Max Door weight: up to 100kg
  • Max peak pulling force: 500N
  • Minimum side room 45mm
  • 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
  • Up to 64 memory registers
  • Courtesy light: LED
  • Noise rating: 1M 57DB



Door Specs
  • Maximum lifting under spring tension = 20kg
  • Suitable for steel spring balanced doors



Door Opening and Closing Times
  • Door opening time: 13 seconds
  • Door closing time: 13 seconds
  • Based on a 2.4m high door



Door Height
  • Door height: 4.5m, 3.0m
  • Door width: 3.6m, 5.4m
  • Single dwelling



Merlin Warranty Terms:

For DIY installs, Merlin offers 1 year warranty.

For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 5 year warranty applies.

    GTIN: 9417593655004

    Reference ID: 3101902
