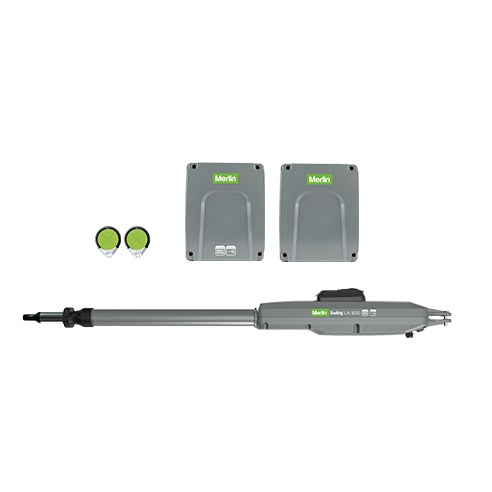

Merlin Swing LR 500 Rural Gate Opener

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
From$1749

Collect 1749 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Remote Pro
Secure ways to pay at checkout

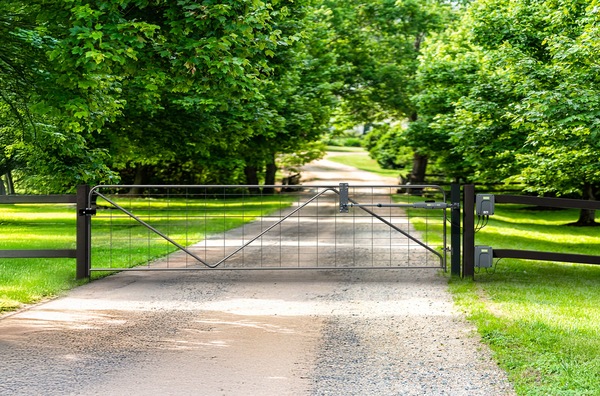

Upgrade your rural property with the Merlin Swing LR 500, a heavy-duty gate opener designed for wide farm gates and acreage entrances. Engineered for all-weather performance and reliability, it delivers smooth, consistent access to your property year-round.

Key Features
  • Flexible Power Options – Choose the setup that suits your property:
    • Mains Power: Simple plug-and-play connection for properties with easy access to electricity.
    • Solar Kit: Includes a 40W solar panel and high-capacity battery for hands-free, off-grid operation. Perfect for remote properties without mains power.
    • Dual Solar: Extra solar capacity for even greater reliability in low-sunlight areas.
  • 3-Year Merlin Warranty – Backed by Merlin for long-term reliability and peace of mind.
  • Smart Control (myQ Compatible) – With the optional myQ Gateway and Safety IR Beams, monitor and control your gate from anywhere, receive alerts, set schedules, and track usage history.
  • Durable & Quiet – IP44 weather resistant, quiet DC motor, and smooth soft-start/soft-stop operation.
  • Fast Access – Opens to 120° in 20–27 seconds.
  • Safety Built-In – Automatic force sensing, obstruction auto-reverse, Security+ 2.0® encrypted rolling code, improved remote range, pedestrian mode, and timer-to-close function.
Optional E-Lock Add-On

Enhance stability and security with the Merlin E-Lock:

  • Prevents unwanted gate movement in strong winds or forced entry attempts.
  • Works seamlessly with the LR 500 control box.
  • Unlocks automatically with a 24V pulse signal for hands-free access.
  • Manual key release ensures operation even during power loss.
Technical Specifications

For full technical specifications and installation considerations, please refer to the downloadable brochures available on this page.

  • Maximum Gate Size & Weight:
    • 3m gate – up to 300kg
    • 4m gate – up to 250kg
    • 5m gate – up to 200kg
  • Gate Travel Speed: Opens 120° in approx. 20–27 seconds
  • Motor Voltage: 24 VDC
  • Input Power: 50 W
  • Power Supply (Mains Option): 240 VAC, 50/60Hz
  • Power Supply (Solar Option): 21.6–35 VDC from 40W solar panel with dual 18Ah batteries (12-month battery warranty)
  • Maximum Pull Force: 1,500 N
  • Operating Temperature Range: -20°C to +55°C
  • Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0® rolling code encryption
  • Memory Capacity: Stores up to 64 remotes
  • Ingress Protection: IP44 weather resistant, suitable for outdoor installation
