Metlam Essential Kit Concealed Fix - Available in Various Handing and Functions

Metlam Essential Kit
ESS300_LHHC3_SCP

Privacy Indicator Bolt ideally used restrooms, especially public toilets. They offer more security compared to regular locks.

Privacy Indicator Bolt Function - is used to indicate whether a single-occupant room is occupied or not. These bolts also serve as the room's main lock or additional security.

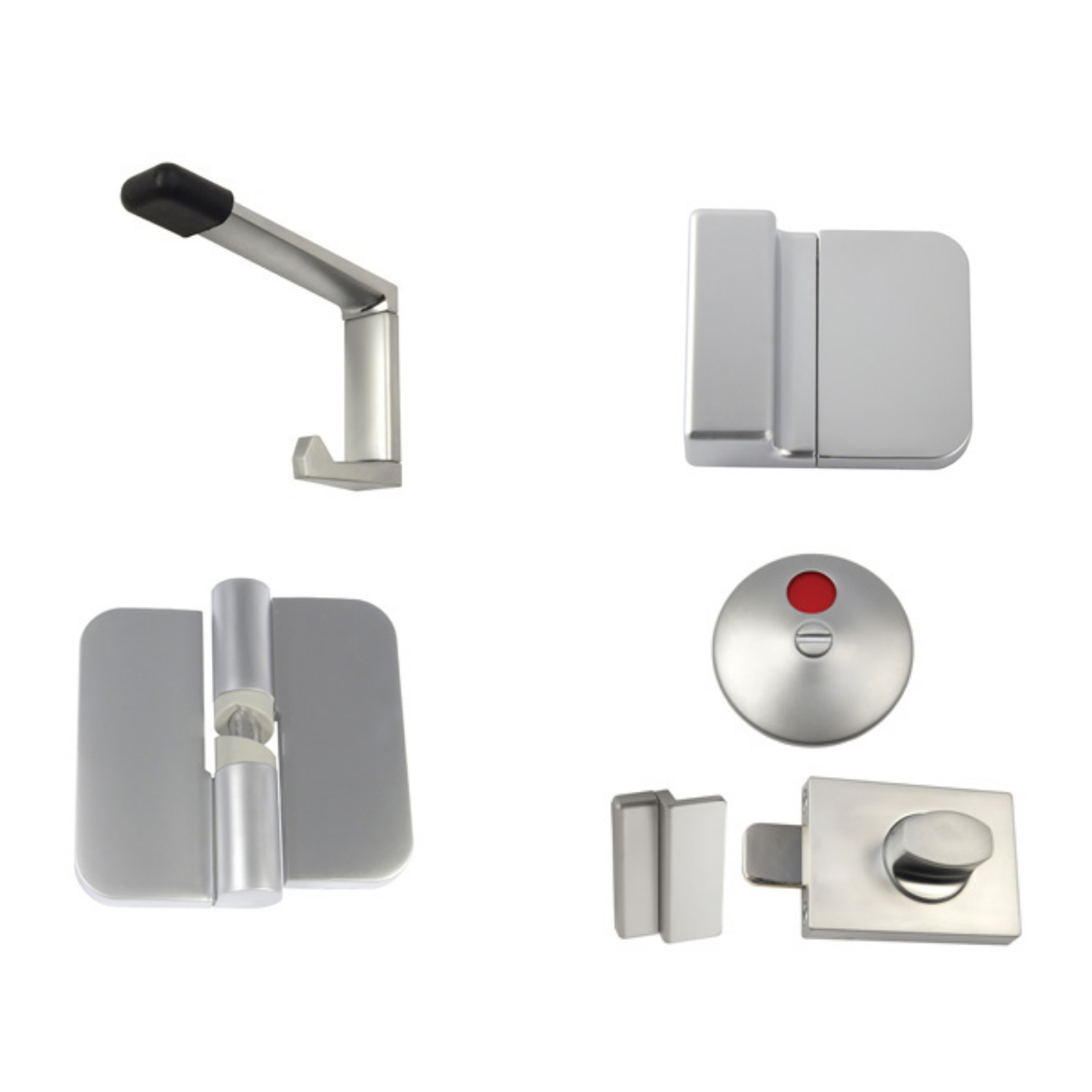

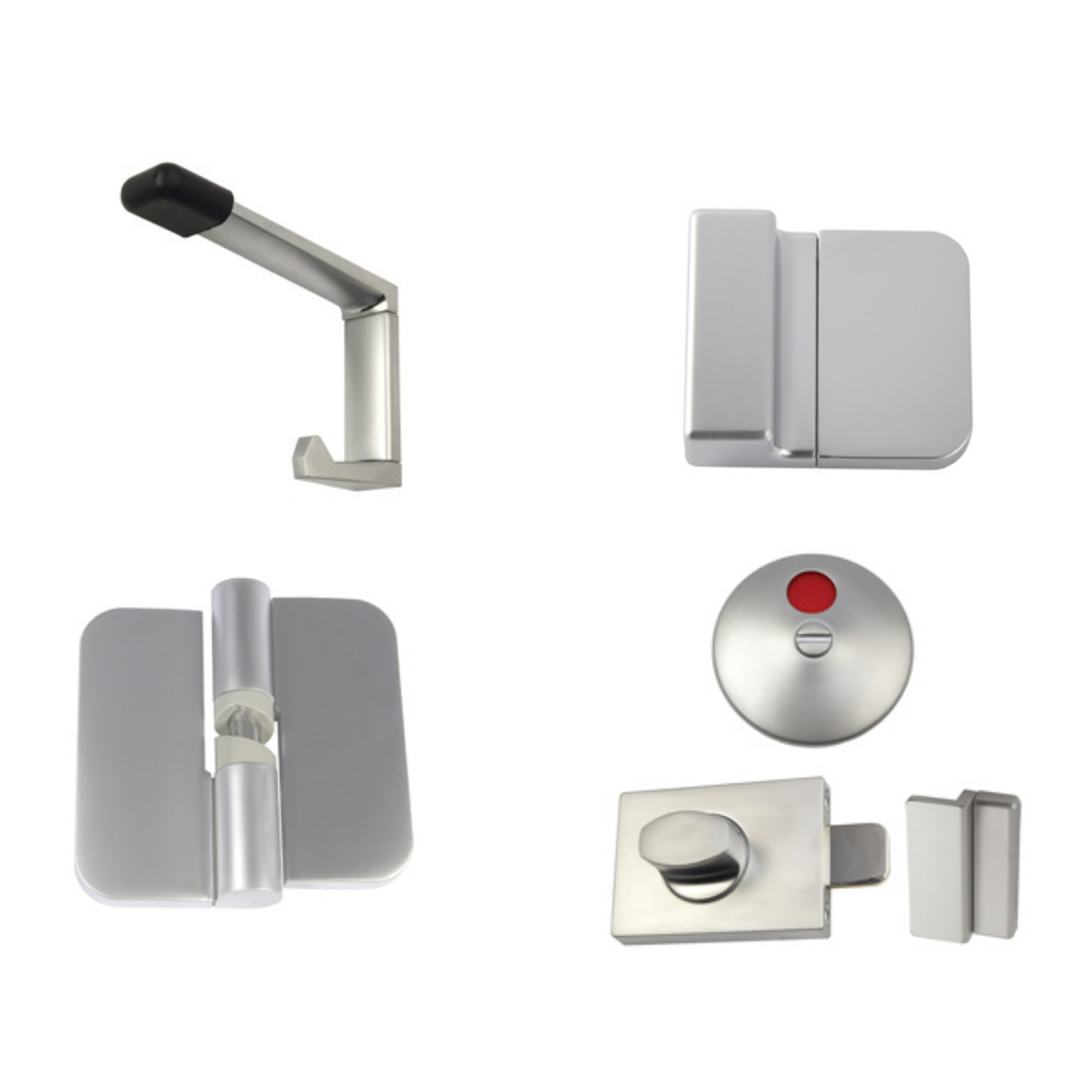

Includes:

• 1 x Lock and Indicator Set (300_LOCK_SCP)
• 3 x Gravity Hinge (106C)
• 1 x Bumper (101C_BUMP_SCP)
• 1 x Coat Hook (202C_HOOK_SCP)

Specifications:

• Indicator Material: Diecast Zinc, Alloy ZP3 ABS Snap-On Cover
• Indicator Diameter: 50mm
• Indicator Projection: 13mm
• Indicator Depth: 9mm
• Indicator Centre to Centre: 36mm
• Slide Lock Height: 50mm
• Slide Lock Width: 68mm
• Slide Lock Projection: 32mm
• Bolt Throw: 19mm
• Staple Width: 33mm
• Staple Height: 49mm
• Staple Projection: 11mm
• Hinge Material: Diecast Zinc and Stainless Steel Shaft
• Hinge Minimum Hinge Clearance: 30mm
• Hinge Load Rating: 15kg per Hinge
• Hinge Height: 80mm
• Hinge Length: 82mm
• Hinge Thickness: 5mm
• Hinge Centre to Centre: 56mm
• Bumper Length: 55mm
• Bumper Width: 48mm
• Bumper Projection: 18mm
• Bumper Centre to Centre: 31mm
• Bumper Thickness: 3mm
• Hook Material: Diecast Zinc, Alloy ZP3 Rubber Bumper
• Hook Mounting: Screw Fix
• Hook Height: 73mm
• Hook Width: 18mm
• Hook Projection: 93mm
• Hook Centre to Centre: 24mm
• Fixing: Concealed Screw Fix
• Handing: Left Hand
• Function: Hold Closed
• Finish: Satin Chrome Plate
