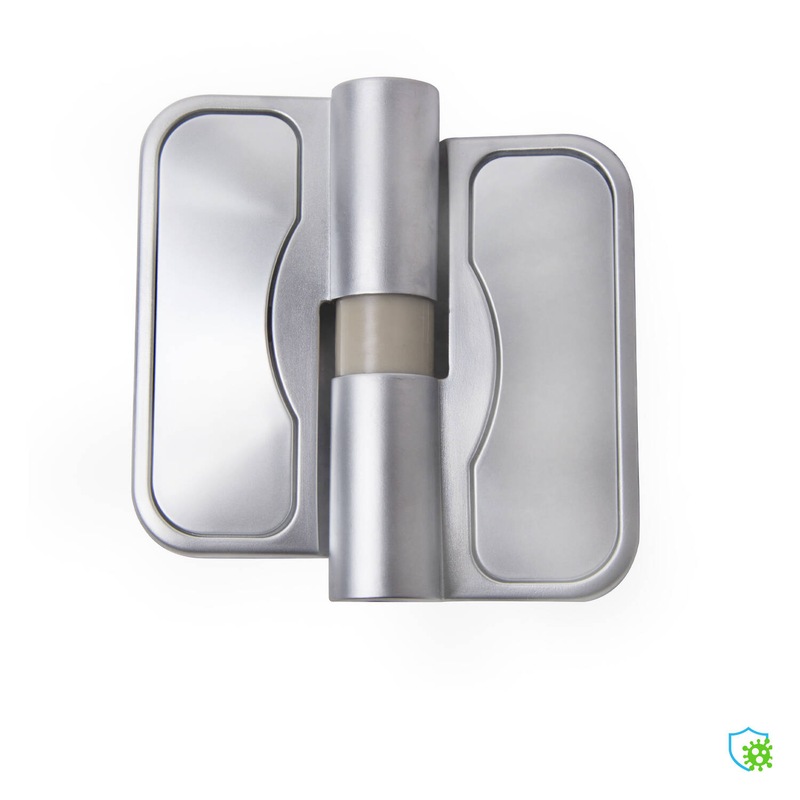

Metlam Moda Gravity Hinge
MODA_LHGRAVITY_ANMB

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort.

Features:

• Step on the back of the hinge plus an increased vertical nylon drop allows for better movement from the gravity function.
• Nylons are set so the door can move past 90degrees whilst still functioning correctly
• Nylon cover on the barrel keeps foreign substances from penetrating the pins and nylons allowing for a smoother opening and closing
• Interchangeable hinge covers including Moda Spring Hinge
• The fixing holes correlate with the bolt-through faceplates making installation a breeze
• Lift off capability

Specifications:

• Material: Diecast Zinc, Alloy ZP3, Brass Shaft, Nylon Inserts, ABS Snap-On Covers
• Load Rating: 15Kg per hinge (for optimum performance 2 hinges per door up to 30Kgs for doors over 30Kg allow for 15Kg per hinge)

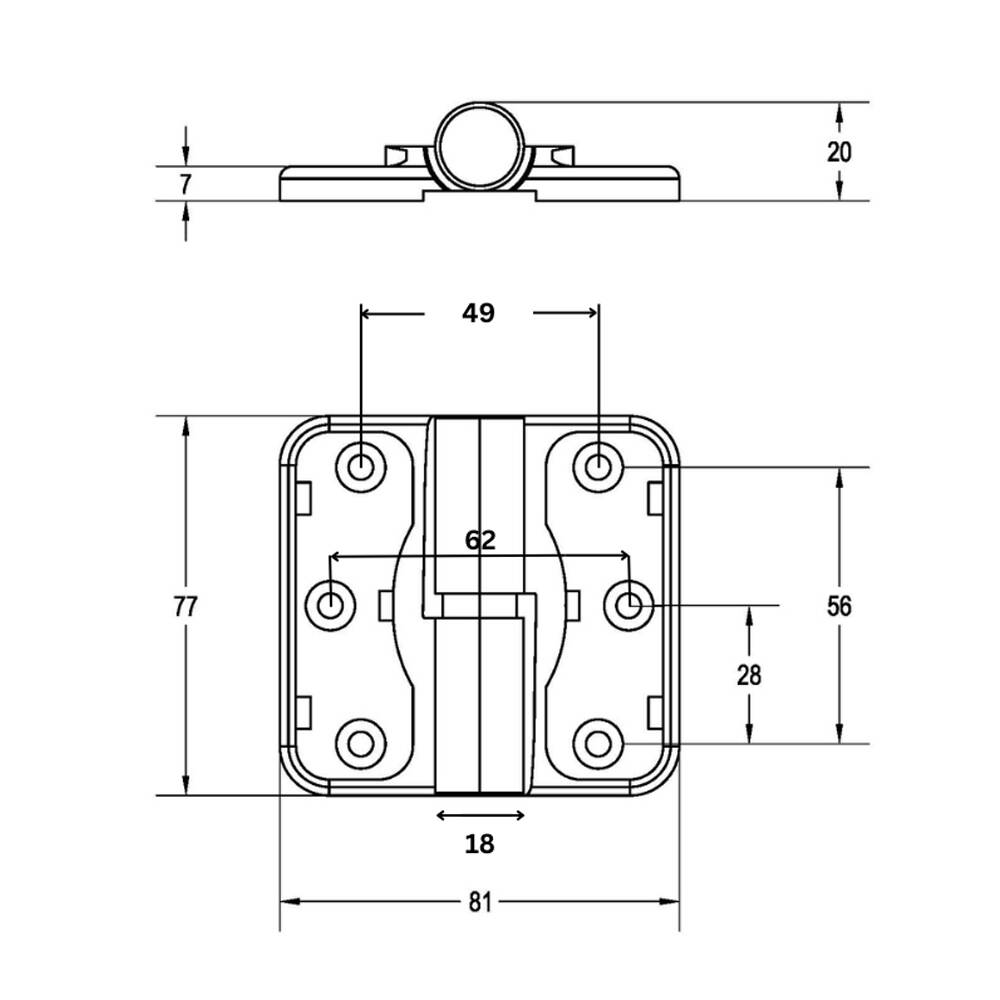

• Centre to Centre: 49mm
• Projection: 20mm
• Height: 77mm
• Width: 81mm
• Handing: Left Hand
• Finish: Antimicrobial Coated
