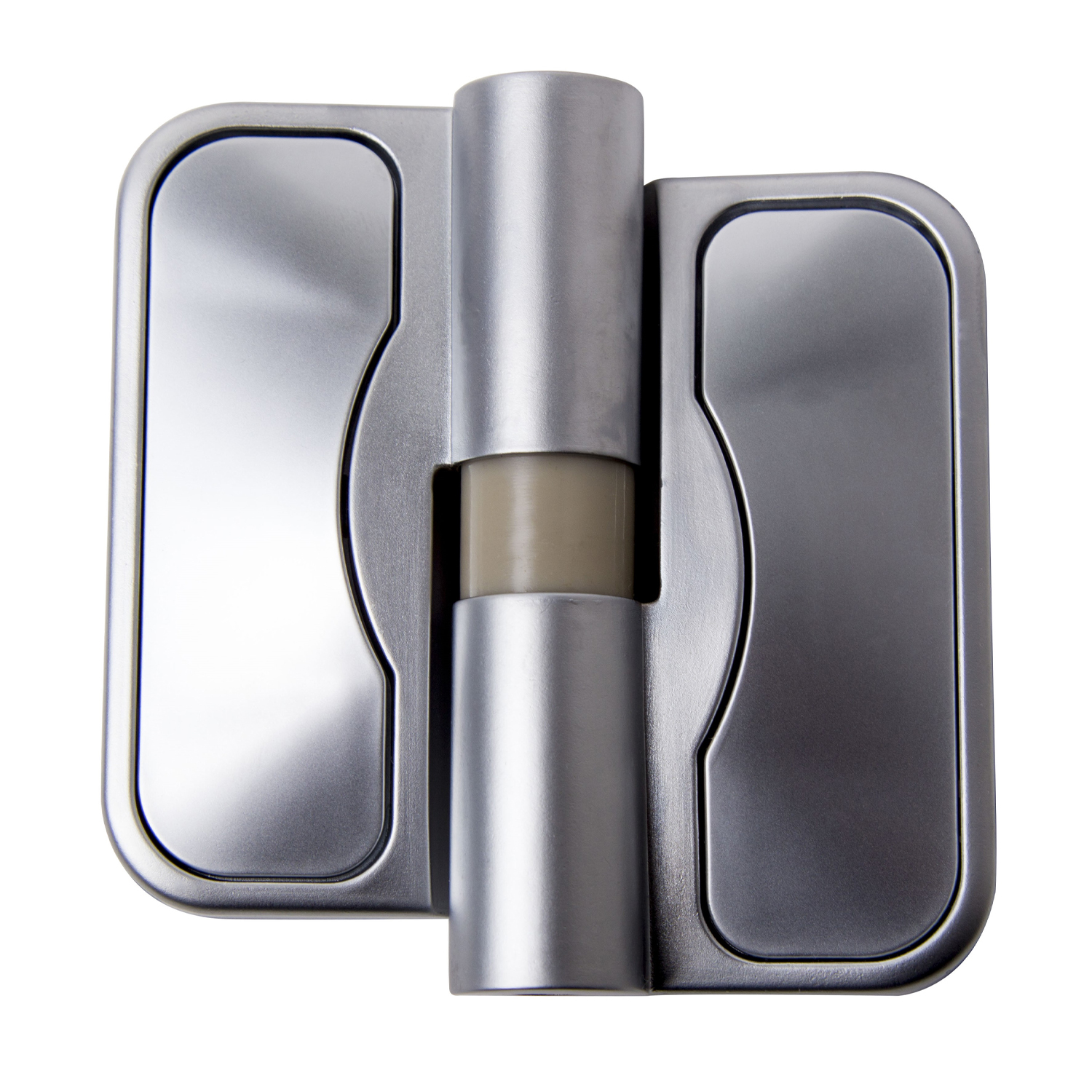

Metlam Moda Gravity Hinge
MODA_GRAVITY_SCPWSF

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

• Step on the back of the hinge plus an increased vertical nylon drop allows for better movement from the gravity function
• Nylons are set so the door can move past 90 degrees whilst still functioning correctly
• Nylon cover on the barrel keeps foreign substances from penetrating the pins and nylons allowing for a smoother opening and closing
• Interchangeable hinge covers including Moda Spring Hinge
• The fixing holes correlate with the bolt-through faceplates making installation a breeze
• Reversible Hold Open and Hold Closed
• Lift off capability

Specifications:

• Material: 304 Stainless Steel Shaft and Diecast Zinc, Alloy ZP3
• Load Rating: 15Kg per hinge

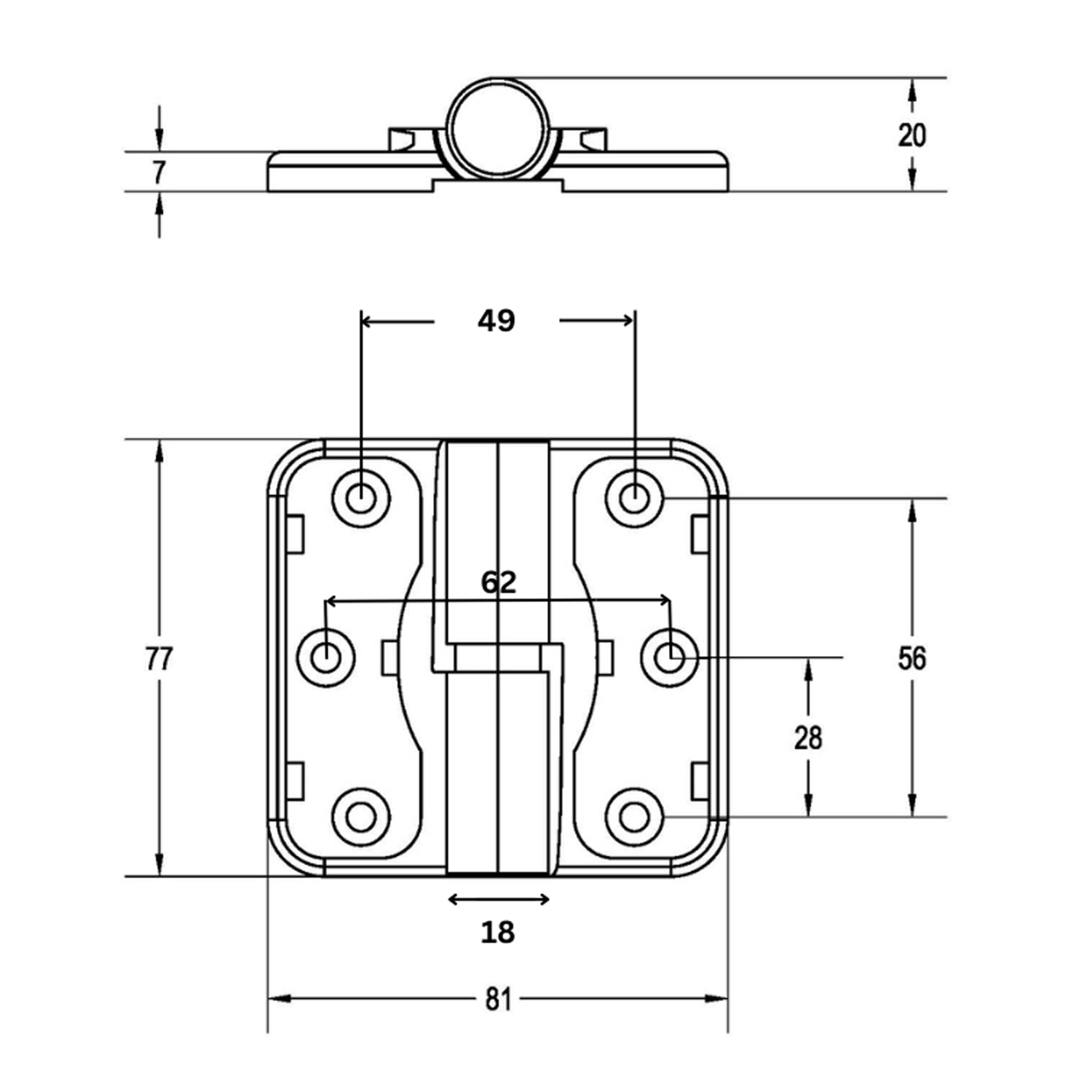

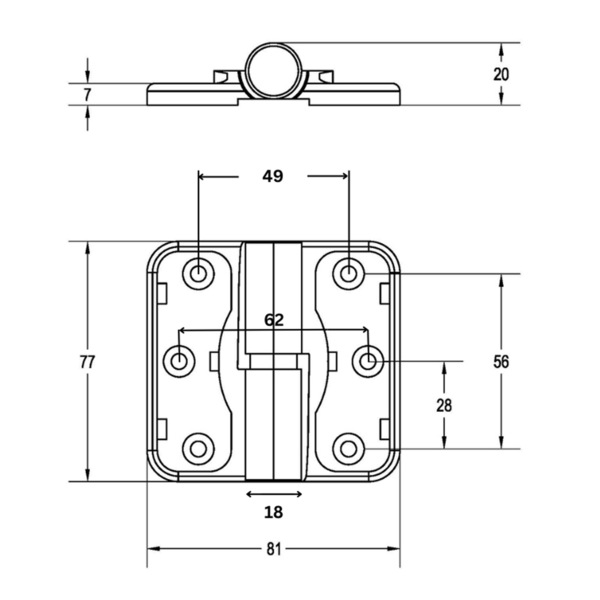

• Width: 81mm
• Height: 77mm
• Depth: 7mm
• Projection: 20mm
• Thickness: 5mm
• Fixing: Concealed Screw Fix
• Finish: Satin Chrome

Note:

• For optimum performance - 2 hinges per door up to 30Kgs
• For doors over 30Kg allow for 15Kg per hinge
• 3 Hinges per door is recommended to prevent door bowing
