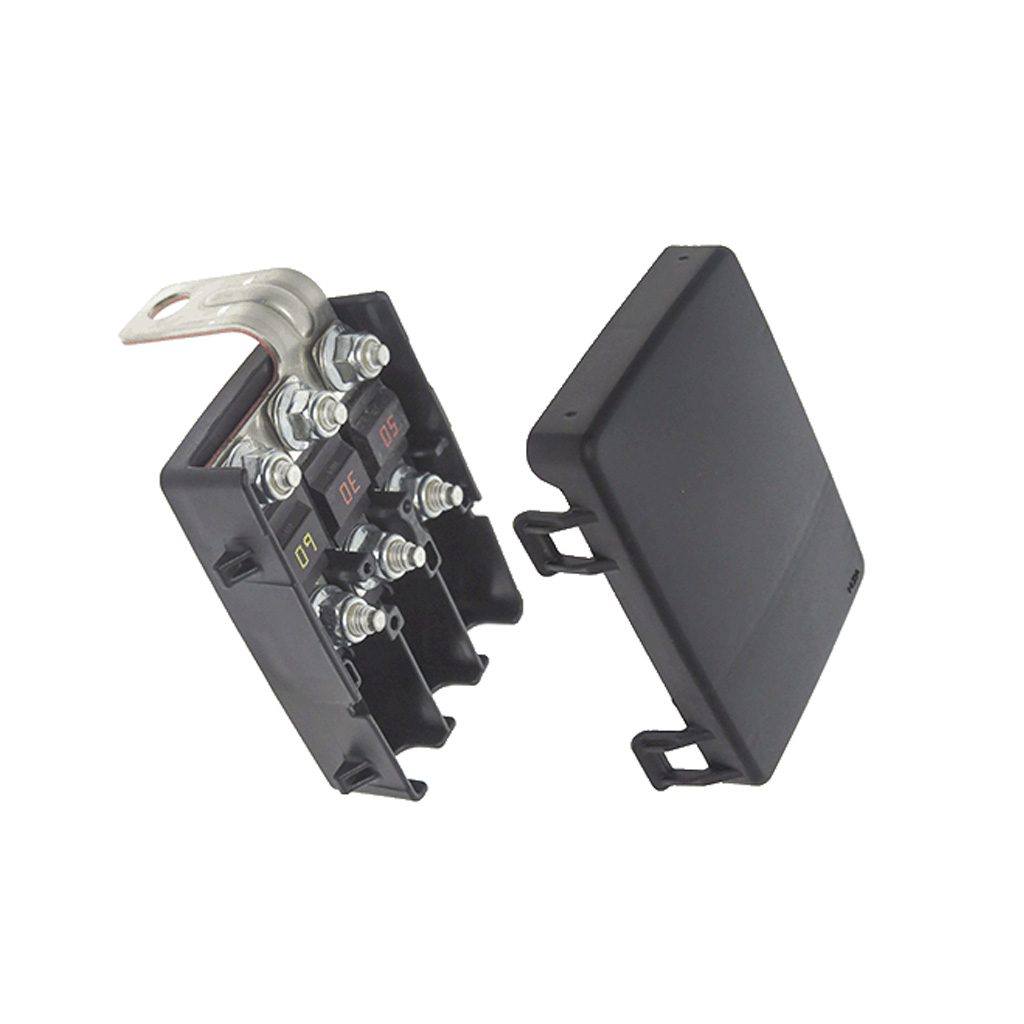

MIA 3 Way Midi Fuse Housing & 90 Busbar

Suits up to 3 x Midi fuses 32Vdc

Includes cover and internal adhesive label.

Includes 90 copper-tin-plated busbar.

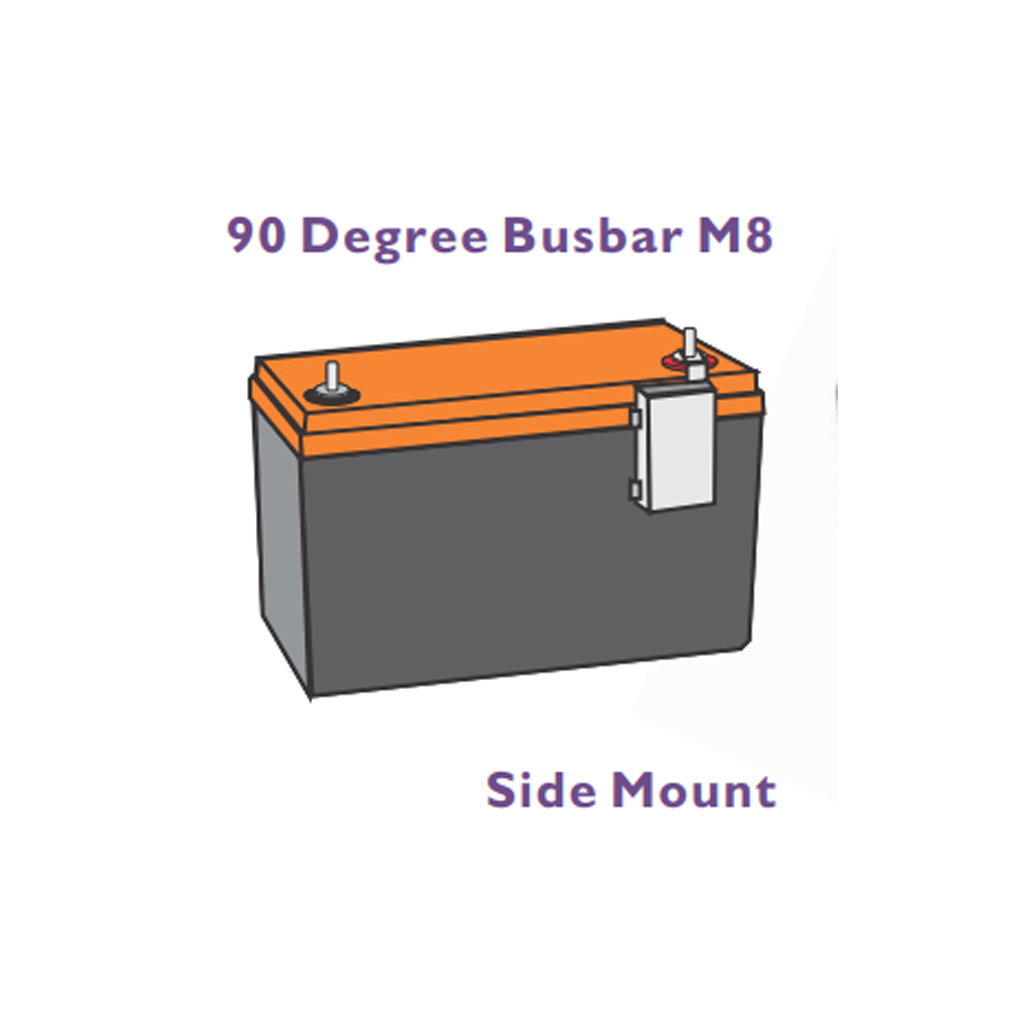

Angled busbar saves valuable bonnet space.

Cable feeds through the slots in housing

Small size with easy access durable clip on lid.

Includes 6 x M5 self locking nylon flanged nuts

** Fuses not included but we do sell seperately. Amperage 20 - 200

Made in Italy

MIA 3 Way Midi Fuse Housing & 90 Busbar

Suits up to 3 x Midi fuses 32Vdc

Includes cover and internal adhesive label.

Includes 90 copper-tin-plated busbar.

Angled busbar saves valuable bonnet space.

Cable feeds through the slots in housing

Small size with easy access durable clip on lid.

Includes 6 x M5 self locking nylon flanged nuts

** Fuses not included but we do sell seperately. Amperage 20 - 200

Made in Italy

MIA 3 Way Midi Fuse Housing & 90 Busbar

Voltage: 32VDC
Rating: 90A Max at 85 C
Hardware: Includes M5 flanged nuts.
Studs: M5 threaded zinc plated steel studs.
Flammability: UL94
Wire Size: 8mm to 35mm
Operating Temperature: - 0 C to +12 C
