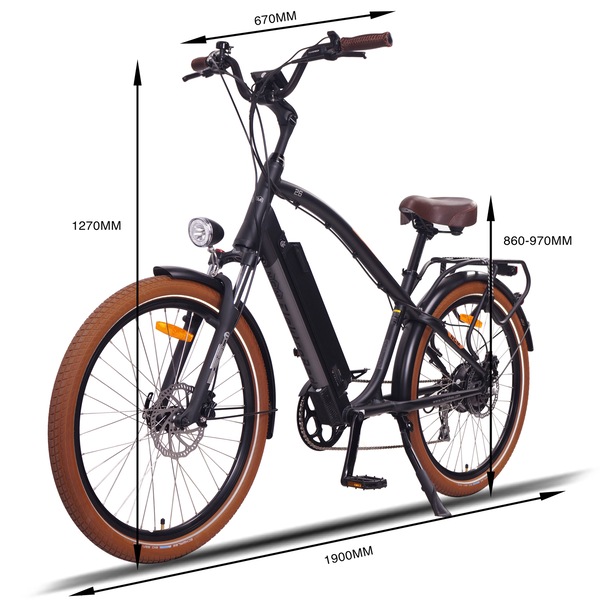

General Information

• Weight: 26”= 27kg
• Type: E-Cruising
• Wheel size: 26”
• Load capacity: Max. 125kg
• Maximum speed: 25km/h

Battery Information:

• Lithium-ion Battery
• Model: DEHAWK I5-4816H
• Ratings: DC 48V, 16Ah, 768WH

Electric parts

• Motor: Das-Kit, X15 Rear-drive motor, 48V 250W-500W, 25km/h
• Controller: Das-Kit, CT5-I5, 48V 15A

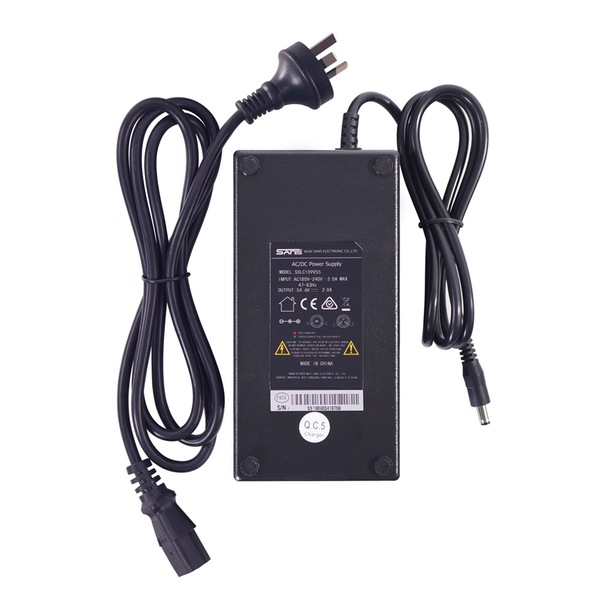

• Charger: 48V 2A included (round plug) DC483DE (EESS Number: E2022081360)

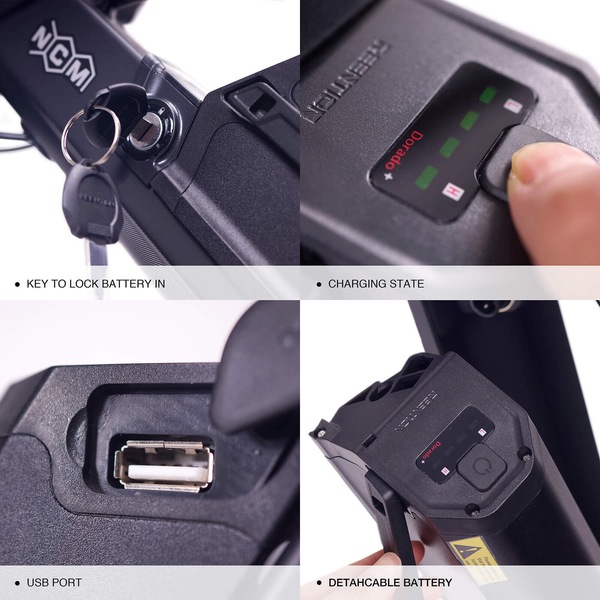

• Battery: DEHAWK I5-4816H,48V 16AH, 768WH, with USB port
• Average range: 70-150km depending on assistance level

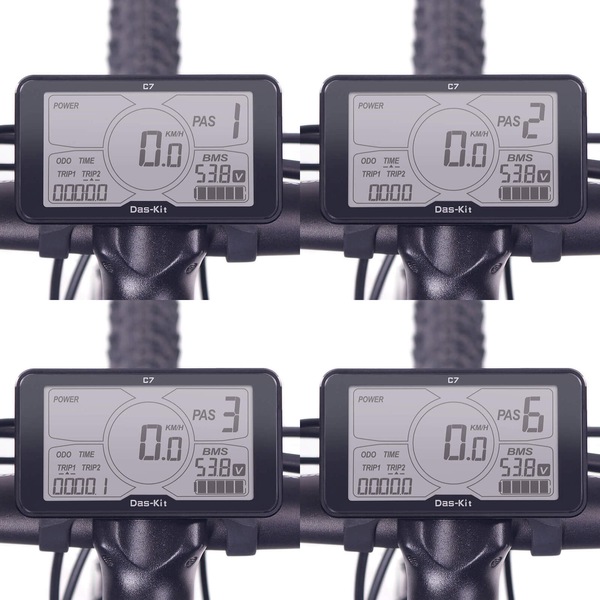

• Display: LCD Das-Kit C7 display with many functions, 6km/h walk assist

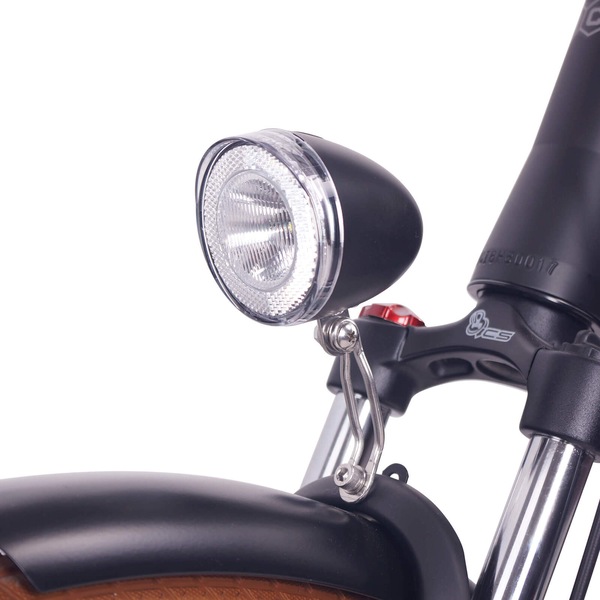

• Front/Rear Light: Spanninga Swing, 48V, 30 Lux Spanninga, Solo 2xAA

Bike parts

• Frame: Alu. 6061, 26"*480MM

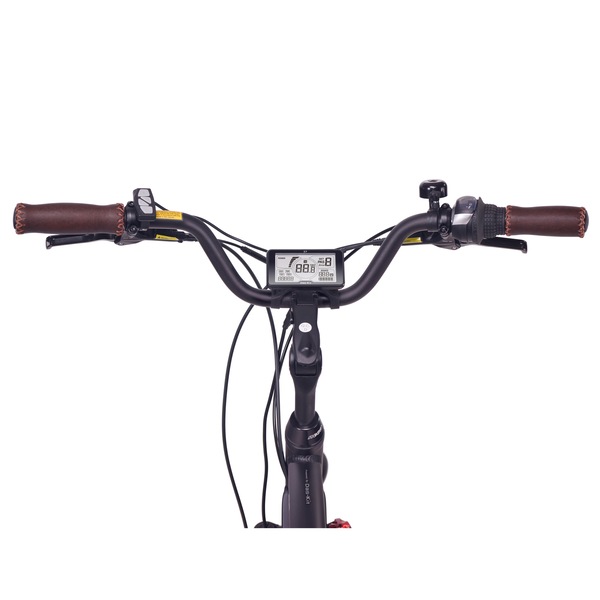

• Handelbar: Promax MA579 adjustable
• Fork: SR Suntour RST-NEON-600C (preload, lockout)
• Brake Levers: Tektro, with brake sensors on both sides

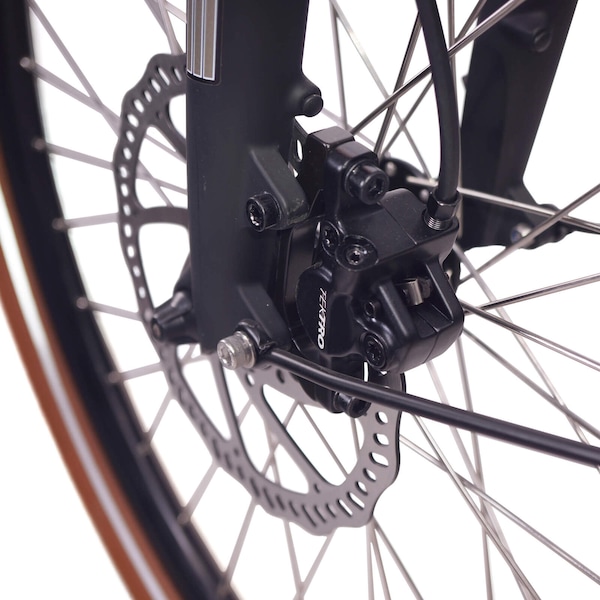

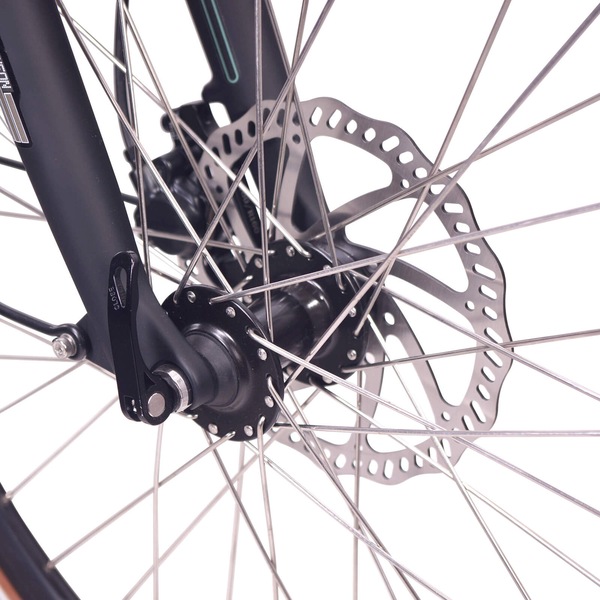

• Brakes F/R: Tektro hydraulic Disc Brakes
• Crank set: Prowheel, 46T (including chain guard)

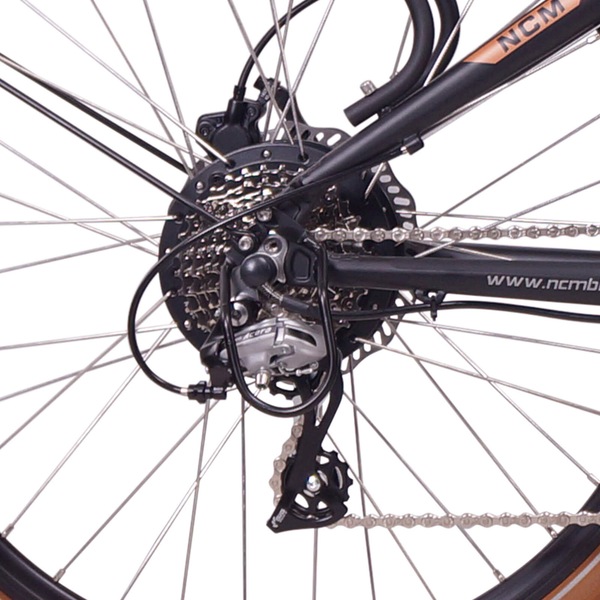

• Gear shift: Shimano, Acera M360, 8 speed
• Pinion: 8-speed screw ring, 11-32T
• Tyre: Schwalbe Swallow, Big Ben 26 "2.15
• Saddle: Selle Royal, extra wide, brown (imitation leather)
• Seatpost: Promax, Aluminum 30.4 * 300MM diameter
• Handles: Selle Royal, brown (imitation leather)
• Pedals: Wellgo, B087, black

Warranty

• Leon Cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• Leon Cycle provides 2 years warranty on the bike frame. For more warranty information visit our FAQs.
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

​​​​Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.​
