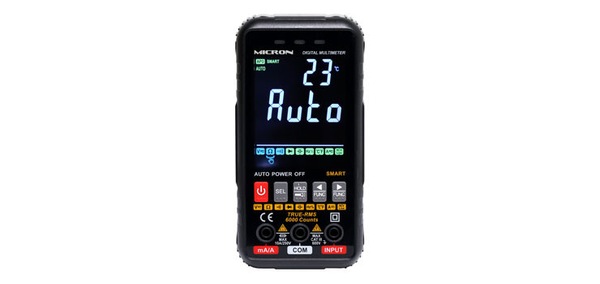

MICRON Autoranging True RMS Digital Multimeter with NCV

Image 1
Image 2
Limited Stock
$99

Collect 99 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

This compact true RMS digital multimeter provides in depth functionality for technicians troubleshooting devices and circuits. Its auto-ranging push button design simplifies operation and includes handy features such as test jack indicators to ensure you never plug a cable into the wrong socket. In addition it is capable of measuring, AC/DC voltage & current, resistance, continuity, capacitance, frequency/duty cycle, temperature and more!

A non-contact AC voltage detector is included providing a safe way to detect the presence of live AC wiring during testing. Cat III 600V protection rating with 5999 count easy read screen.

Includes probes, temperature sensor and carry case.

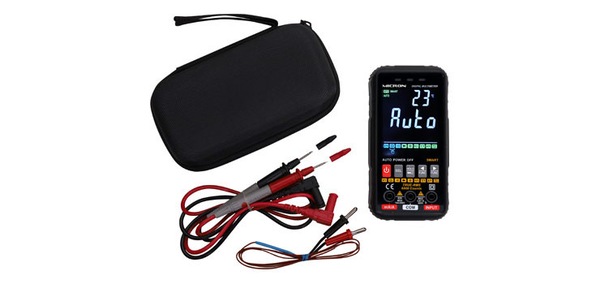

Kit Contents
1 x Multimeter
1x Test Lead Pair
1 x K-type probe
4 x 1.5V AAA Battery LR03
1 x Carry Case
1 x Manual


Features



  • True RMS Auto Range.

  • Large easy to read reverse backlit screen.

  • Simple push button operation.

  • Large multifunction display.

  • Indicates correct connection jacks.





    • Voltage DC: 600mV, 6V, 60V, 600V (0.5%+3d)

    • Voltage AC: 6V, 60V, 600V (1%+3d)

    • Current DC: 600mA, 6A, 10A (1,2%+3d)

    • Current AC: 600mA, 6A, 10A (1,2%+3d)

    • Capacitance: 6nF, 60nF, 600nF, 6uF, 60uF, 600uF (4%+5d), 6mF (5%+5d), 60mF (10%+10d)

    • Ohms: 600Ohm, 6KOhm, 60KOhm, 600kOhm, 6MOhm (1%+5d), 60MOhm (2%+10d)

    • Continuity: 50Ohm threshold, audible tone

    • Diode test: displays diode voltage drop, OC voltage 3.5V.

    • Duty cycle: 1-99% @ 250V RMS max (0.1%+2d)

    • Frequency: 6Hz - 10MHz (1%+3d)

    • Temperature: -40oC to 1000oC (2oC). - K type probe only.

    • Display: 3 5/6 digit, 5999 count, backlit

    • Protection: 10A 250V ceramic fuse 5x20

    • Batteries: Requires 4 x 1.5V AAA alkaline batteries

    • Dimensions: 73W x 27D x 144H mm



*Specifications are subject to change without notice.
