Microsemi Adaptec 2283400-R Single AEC-82885T SAS Expander, 28-int Port, 8-extPort,12Gb/s,SATA/SAS,PCIe x4, Low-Profile w/ Bracket [2283400-R]

Microsemi Adaptec 2283400-R Single AEC-82885T SAS Expander, 28-int Port, 8-extPort,12Gb/s,SATA/SAS,PCIe x4, Low-Profile w/ Bracket [2283400-R]


Microsemi Adaptec 2283400-R Single AEC-82885T SAS Expander, 28-int Port, 8-extPort,12Gb/s,SATA/SAS,PCIe x4, Low-Profile w/ Bracket

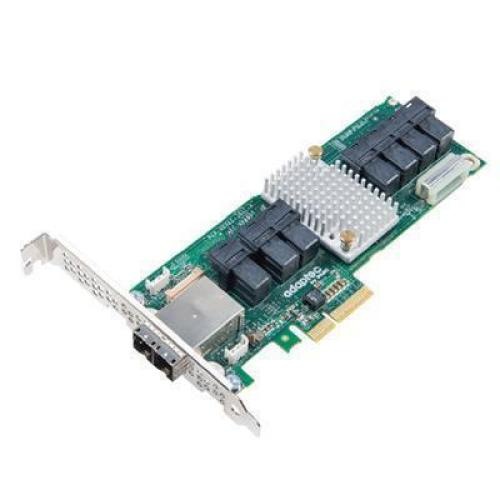

Microsemi Adaptec 2283400-R Single AEC-82885T SAS Expander
The 12Gb/s Adaptec 82885T SAS expander card offers a scalable connectivity / fan-out option for additional drives when used in conjunction with a SAS RAID adapter or SAS HBA. The 82885T SAS Expander Card offers 36 ports in a low-profile MD2 form factor with 28 internal ports for connection to a SAS adapter and/or SAS or SATA drives and 8 external ports for optional connections to external JBODs or a SAS adapter.
Flexibility of Configuration
The 82885T mounts internally to any available PCIe slot, away from the backplane, and features mini-SAS HD connectors out the top for added cabling flexibility in dense server environments. The 82885T enables a low cost drive expansion solution when mated with a RAID adapter or HBA. The expander draws power from the PCIe slot (requires 4 or more lanes), but there is no data transfer to the slot. Alternatively, power can also be supplied to the expander card through a standard 4-pin auxiliary power connector.
Enclosure Management Support
The 82885T supports SGPIO and SES2 enclosure management, allowing enclosure information to be routed from all daisy-chained 82885T cards to the HBA or RAID adapter. All device and slot mapping information is provided to the HBA or RAID adapter by the last 82885T card in the chain.
Universal Compatibility with Existing Storage Infrastructure
The 82885T is fully compatible with Adaptec Series 8,Series 7 and Series 6 12Gb/s and 6Gb/s RAID adapters and HBAs, allowing for a seamless integration and management within an end-to-end Adaptec solution. The 82885T is also compatible with 3rd party adapters and HBAs and has also been tested for interoperability with a wide variety of SAS and SATA HDDs and SSDs.
Highlights
- 36 ports (28 internal, 8 external)
- 12 Gb/s throughput at each port
- Low-profile MD2 form factor
- Backwards compatibility to 6Gb/s SAS or SATA devices
- Complete portfolio of mini-SAS HD cables available
Benefits
Low cost solution ideal for density optimized servers requiring direct connectivity to up to 28 internal ports for a SAS adapter and/or SATA HDDs and SSDs. Supports 12Gb/s data rates and is backward compatible to 6Gb/s.
Key Differentiators
- 36 ports (28 internal, 8 external) in low-profile MD2 form factor
- Enables both internal and external connectivity
- Backwards compatible to 6Gb/s for legacy 6G SAS or SATA devices
- Complete portfolio of mini-SAS HD cables available

Customer Needs
High I/O transaction and high bandwidth processing; solutions that reduce energy consumption and maintenance costs; low profile form factor.
Management Utilities
Adaptec maxView Storage Manager
PCIe Slot Power
PCIe x4 interface
Auxiliary Power Connector
Yes
Data Transfer Rate
12 Gb/s per port
6 Gb/s per port
Form Factor
PCIe (MD2)
Package Contents
Adaptec SAS Expander 82885T Card
Physical Size
2.535"H x 6.6"L (64mm x 167mm)
Operating Temperature
0°C to 55°C* (with 200 LFM airflow)
Note: Please install this card only into server or PC chassis with recommended airflow (200 LFM). For maximum heat sink efficiency, the air should bypass the card horizontally.
Operating Current
1.34A @ 12 VDC
Regulatory Certification
CE, FCC, UL, C-tick, VCCI, KCC, CNS
Environmental Compliance
RoHS
Mean Time Before Failure (MTBF)
1,000,000 hours at 40°C
Warranty
3 years
- MPN: 2283400-R
GTIN: 760884157350
