Littlefuse Midi Fuse MDB Power Distribution Module Up to 3 Fuses

The Littelfuse MDB series is an internally bussed, water-proof and dust-proof fuse holder developed for high current loads, and harsh conditions.

The unit is wellsuited for near-the-battery applications and can be mounted in exposed locations to fit your design.

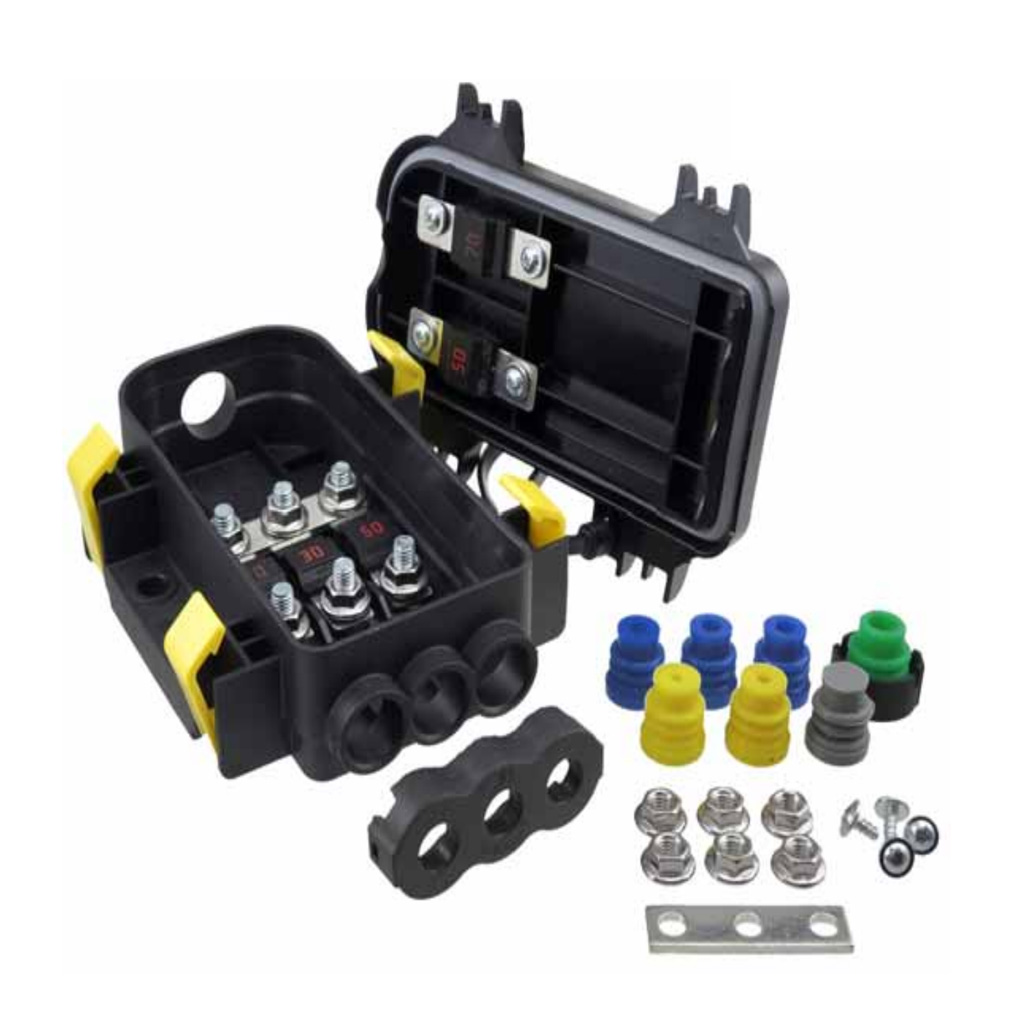

PDM Module kit includes;

1 x Base with tethered cover & seal.

1 x Busbar power up to 3 fuses from a single input cable.

6 x Nuts to secure up to 3 Midi fuses.

6 x Cable seals of assorted sizes.

1 x Cavity plug (required if you only install 2 x Midi fuses).

2 x Cable seal caps to secure cable seals into unit.

4 x Screws to secure 2 spare fuses to inside cover.

1 x Instruction sheet.

Module kit does not include Midi Fuses

Made in the USA

Littlefuse Midi Fuse MDB Power Distribution Module Up to 3 Fuses

The Littelfuse MDB series is an internally bussed, water-proof and dust-proof fuse holder developed for high current loads, and harsh conditions.

The unit is wellsuited for near-the-battery applications and can be mounted in exposed locations to fit your design.

PDM Module kit includes;

1 x Base with tethered cover & seal.

1 x Busbar power up to 3 fuses from a single input cable.

6 x Nuts to secure up to 3 Midi fuses.

6 x Cable seals of assorted sizes.

1 x Cavity plug (required if you only install 2 x Midi fuses).

2 x Cable seal caps to secure cable seals into unit.

4 x Screws to secure 2 spare fuses to inside cover.

1 x Instruction sheet.

Module kit does not include Midi Fuses

Made in the USA

Littlefuse Midi Fuse MDB Power Distribution Module Up to 3 Fuses

The Littelfuse MDB series is an internally bussed, water-proof and dust-proof fuse holder developed for high current loads, and harsh conditions.

The unit is wellsuited for near-the-battery applications and can be mounted in exposed locations to fit your design.

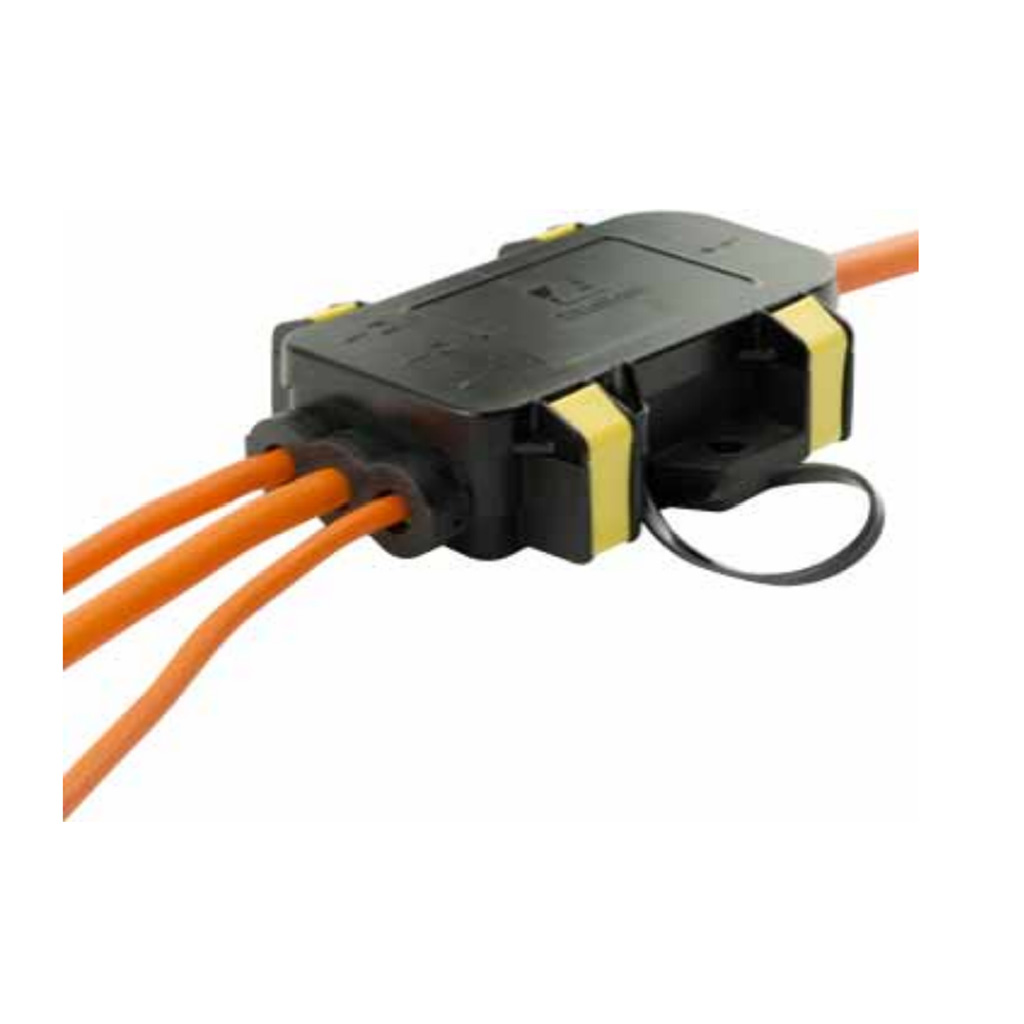

A single input power cable connects to a 3 pole busbar to feed either 2 or 3 Midi fuse protected output cables.

Eliminates splices multiple fuse holders. In addition, 2 spare Midi fuses can be & fitted to the inside of the cover using the included screws.

Very high IP Rating.

Voltage: 58VDC max.

Maximum Total Current: 200A

Wire Size: 16 or 25mm2 (input cable), 6 to 16mm2 (output cables)

Temperature Rating: -40 C to + 85 C.

Body & Cover: UL 94-V0.

IP69K Ingress Protection Rating: IP67 when cover, cable seals, & caps are installed.

Cables must not exceed the minimum bend radius advised in the included instruction sheet to ensure seal integrity.

Cavity Plug: Included cavity plug must be fitted if using only 2 x Midi fuses.

Mounting: Surface mount using 3 fixing holes (M6 or 0.25").

Suit Fuse: Midi fuses.

** Does not include Midi Fuses...
