MikroTik RB5009UG+S+IN Ultimate Heavy Duty Home Router USB 3.0 - 1G & 2.5G Ethernet - 10G SFP+ Cage [RB5009UG+S+IN]

Image 1
Hurry! 2 items left!
$439.06

Collect 439 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

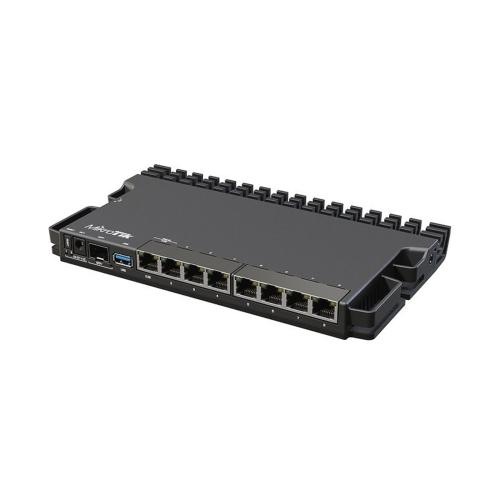

MikroTik RB5009UG+S+IN Ultimate Heavy Duty Home Router USB 3.0 - 1G & 2.5G Ethernet - 10G SFP+ Cage

MIKROTIK RB5009UG+S+IN COMPACT ROUTER WITH 7 X 1GB, 1 X 2.5GB AND 1 X 10GB SFP+
MikroTik RB5009UG+S+IN, the ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space!
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board - so the case acts as a massive heat-sink!
The RB5009 boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
https://youtu.be/c5kBvwGqGws
Features
- RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1, b) DC Jack, c) 2-pin terminal on the side'
- Mount up to 4 Routers in a 1U Rackspace with the K-79
- No Fans - Passive cooling with massive heat-sink

Architecture
ARM 64bit
CPU
88F7040
CPU core count
4
CPU nominal frequency
350-1400 (auto) MHz
RouterOS license
5
Operating System
RouterOS (v7 only)
Size of RAM
1 GB
Storage size
1 GB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 60°C
10/100/1000 Ethernet ports
7
Number of 2.5G Ethernet ports
1
SFP+ ports
1
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1
CPU temperature monitor
Yes
Number of DC inputs
3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage
24-57 V
2-pin terminal input Voltage
24-57 V
Max power consumption
20 W
Max power consumption without attachments
14 W
FAN count
Passive
PoE in
802.3af/at
PoE in input Voltage
24-57 V
Certification
CE, EAC, ROHS
- MPN: RB5009UG+S+IN

GTIN: 4752224007148
