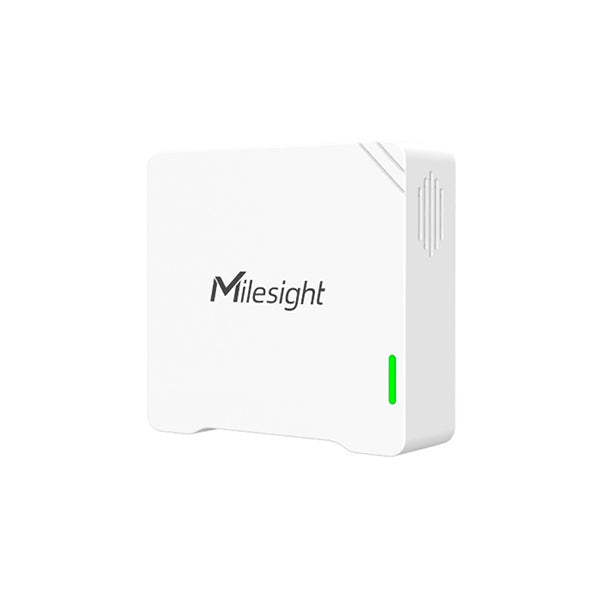

Milesight Am103L Indoor Ambience Monitoring Lorawan Iot Sensor

Image 1
Limited Stock
$559.95

Collect 559 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Crazy Sales Australia
Secure ways to pay at checkout

MILESIGHT AM103L INDOOR AMBIENCE MONITORING AU915/AS923 LORAWAN IOT SENSOR

The milesight am103l is a compact indoor ambience monitoring lorawan au915/as923 iot sensor for measurement of temperature, humidity and co2. The am103l is widely used for office, store, classroom, hospital, etc.

The sensor data is transmitted using lorawan®. With this low-power technology, am103 can work for more than 3 years with 2 replaceable batteries. Combining with milesight lorawan® gateway and milesight iot cloud solution, users can manage all sensor data remotely. The am103l has no screen, which gives this device a longer battery life.

FEATURES

Integrated with multiple sensors: humidity, temperature, CO2

Visual data and clear emoticons to understand the comfort level easily via E-Ink Screen

Equipped with traffic light LED to indicate device status and threshold alarms

More than 3 years battery life

Compliant with standard LoRaWAN® gateways and network servers

Built-in NFC for easy configuration

SPECIFICATIONS

Technology: LoRaWAN

Frequency: AU915/AS923-1,2,3,4

Tx Power: 22 dBm (915 MHz)

Sensitivity: -137dBm @300bps

Mode: OTAA/ABP Class A

Temperature Range: -20°C to + 70°C

Accuracy: 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C)

Resolution: 0.1°C

Humidity Range: 0% to 100% RH

Accuracy: 10% to 90% RH (± 3%), below 10% and above 90% RH (± 5%)

Resolution: 0.5% RH

Carbon Dioxide (CO2) Range: 400 to 5000 ppm

Accuracy: ± (30 ppm + 3 % of reading)

Resolution: 1 ppm

Display: AM103: 2.13-inch Black & White E-Ink Screen, AM103L: No Display

Button: 1 × Power Button

LED: 1 × Traffic Light Status Indicator

Configuration: Mobile App via NFC

Power Supply: 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries

Operating Temperature: -20°C to +60°C

Relative Humidity: 0% to 95% (non-condensing)

Ingress Protection: IP30

Dimension: 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)

Installation: Wall Mounting

PACKAGE CONTENTS

1 x Milesight Am103L Indoor Ambience Monitoring Lorawan Iot Sensor

2 x Batteries

1 x QSG

1 x Mounting pack

1 x Mounting Sticker

SKU: AM103L-915M
