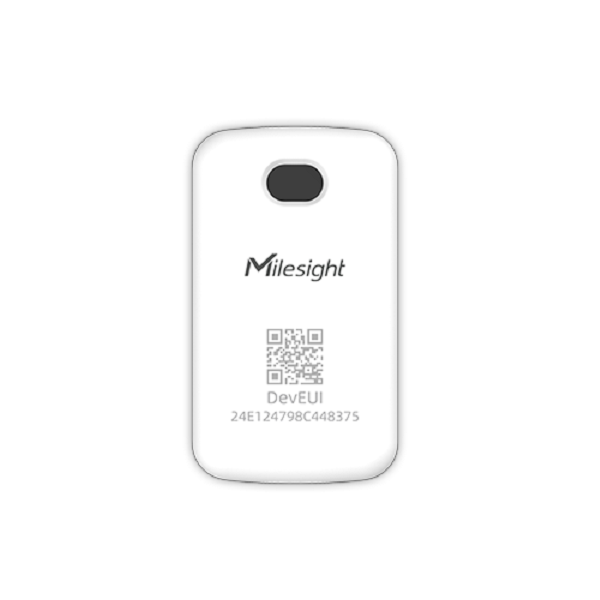

MILESIGHT LORAWAN AS923/AU915 WS201 SMART FILL LEVEL MONITORING IOT SENSOR

Milesight LoRaWAN AS923/AU915 WS201 Smart Fill Level Monitoring IoT Sensor. WS201 is a wireless sensor that utilizes ToF technology to monitor the fill level of containers with high accuracy. Working with Milesight LoRaWAN® gateway and Milesight IoT Cloud, WS201 allows users to remotely monitor and manage container fill levels and status in real-time.

WS201 utilizes advanced ToF (Time of Flight) technology for precise distance measurement, ensuring accurate detection of toilet paper fill levels. Additionally, it has a minimal blind zone of only 1 cm. Optimize alerts and notifications for paper supply by implementing customizable threshold levels for greater flexibility.

Perfect for smart buildings, smart city deployments or industrial use-cases.

FEATURES

Suitable for Diverse Toilet Paper Dispenser

Accurate Fill Level Monitoring with ToF Technology

Up to 2 Years Battery Life with One Coin Cell Battery

Wireless Deployment and Easy Maintenance

Ultra-thin body design

DevEUI QR code on the front for quick scanning

Buckle-open lid design for easy maintenance

Shelf Stock Level Monitoring

Paper Towel Level Monitoring

SPECIFICATIONS

Manufacturer's Code: WS201-915M

Protocol: LoRaWAN

Frequency: AU915/AS923

Tx Power: 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)

Sensitivity: -132dBm@300bps

Mode: OTAA/ABP Class A

ToF FoV: 25 °

FoV Accuracy: ± 5 °

Detection Range: 1 ~ 55 cm

Detection Accuracy: ± 1cm

Detection Resolution: 1mm (1.0 - 5.0cm), 2mm (15.0 - 35.0cm), 3mm (35.0 - 55.0cm), X =

Detection Distance

Button: 1 × Reset Button (Internal)

LED Indicator: 1 × Indicator (Internal)

Configuration: Mobile App (via NFC)

Power Supply: 1 × 590mAh CR2450 Lithium Battery

Battery Life: Up to 2 Years

Operating Temperature: -10°C ~ +60°C

Relative Humidity: ~ 95% (Non-condensing)

Color & Material: White, ABS + PC (Flame Retardant)

Ingress Protection: IP30

Dimension: 66 × 38 × 12 mm (2.60 × 1.50 × 0.47 in)

Installation: On the flat surfaces with 3M tapes

PACKAGE CONTENTS

1 x Milesight Lorawan As923 Au915 Smart Fill Level Monitoring Iot Sensor
1 x Sensor
1 x QSG
1 x Mounting Screws
1 x Fixing screw

SKU: WS201-915M
