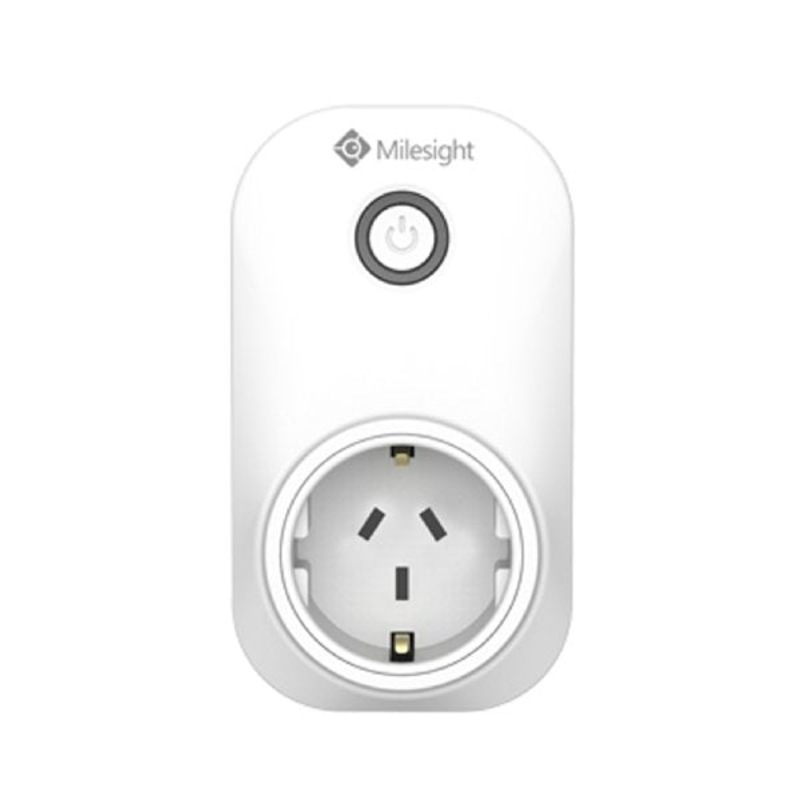

MILESIGHT LORAWAN AS923 PORTABLE SMART SOCKET

The Milesight WS523 is a LoRaWAN based smart portable socket for monitoring and control of electrical appliances. Adopting most of international socket standards, WS52x can be used for turning electrical devices on and off locally or remotely and measuring power consumption data of things plugged into it. It can even send overcurrent alarms.

Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, the WS523 can be monitored and controlled via webpage or mobile App remotely and triggered by other Milesight sensors.

FEATURES

Plug and play without any wiring

Turn devices on/off and create on/off schedules remotely

Collect current, voltage, electrical consumption with support for overload protection

Ultra-wide-distance wireless transmission up to line of sight of 15 km

Equipped with NFC for one touch configuration and supports card emulation mode

Functions well with standard LoRaWAN® gateways and network servers

Compliant with Milesight IoT Cloud

SPECIFICATIONS

Manufacturer's Code: WS523-10A-AU-915M

Frequency: AU915/AS923

Tx Power: 22dBm

Sensitivity: -137dBm

Mode: OTAA/ABP Class C

Socket & Plug Type: AU

Operating Voltage: 100~250 VAC, 50~60 Hz

Max Load Capacity: 10A (16A Optional), 250 VAC

Measurement: Voltage(VAC), Current(A), Power Factor(%), Power Meter(kWh)

Software Configuration: NFC

Power Control: Button or Remote Control

Advanced Features: Schedule Switch, Button Lock, Overcurrent Protection/Alarm

LED Indicator: 1

Button: ON/OFF, Reset

Material: White Polycarbonate

Operating Temperature: -10°C to +60°C

Relative Humidity: 10% to 90% (non-condensing)

Dimensions: 110 × 62 × 35 mm

PACKAGE CONTENTS

1 x Milesight Lorawan As923 Portable Smart Socket
1 x QSG

SKU: WS523-10A-AU-915M

Estimated Delivery Time Frame:6 - 10 Business Days
